Power Steering: Notes

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

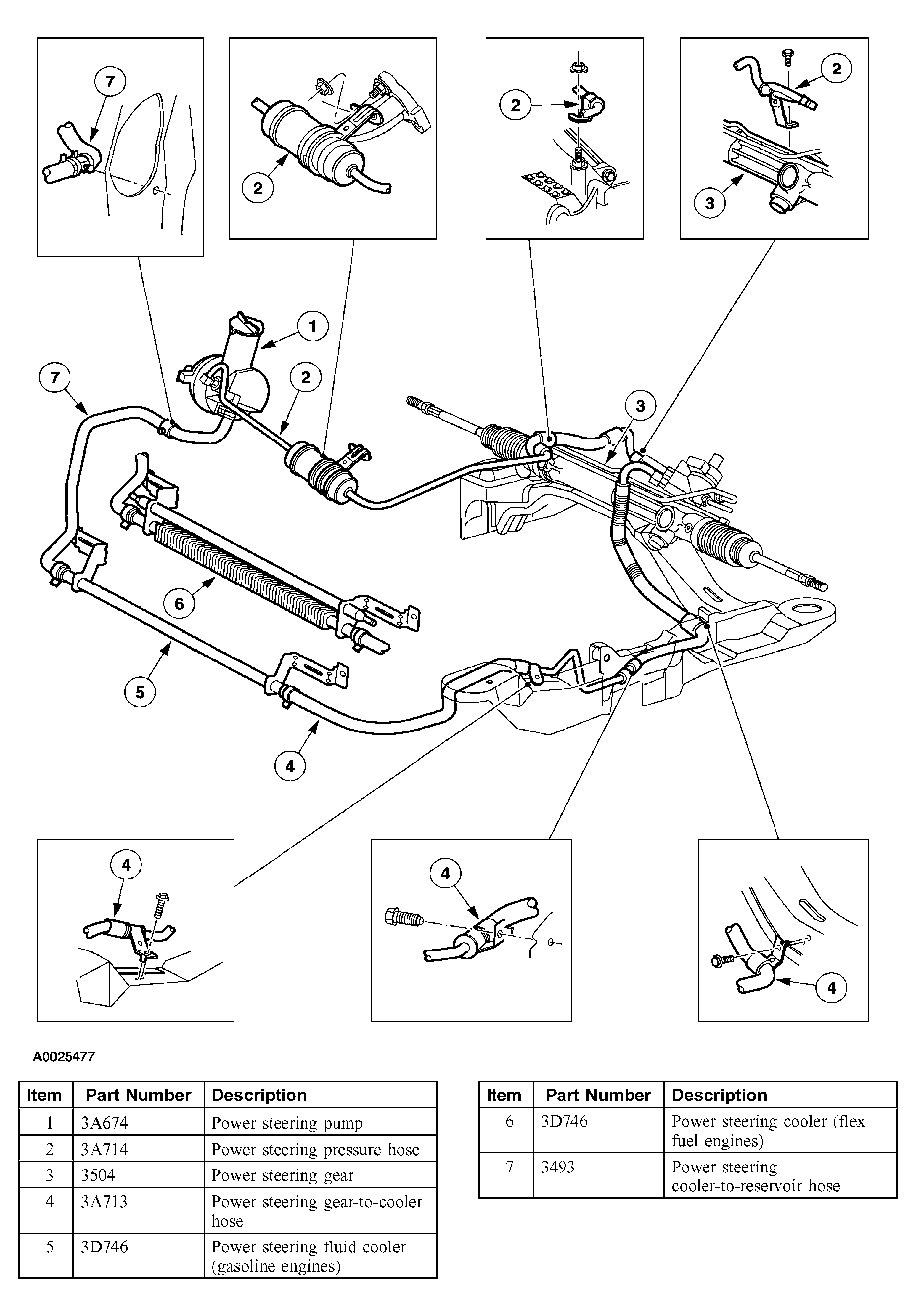

System View-3.0L 2V Engine (CII Pump)

Fig 1: Locating Power Steering Components

Courtesy of FORD MOTOR CO.

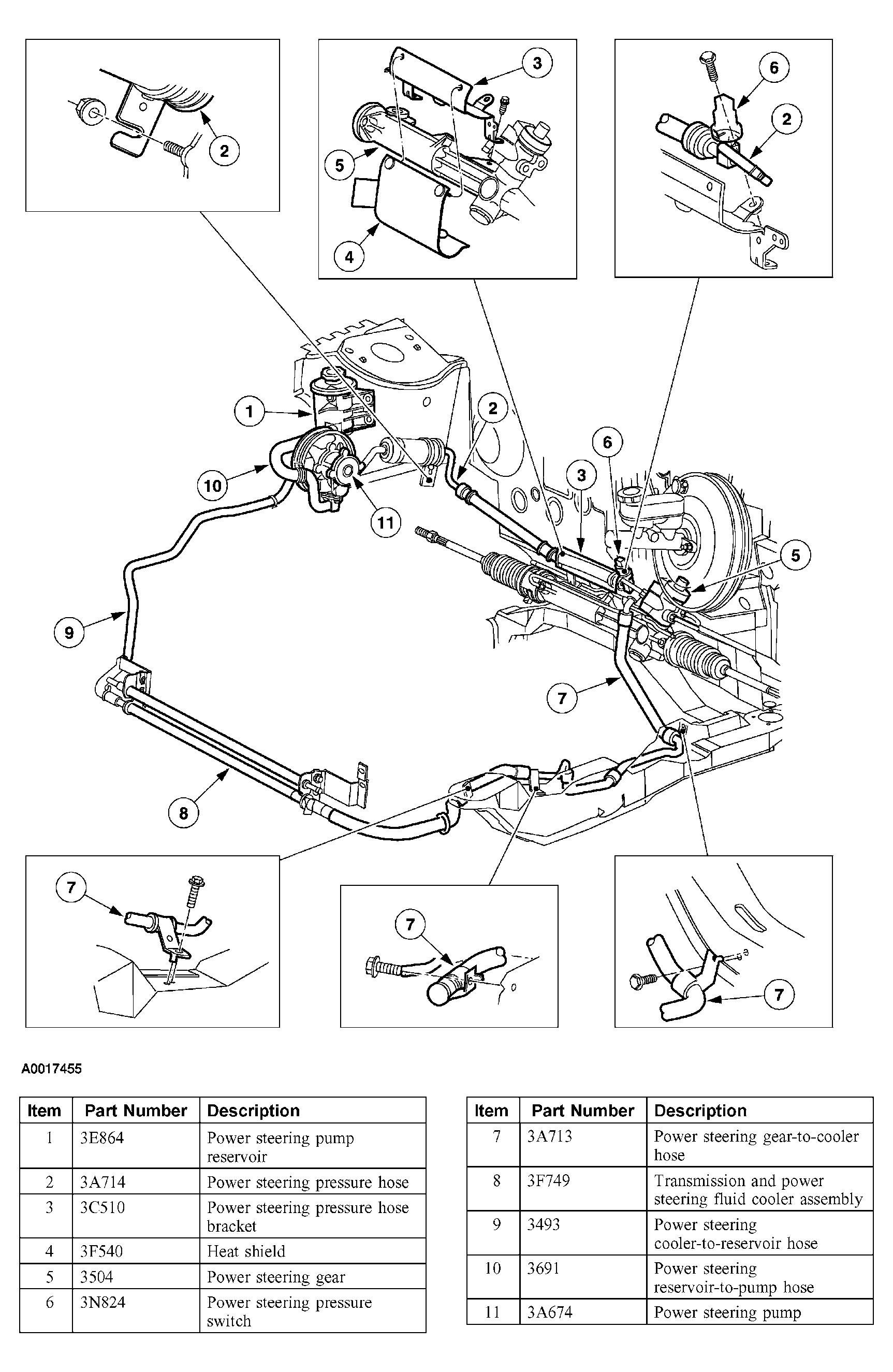

System View-3.0L 4V Engine (CIII Pump)

Fig 2: Identifying System View-3.0L 4V Engine Components

Courtesy of FORD MOTOR CO.

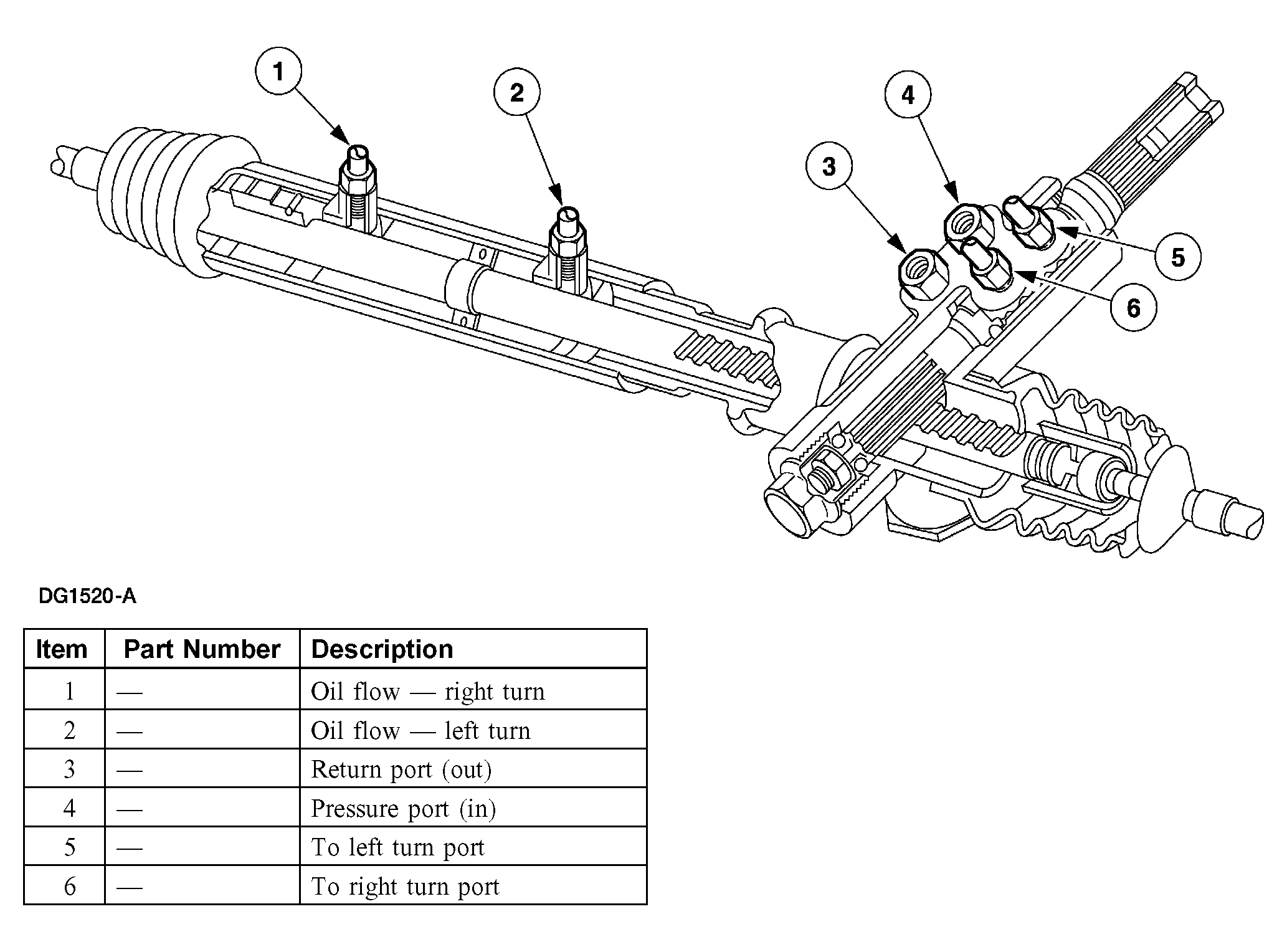

Steering Gear (Typical)

Fig 3: Identifying Steering Gear Components

Courtesy of FORD MOTOR CO.

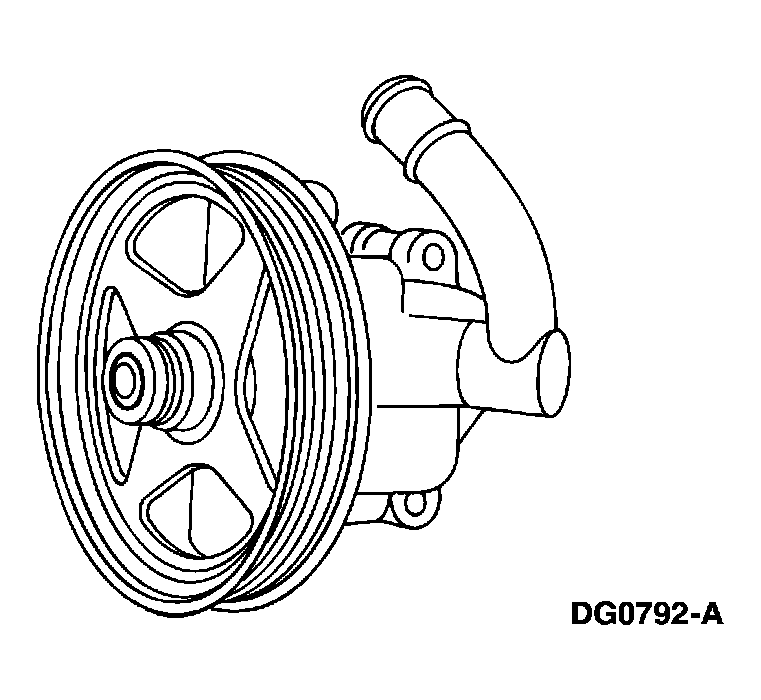

Power Steering Pump (CII)

Fig 4: Identifying Power Steering Pump (CII)

Courtesy of FORD MOTOR CO.

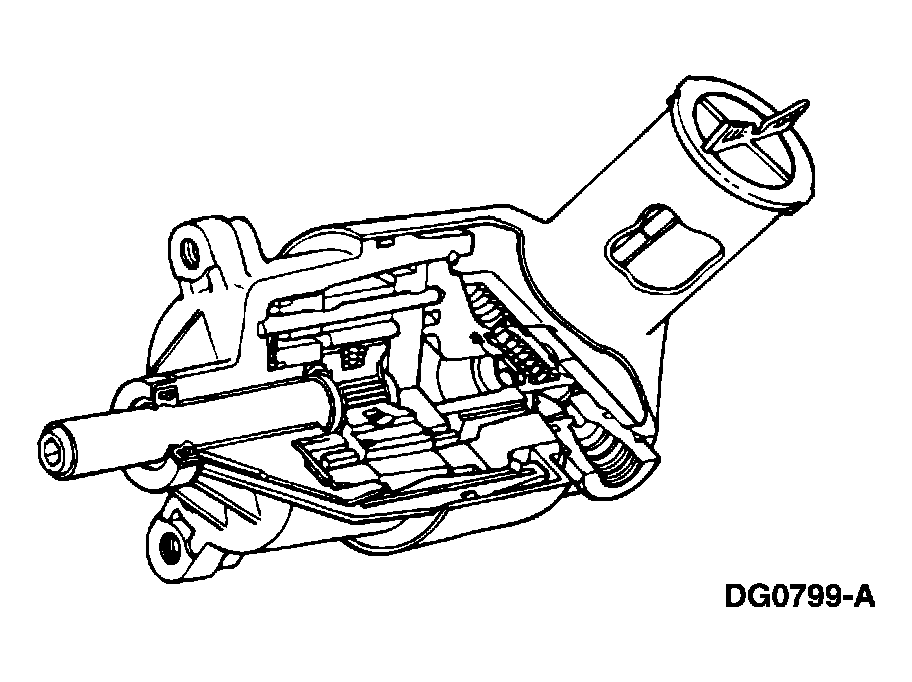

Power Steering Pump (CIII)

Fig 5: Identifying Power Steering Pump (CIII)

Courtesy of FORD MOTOR CO.
