Restraints Control Module (RCM): Removal

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: The restraints control module (RCM) orientation is critical for correct air bag supplemental restraint system (SRS) operation. If a vehicle equipped with an SRS system has been involved in a collision in which the center tunnel area has been damaged, inspect the mounting and bracket for deformation. If damaged, a new RCM must be installed whether or not the air bags have deployed. In addition, make sure the area of the RCM mounting is restored to its original condition.
WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage can result.
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: When installing a new restraints control module (RCM), always make sure the correct RCM is being installed. If an incorrect RCM is installed, erroneous DTCs will result.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
  1. Depower the system. For additional information, Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
  2. Remove the right hand side restraints control module (RCM) retaining bolts.
    1. Position the carpet back at the right hand side of the center tunnel area under the instrument panel (I/P).
    2. Remove the bolts.

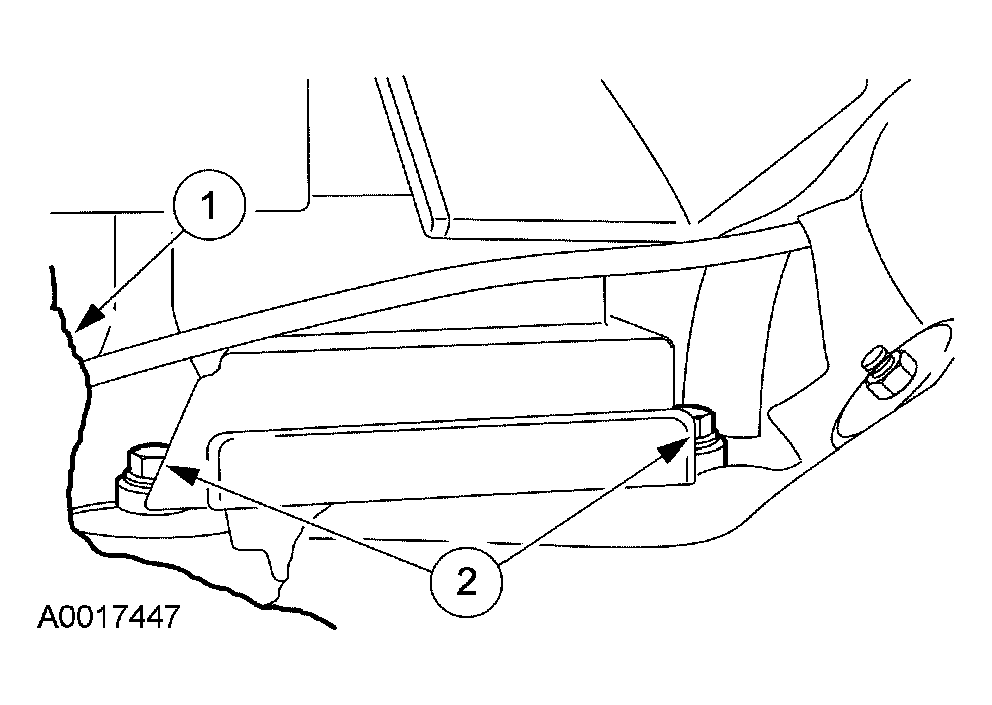

    Fig 1: Removing Right Hand Side Restraints Control Module Retaining Bolts
    G03959628Courtesy of FORD MOTOR CO.
  3. Position the carpet back at the left hand side of the center tunnel area under the instrument panel (I/P).
  4. Disconnect the large RCM electrical connector.
    1. Pinch the thumb tab and pivot the connector position assurance lever all the way back until it stops.
    2. Pull out and disconnect the RCM electrical connector.

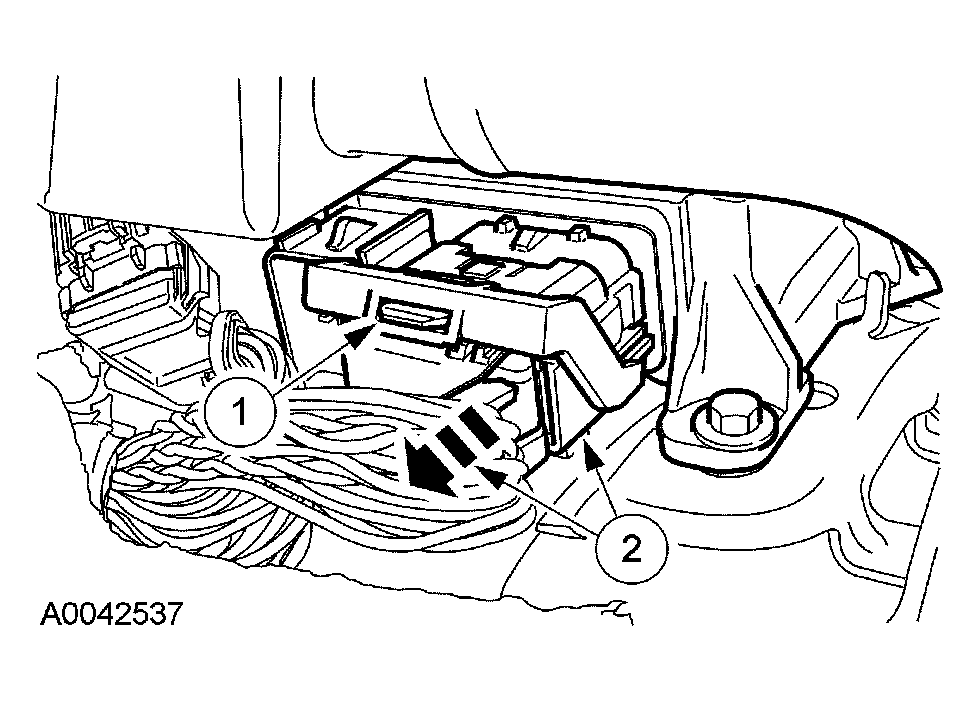

    Fig 2: Disconnecting Large RCM Electrical Connector
    G03959629Courtesy of FORD MOTOR CO.
  5. Remove the RCM.
    1. Pull out and remove the electrical connector locking wedge.
    2. Push down to release the retaining tab.
    3. While releasing the retaining tab, pull out and disconnect the small RCM electrical connector.
    4. Remove the bolt.
    5. Remove the RCM.

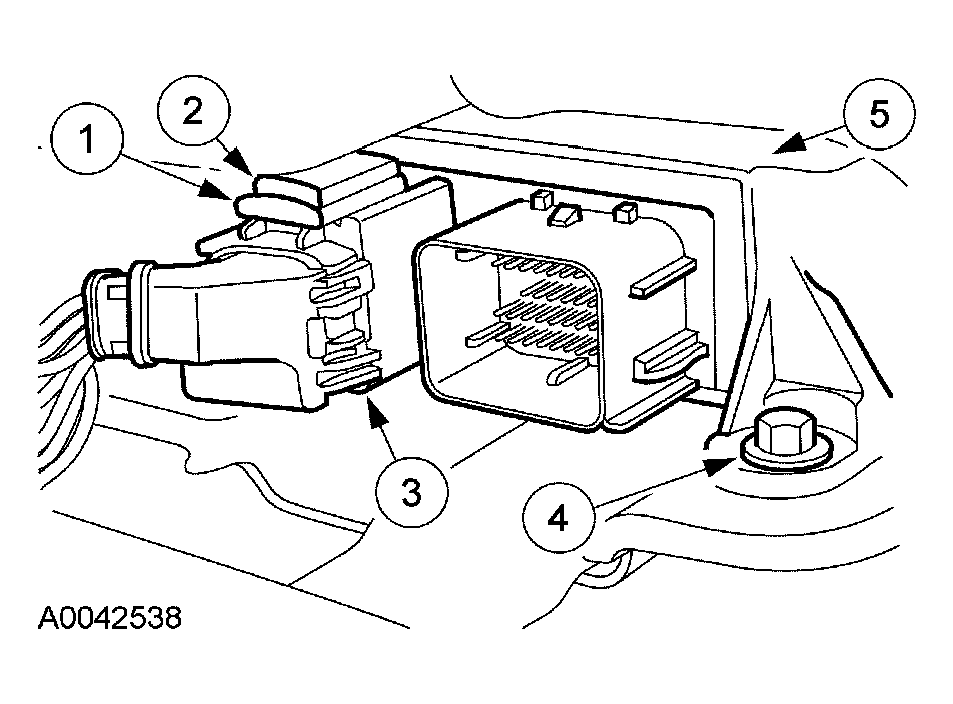

Fig 3: Removing Restraints Control Module
G03959630Courtesy of FORD MOTOR CO.
