Speed Control Deactivator Switch: Installation

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Release the plunger lock (if equipped).
- Turn the lock knob counterclockwise until first click is felt.

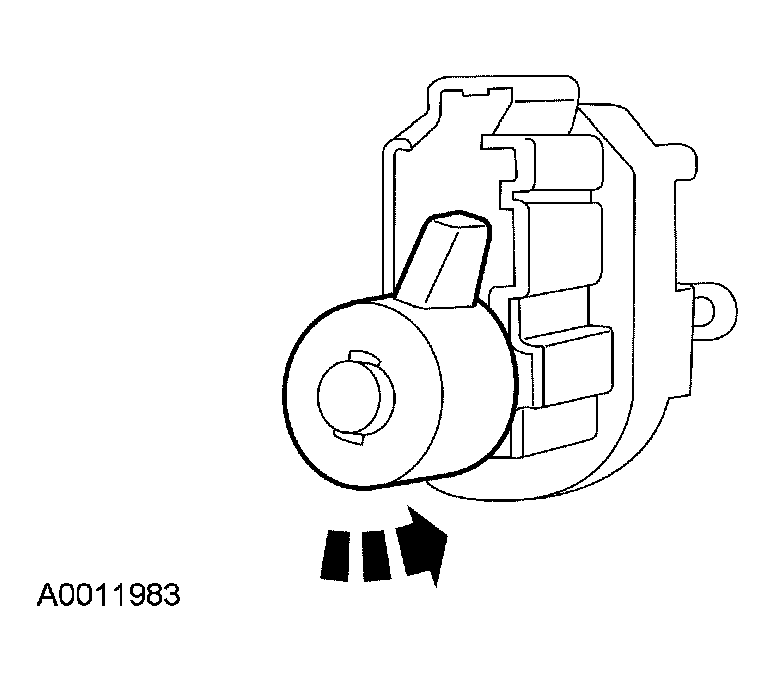

Fig 1: Releasing Plunger Lock
Courtesy of FORD MOTOR CO.
Fully depress the brake pedal.
Install the deactivator switch.
1. Position the deactivator switch in the bracket and rotate clockwise 45 degrees.
2. Connect the electrical connector.

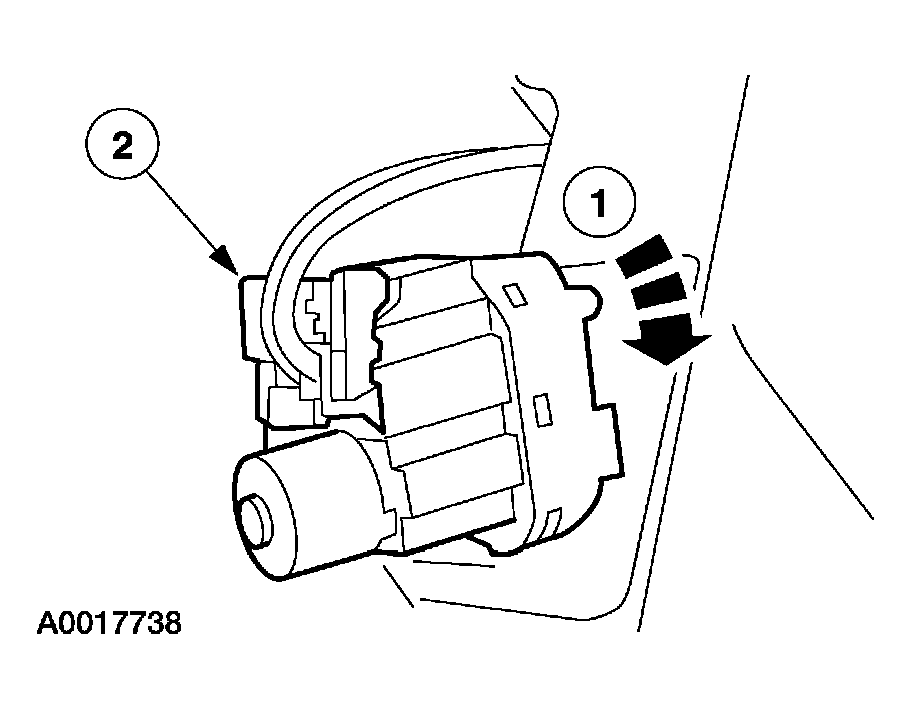

Fig 2: Installing Deactivator Switch
Courtesy of FORD MOTOR CO.

Vehicles equipped with locking tab

NOTE: There should be an extra click heard when tugging on the brake pedal.

Slowly release the brake pedal and tug moderately once the pedal reaches the rest position.
