Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the speed control switches.
- Use an appropriate tool to remove the switch from the steering wheel.

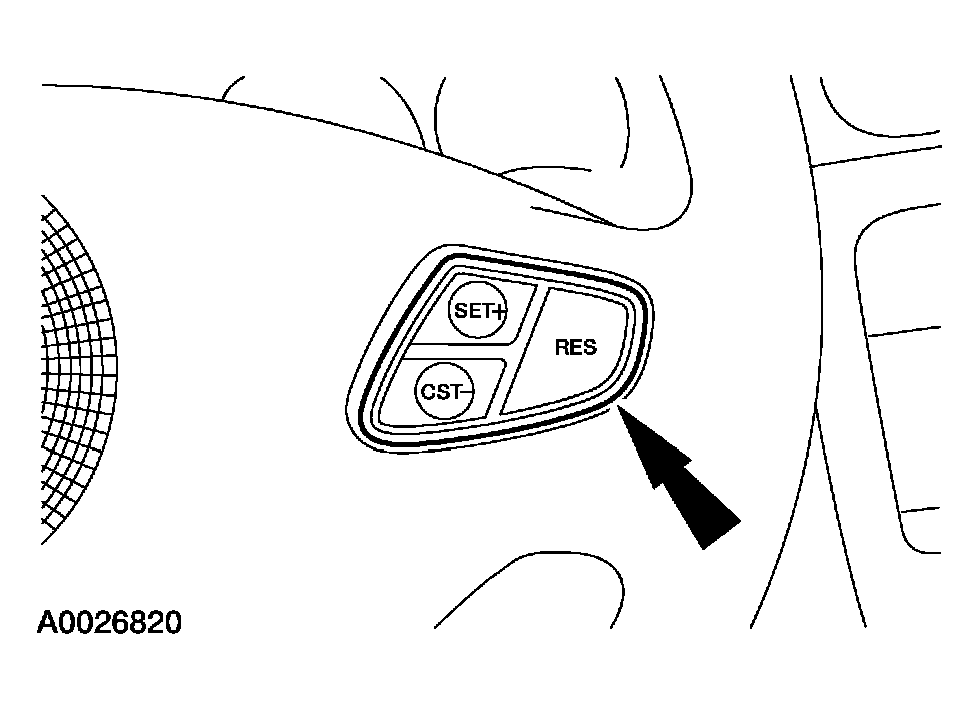

Fig 1: Removing Speed Control Switches
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.

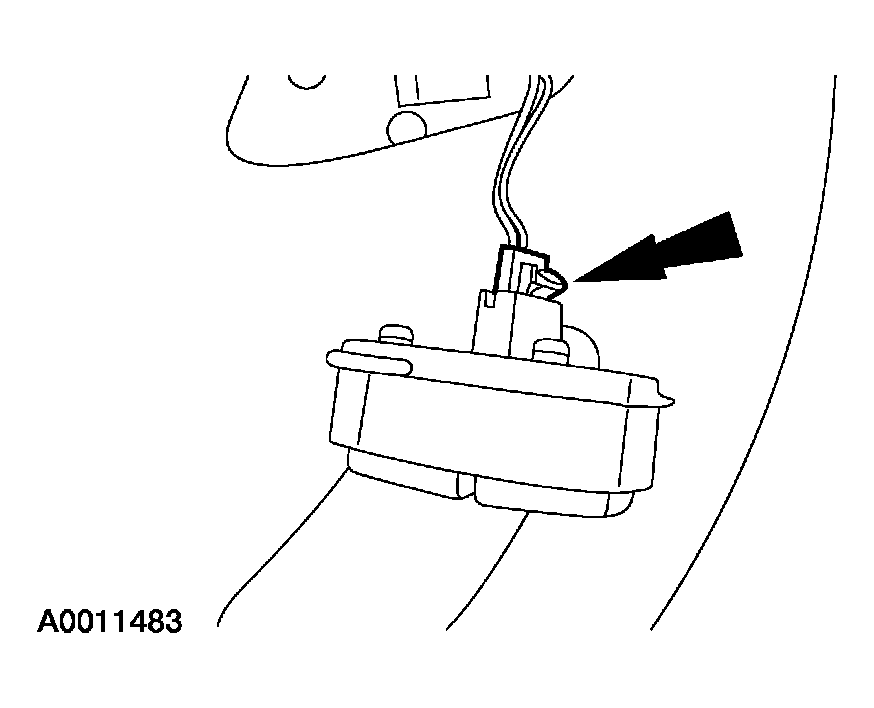

Fig 2: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
