Special Tool(s)

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL DESCRIPTION

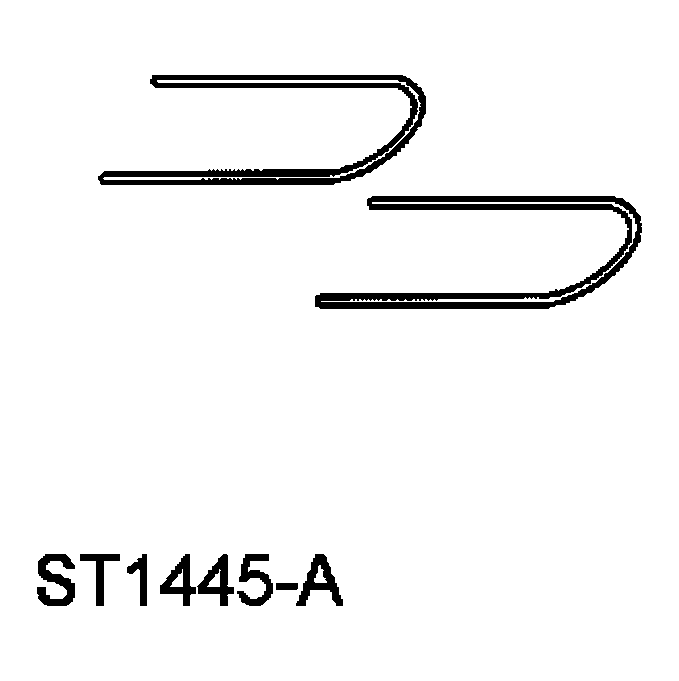

Radio Removing Tool 415-001 (T87P-19061-A)

All vehicles

Using the special tool, pull out the integrated control panel (18C858).

Fig 1: Pulling Out Integrated Control Panel
Courtesy of FORD MOTOR CO.

Vehicles with manual climate control
Label and disconnect the electrical connectors. Remove the integrated control panel.

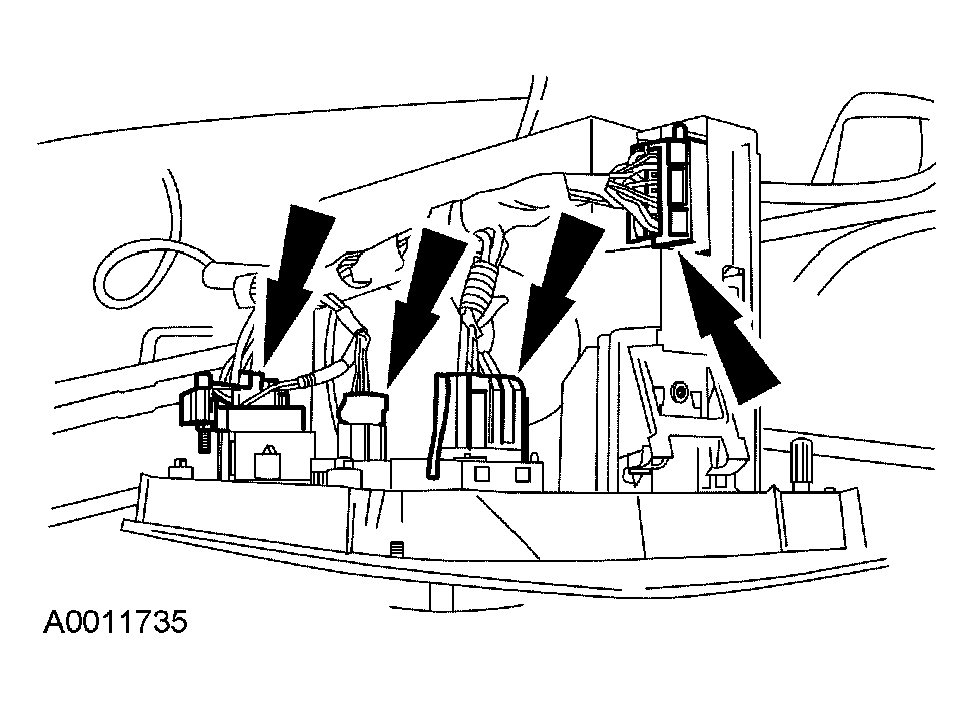

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.

Vehicles with electronic automatic temperature control (EATC)
Label and disconnect the electrical connectors and the in-car temperature sensor hose (19D888). Remove the integrated control panel.

Fig 3: Removing Integrated Control Panel
Courtesy of FORD MOTOR CO.

All vehicles
To install, reverse the removal procedure.
