Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the integrated control panel (18C858). For additional information, refer to CLIMATE CONTROL ASSEMBLY .
Remove the knob (18519).

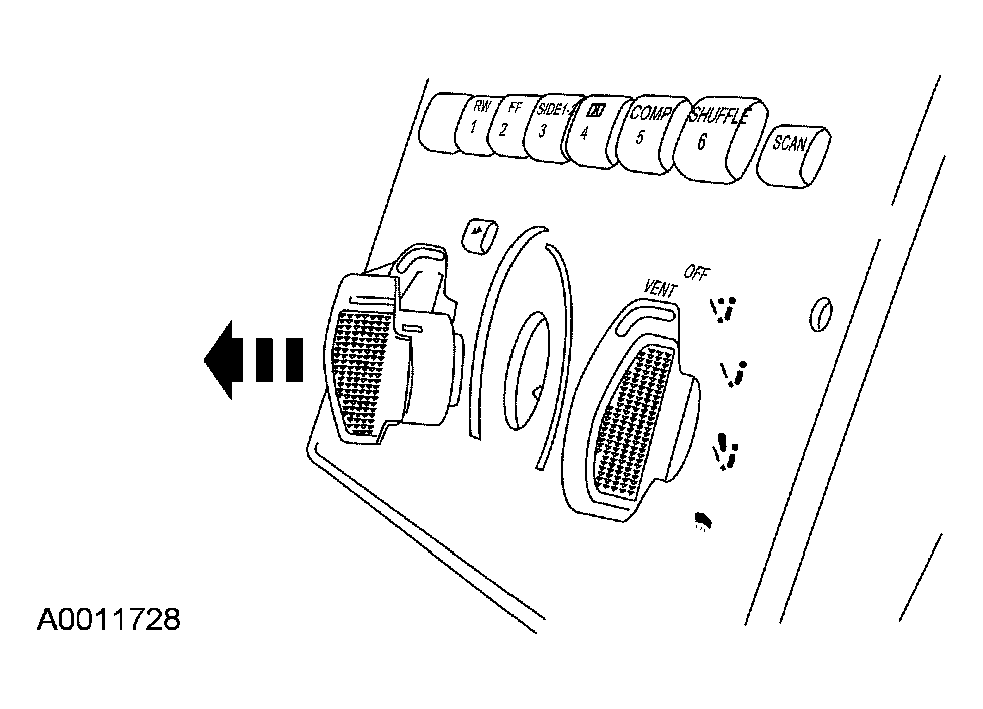

Fig 1: Removing Knob
Courtesy of FORD MOTOR CO.
Remove the screw. Rotating the temperature control switch clockwise, remove the temperature control switch (19C733).

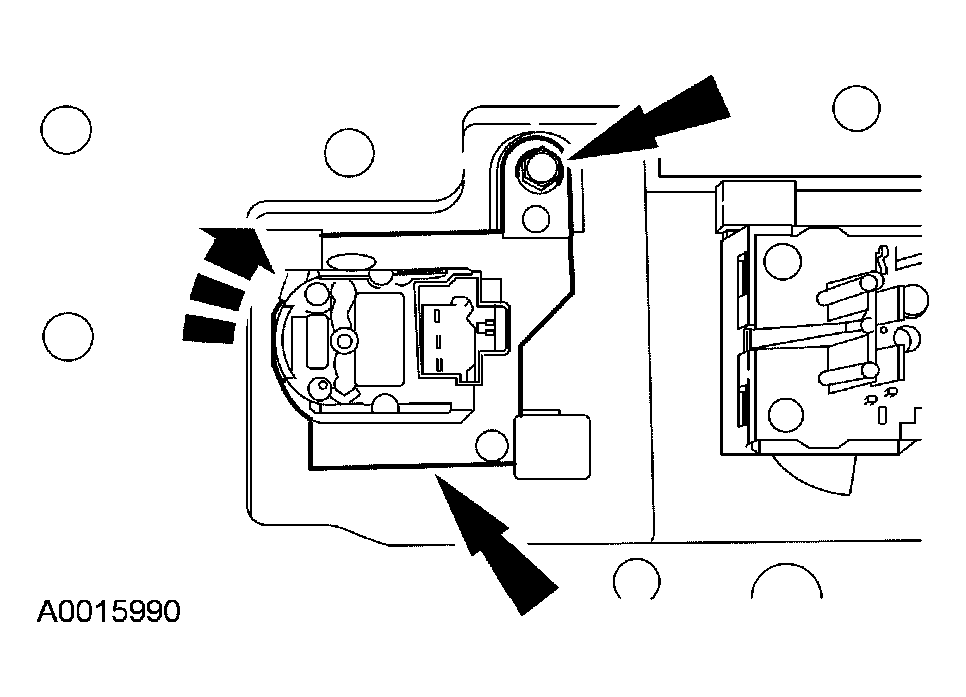

Fig 2: Removing Temperature Control Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
