Pinpoint Test G: The Flash-To-Pass Feature Is Inoperative

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. G1 VERIFY THE HEADLAMP OPERATION
    • Key in ON position.
    • NOTE: Make sure the multifunction switch is in the LOW BEAM position.
    • Place the multifunction switch in the headlamps ON position.
    • Place the multifunction switch in the HIGH BEAM and then LOW BEAM positions while observing the headlamps.
    • Do the high beam and low beam headlamps operate correctly?

    Yes:  GO to  G2.

    No:  GO to HEADLAMP SYMPTOM TABLE  for correct diagnosis.

  2. G2 CHECK THE MULTIFUNCTION SWITCH
    • Key in OFF position.
    • Disconnect: Multifunction Switch C2080.
    • Connect a fused (5A) jumper wire between the multifunction switch C2080-1, circuit 196 (DB/OG), harness side and the multifunction switch C2080-10, circuit 570 (BK/WH), harness side.
      Fig 1: Checking Multifunction Switch
      G04621959Courtesy of FORD MOTOR CO.
    • Do the high beam headlamps illuminate?

    Yes:  INSTALL a new multifunction switch. REFER to STEERING COLUMN MULTIFUNCTION SWITCH . TEST the system for normal operation.

    No:  REMOVE the jumper wire. GO to  G3.

  3. G3 CHECK CIRCUIT 196 (DB/OG) FOR AN OPEN
    • Disconnect: SJB C2280e.
    • Measure the resistance between the multifunction switch C2080-1, circuit 196 (DB/OG), harness side and the SJB C2280e-15, circuit 196 (DB/OG), harness side.

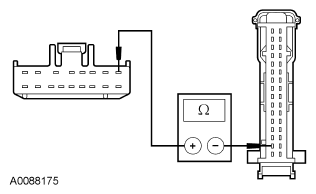

      Fig 2: Checking Circuit 196 (DB/OG) For An Open
      G04621960Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes:  GO to  G4.

    No:  REPAIR the circuit. TEST the system for normal operation.

  4. G4 CHECK FOR CORRECT SJB OPERATION
    • Disconnect all the SJB connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all the SJB connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?

    Yes:  INSTALL a new SJB. REFER to SMART JUNCTION BOX (SJB) . TEST the system for normal operation.

    No:  The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
