CD Charger Connector

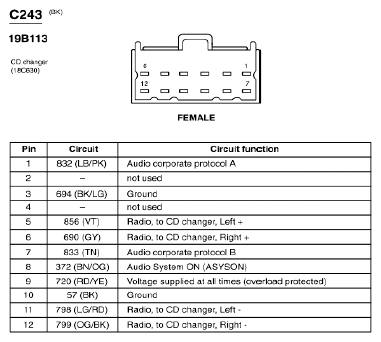

Fig 1: CD Charger Connector End View (C243)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
