Deactivator Switch Connector

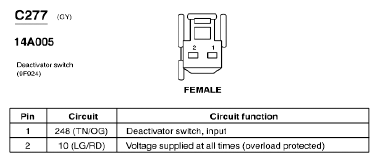

Fig 1: Deactivator Switch Connector End View (C277)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
