Door Lock Switch, Driver Side Connector

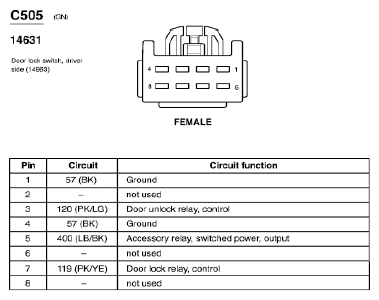

Fig 1: Door Lock Switch, Driver Side Connector End View (C505)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
