Electronic Compass Connector

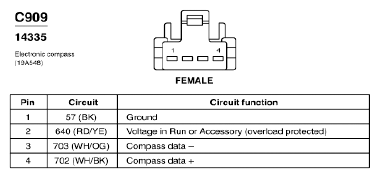

Fig 1: Electronic Compass Connector End View (C909)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
