Generator Connectors

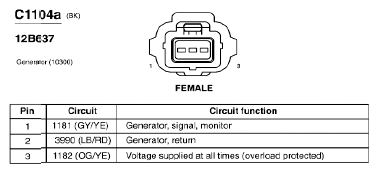

Fig 1: Generator Connector End View (C1104a)
G07850319Courtesy of FORD MOTOR CO.

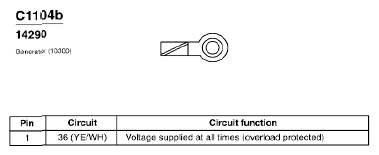

Fig 2: Generator Connector End View (C1104b)
G07850320Courtesy of FORD MOTOR CO.
