Ignition Switch Connector

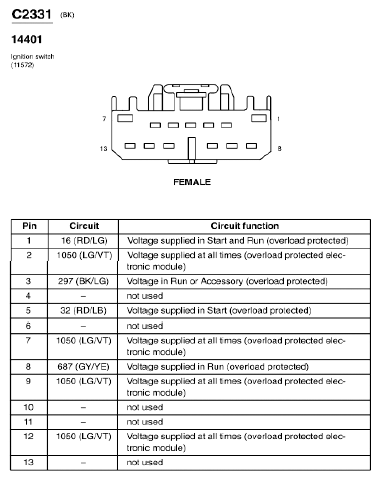

Fig 1: Ignition Switch Connector End View (C2331)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
