Passenger Air Bag Module Connectors

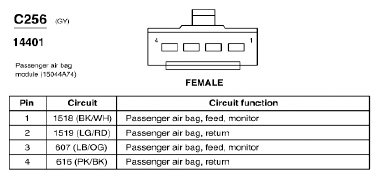

Fig 1: Passenger Air Bag Module Connector End View (C256)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
