Side Air Bag Module, Left Connector

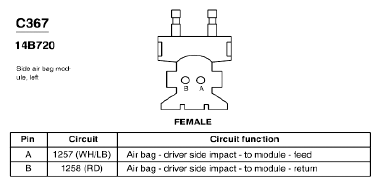

Fig 1: Side Air Bag Module, Left Connector End View (C367)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
