Side Impact Sensor, Right Connector

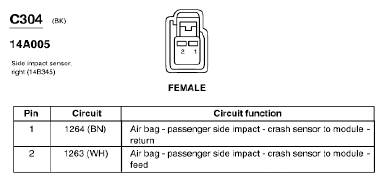

Fig 1: Side Impact Sensor, Right Connector End View (C304)
Courtesy of FORD MOTOR CO.
