Wiper Run/Park Relay Connector

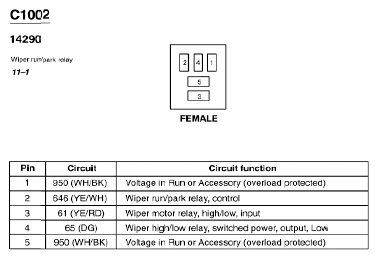

Fig 1: Wiper Run/Park Relay Connector End View (C1002)
Courtesy of FORD MOTOR CO.
