Brake System: Notes

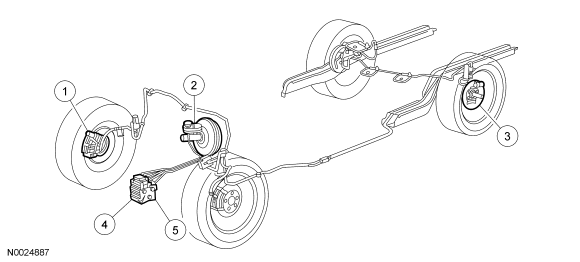

Fig 1: 4-Wheel Anti-lock Brake System (4WABS)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Front disc brake assembly
2	-	Brake master cylinder and power brake booster
3	-	Rear drum brake assembly
4	-	Hydraulic control unit (HCU)
5	2C219	Electronic control unit (ECU)

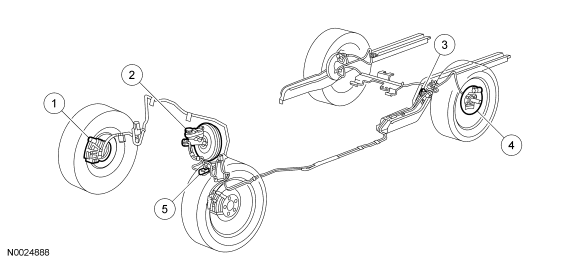

Fig 2: Non-ABS Brake System (Without 4WABS)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Front disc brake assembly
2	-	Brake master cylinder and power brake booster
3	-	Brake load sensing-proportioning valve
4	-	Rear drum brake assembly
5	-	Brake proportioning valve
