Differential Pressure Feedback EGR (DPFE) Sensor Connector

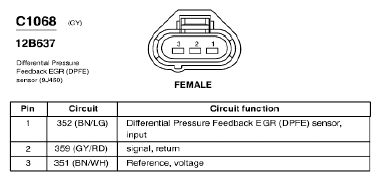

Fig 1: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)
G07850311Courtesy of FORD MOTOR CO.
