Side Impact Sensor, Left Connector

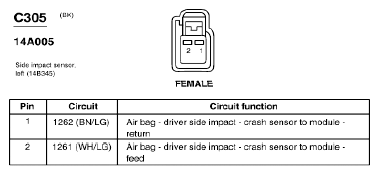

Fig 1: Side Impact Sensor, Left Connector End View (C305)
Courtesy of FORD MOTOR CO.
