Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the integrated control panel (18C858). For additional information, refer to CLIMATE CONTROL ASSEMBLY  .
  2. Remove the knob (18519).

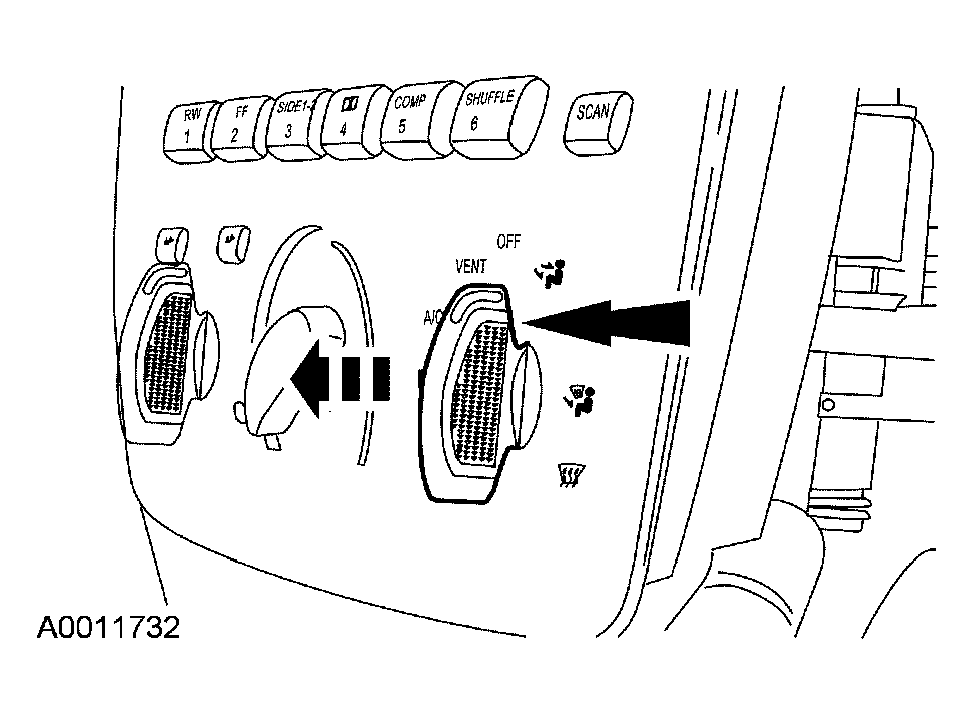

    Fig 1: Removing Knob
    G03958151Courtesy of FORD MOTOR CO.
  3. Disengage the retaining tabs. Remove the function selector switch (19B888).

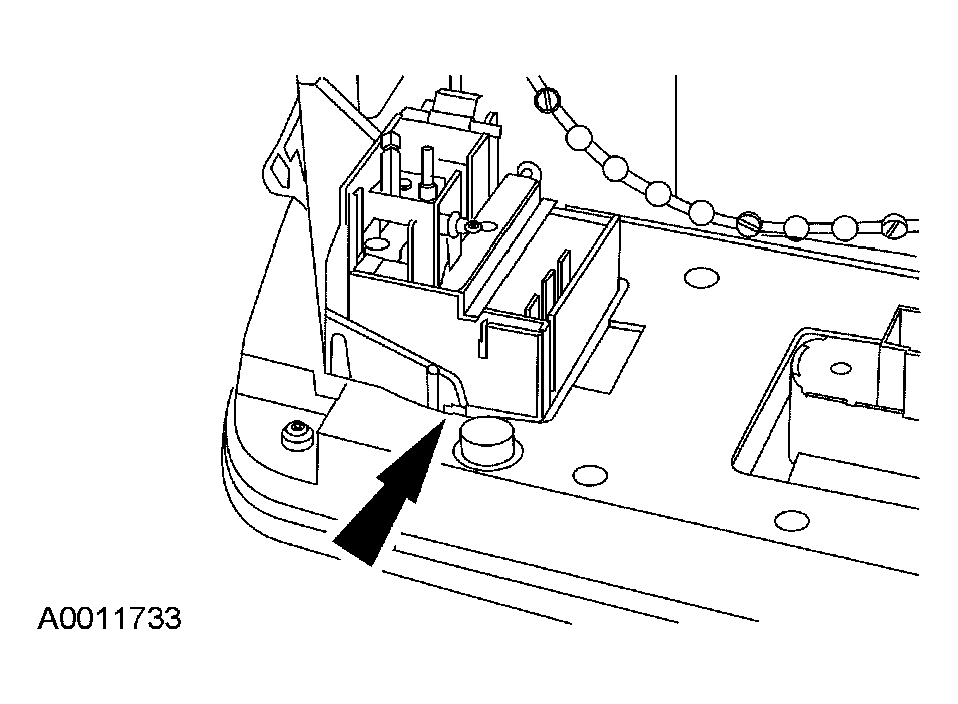

    Fig 2: Removing Function Selector Switch
    G03958152Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
