Main Light Switch Connectors

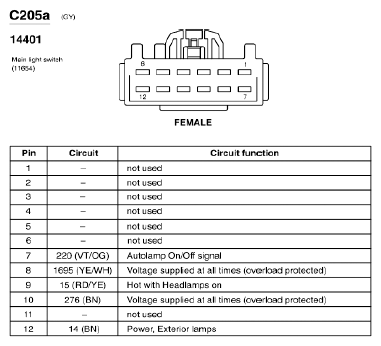

Fig 1: Main Light Switch Connector End View (C205a)
G07850171Courtesy of FORD MOTOR CO.

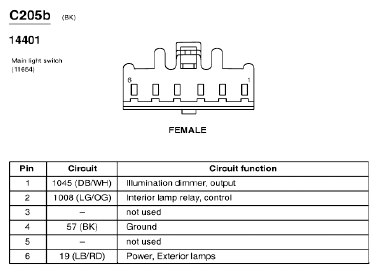

Fig 2: Main Light Switch Connector End View (C205b)
G07850172Courtesy of FORD MOTOR CO.
