Wheel Speed Sensor, Left Front Connector

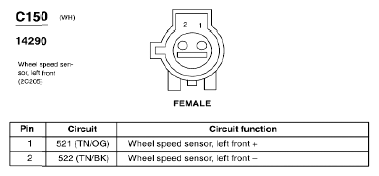

Fig 1: Wheel Speed Sensor, Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
