System Diagram
Main Control Valve Body

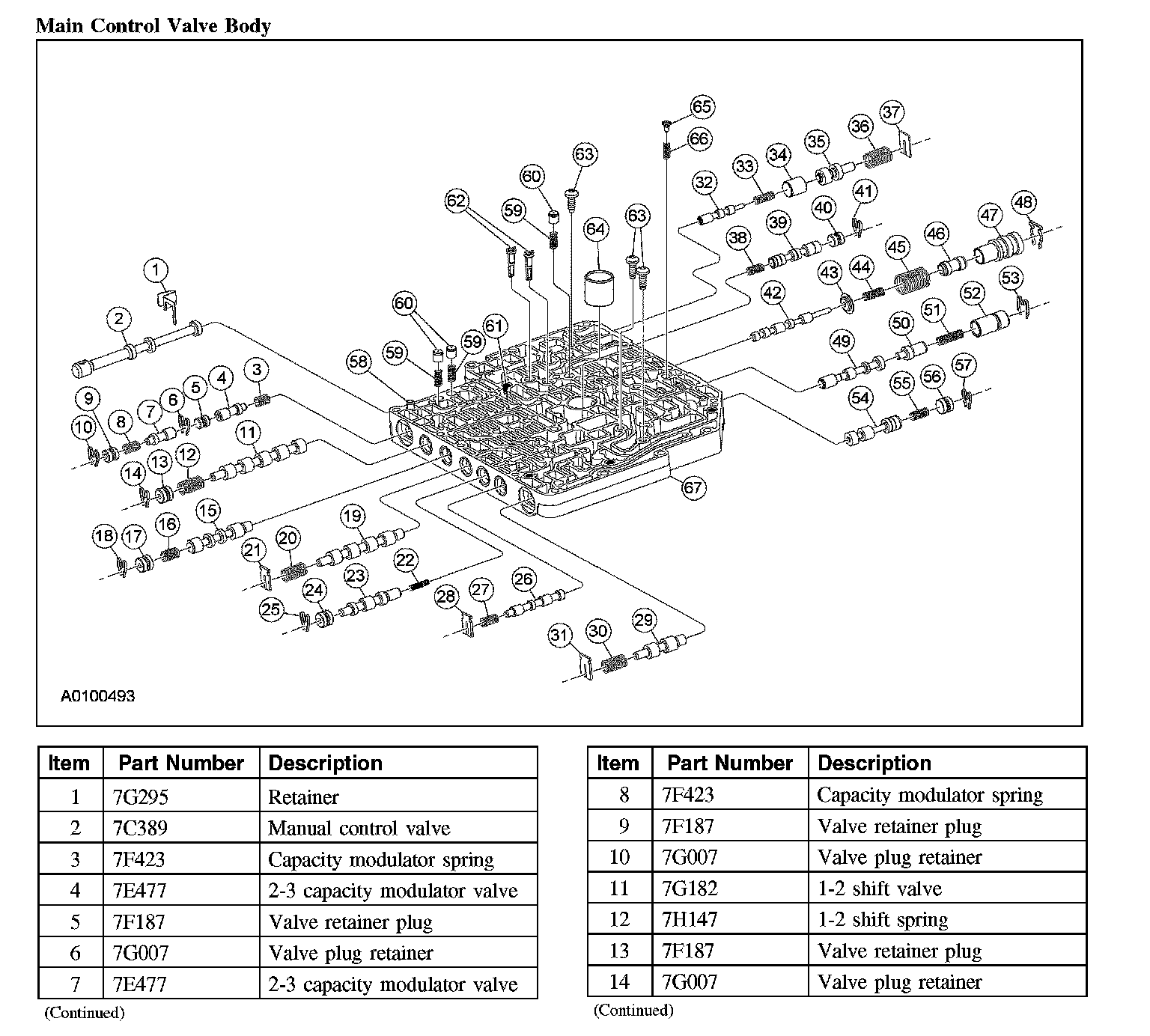

Main Control Valve Body (Part 1):

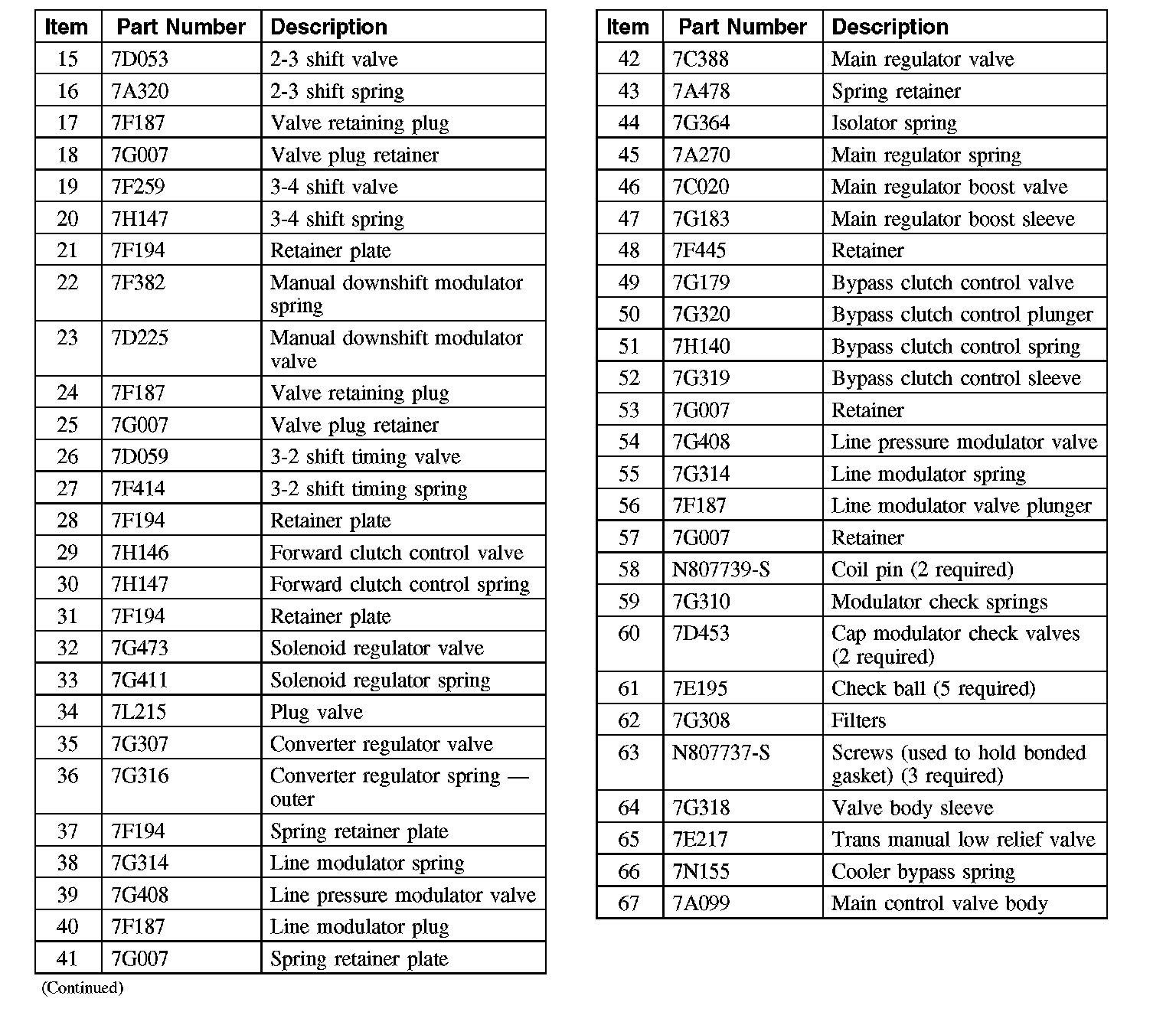

Main Control Valve Body (Part 2):
Main Control Pump Assembly

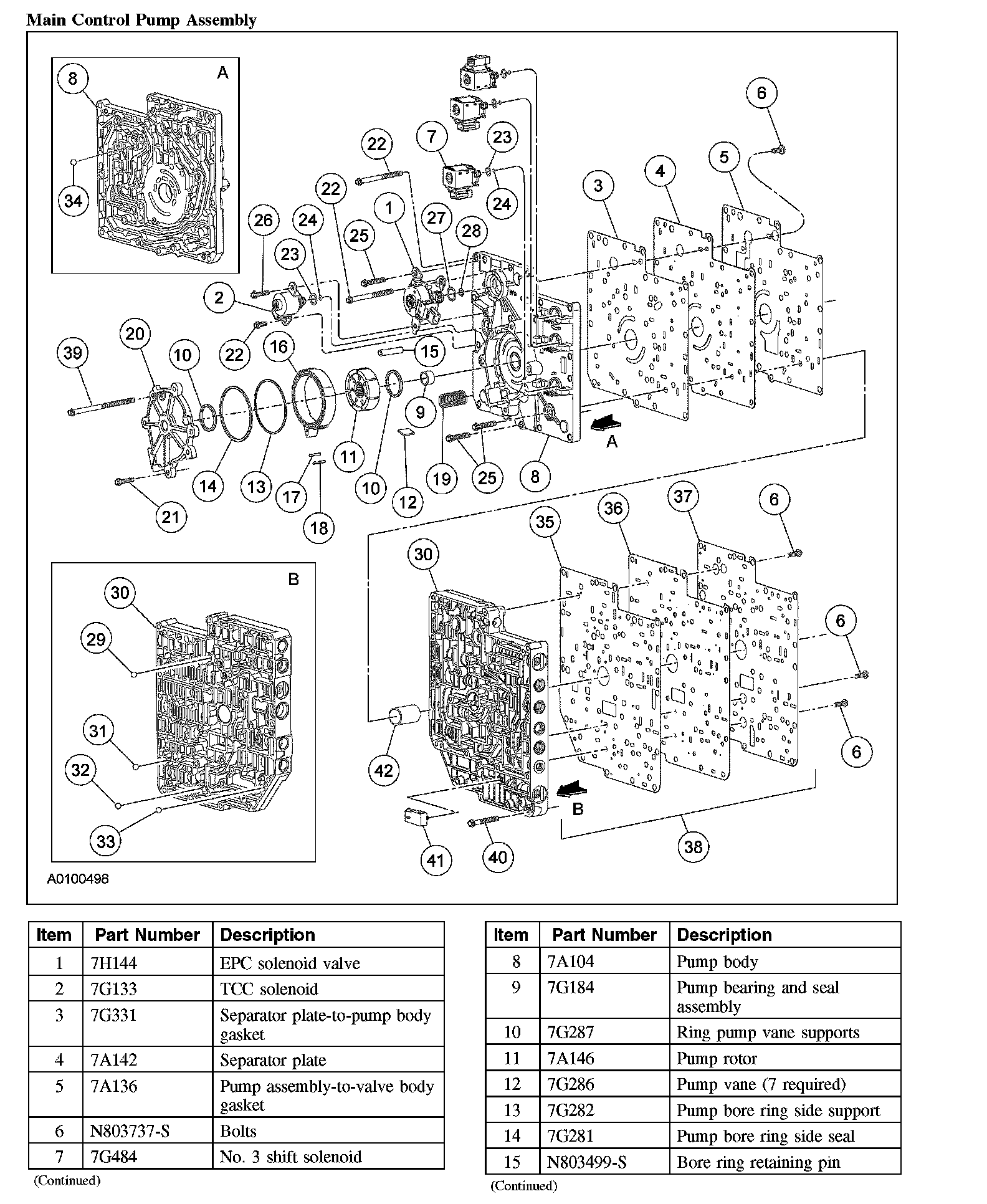

Main Control Pump Assembly (Part 1):

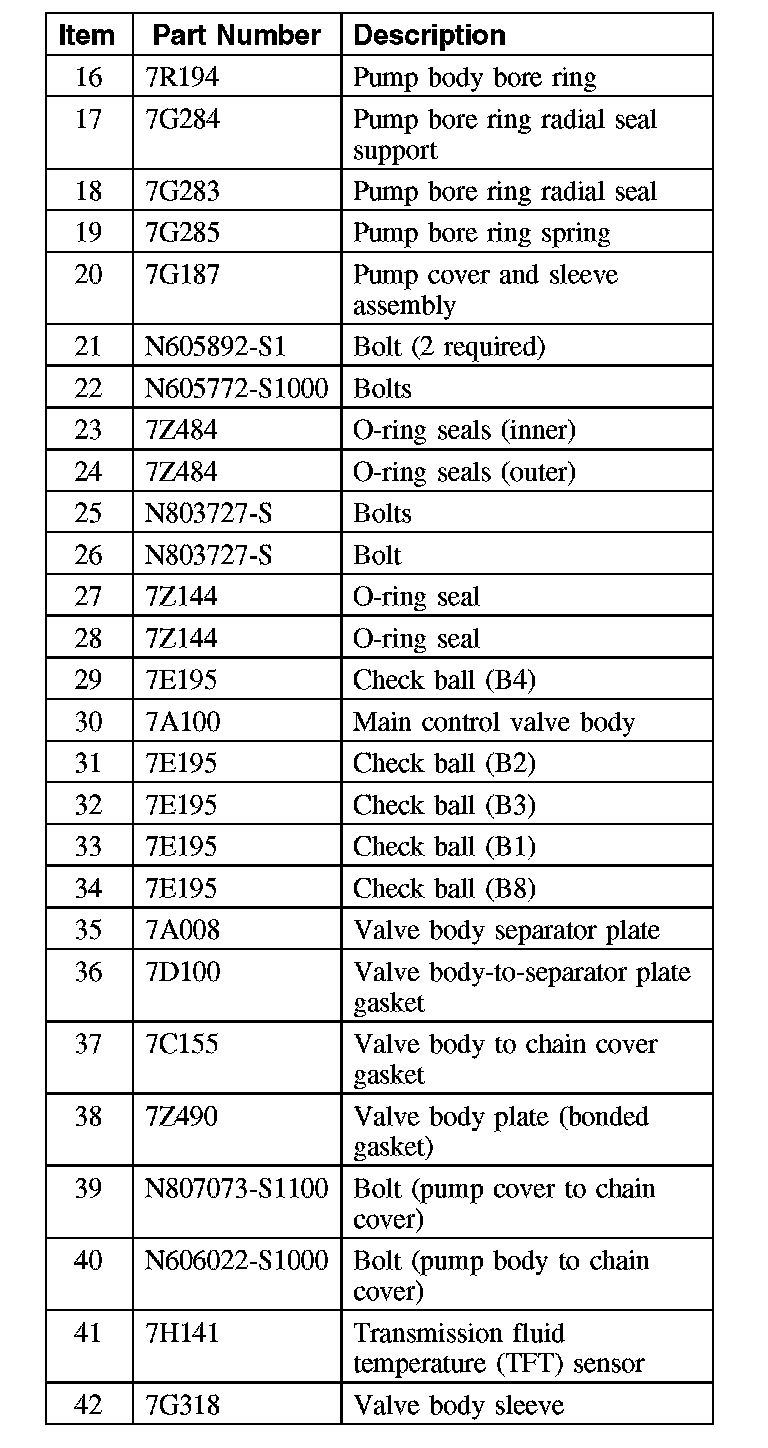

Main Control Pump Assembly (Part 2):
