Connecting Rod Bearing

Lower End Components - Exploded View, Crankshaft Main Bearings and Connecting Rod Bearings

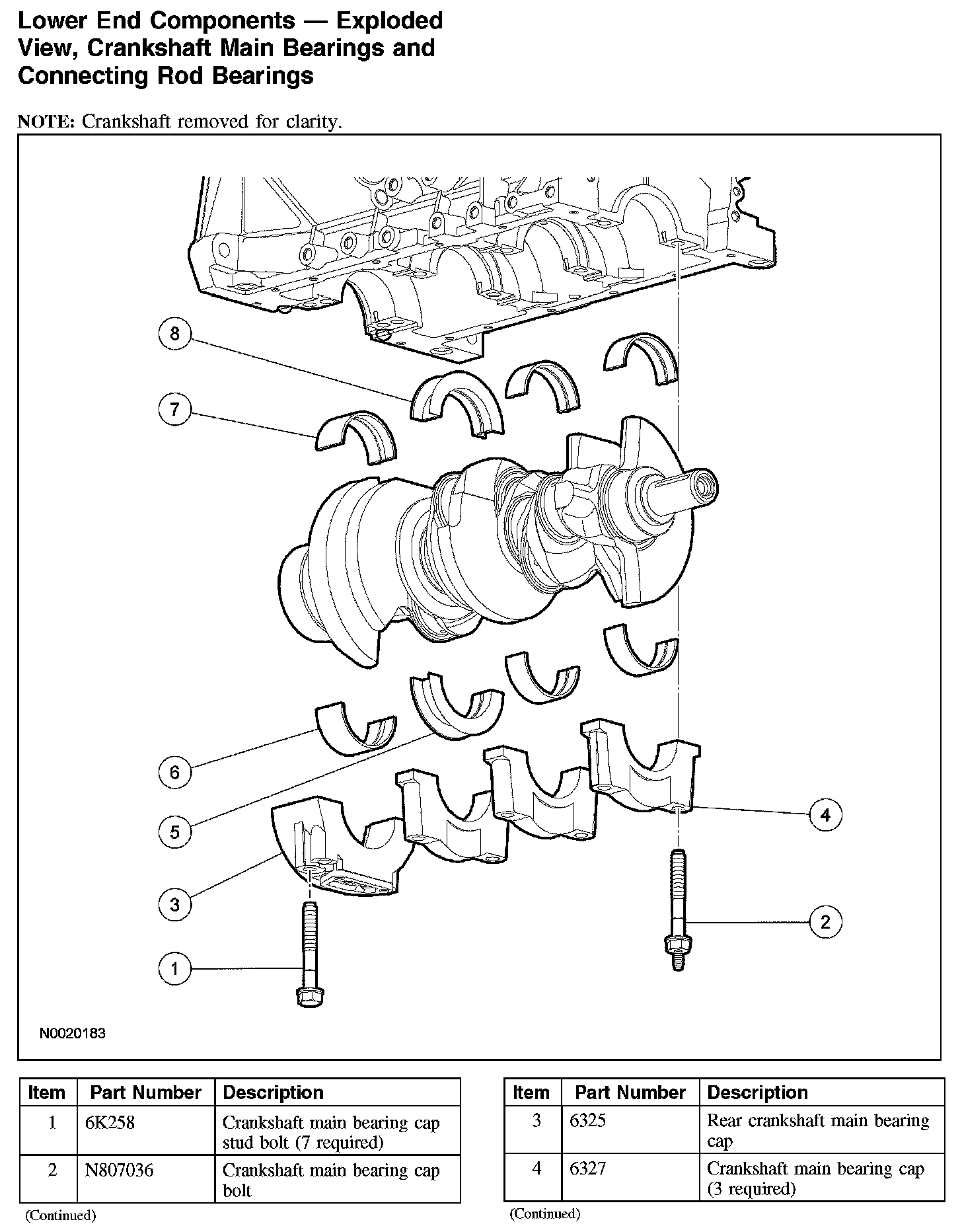

Lower End Components - Exploded View, Crankshaft Main Bearings and Connecting Rod Bearings (Part 1):

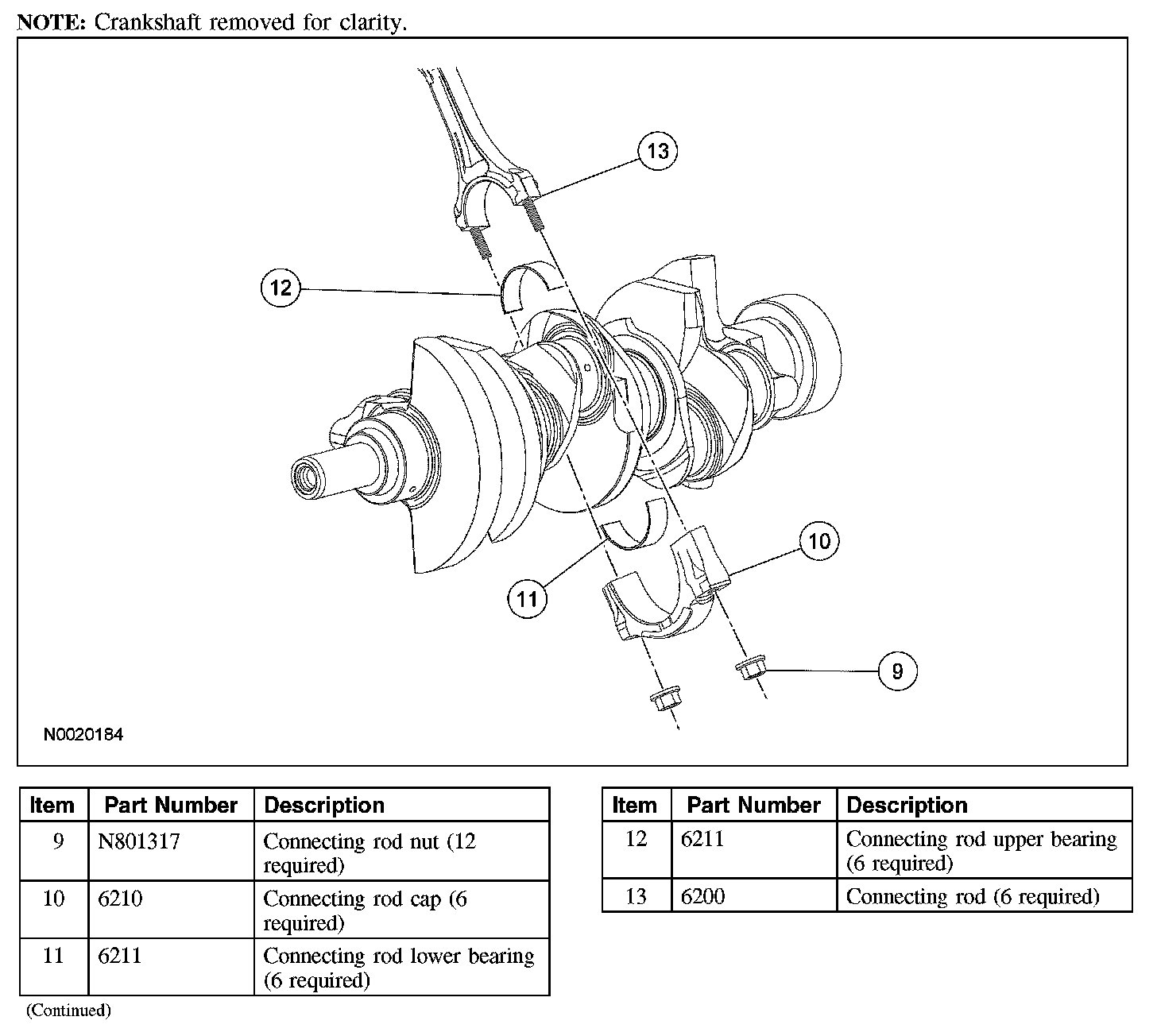

Lower End Components - Exploded View, Crankshaft Main Bearings and Connecting Rod Bearings (Part 2):

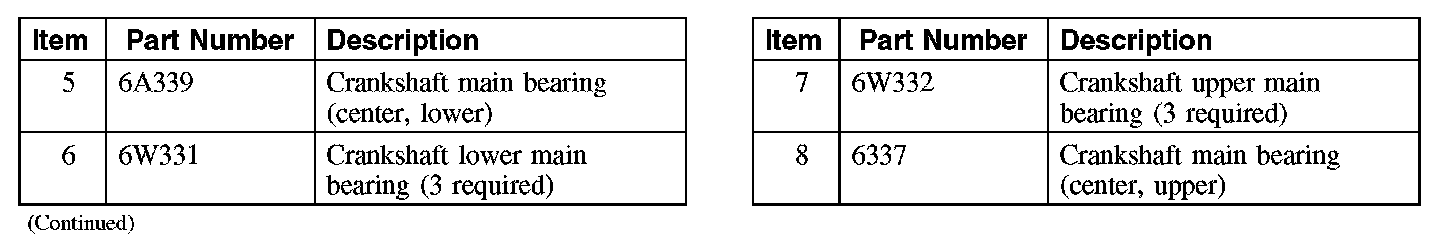

Lower End Components - Exploded View, Crankshaft Main Bearings and Connecting Rod Bearings (Part 3):
