Oil Pump, Engine

Engine Lubrication Components -Exploded View, Oil Pan, Oil Pan Baffle and Oil Pump

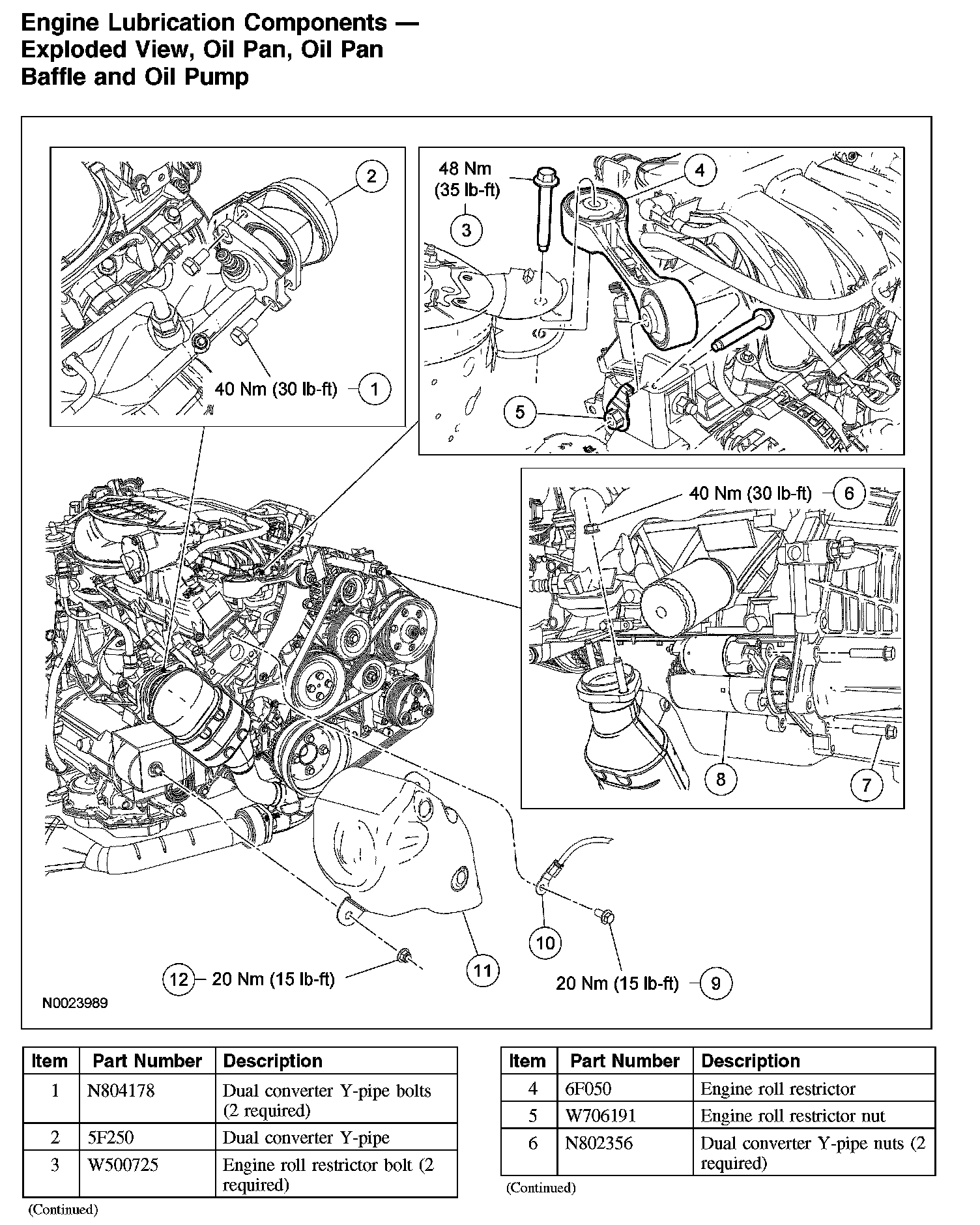

Engine Lubrication Components -Exploded View, Oil Pan, Oil Pan Baffle and Oil Pump (Part 1):

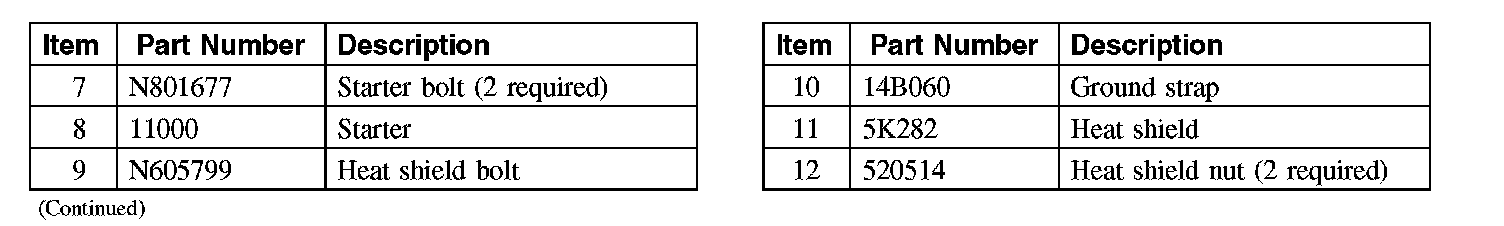

Engine Lubrication Components -Exploded View, Oil Pan, Oil Pan Baffle and Oil Pump (Part 2):

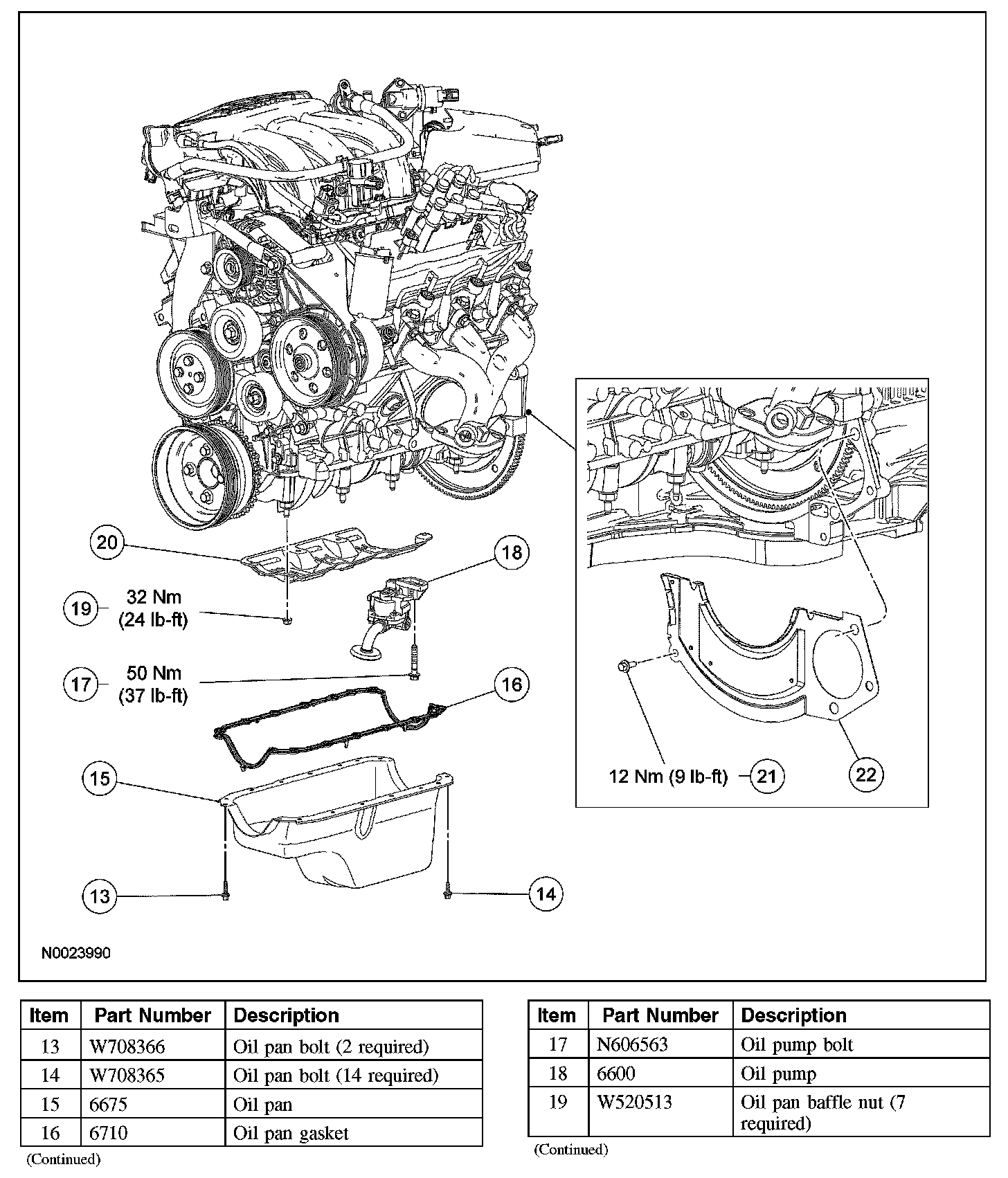

Engine Lubrication Components -Exploded View, Oil Pan, Oil Pan Baffle and Oil Pump (Part 3):

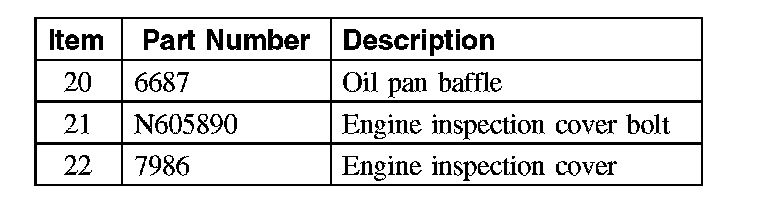

Engine Lubrication Components -Exploded View, Oil Pan, Oil Pan Baffle and Oil Pump (Part 4):
