Lighting Control Module Connectors

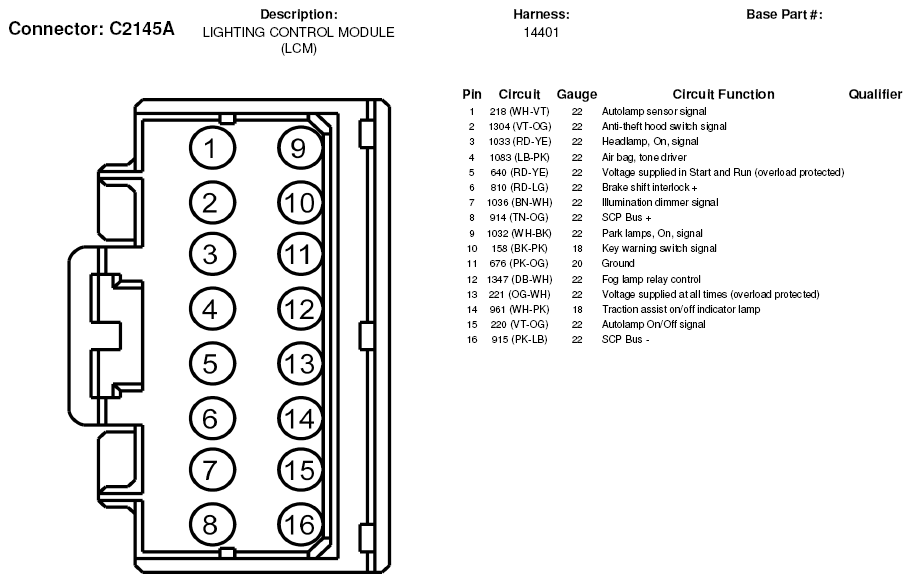

Fig 1: Lighting Control Module Connector End View (C2145A)
G05600454Courtesy of FORD MOTOR CO.

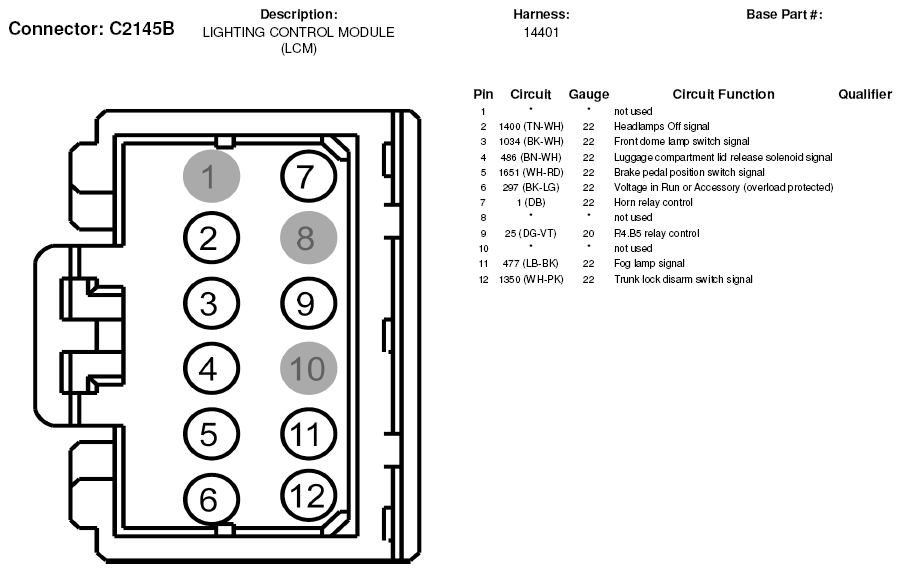

Fig 2: Lighting Control Module Connector End View (C2145B)
G05600455Courtesy of FORD MOTOR CO.

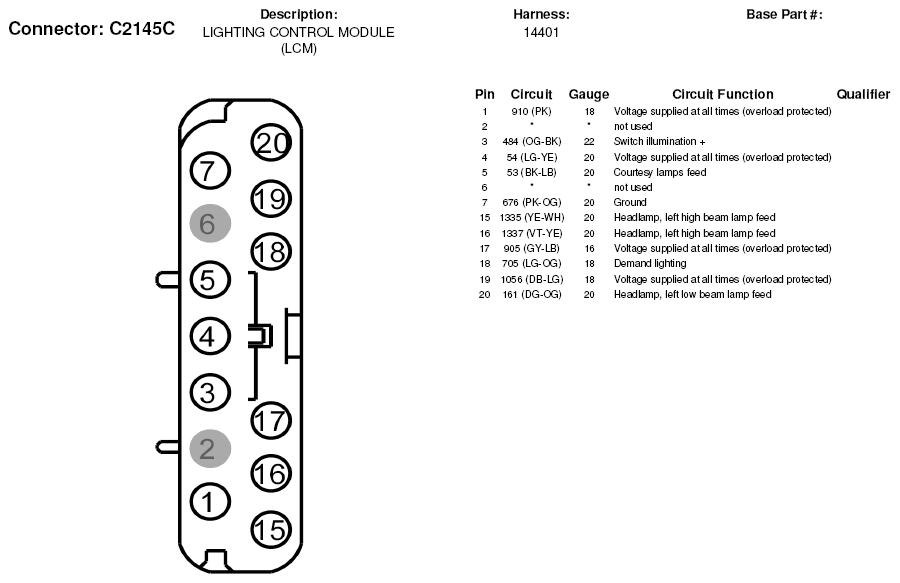

Fig 3: Lighting Control Module Connector End View (C2145C)
G05600456Courtesy of FORD MOTOR CO.

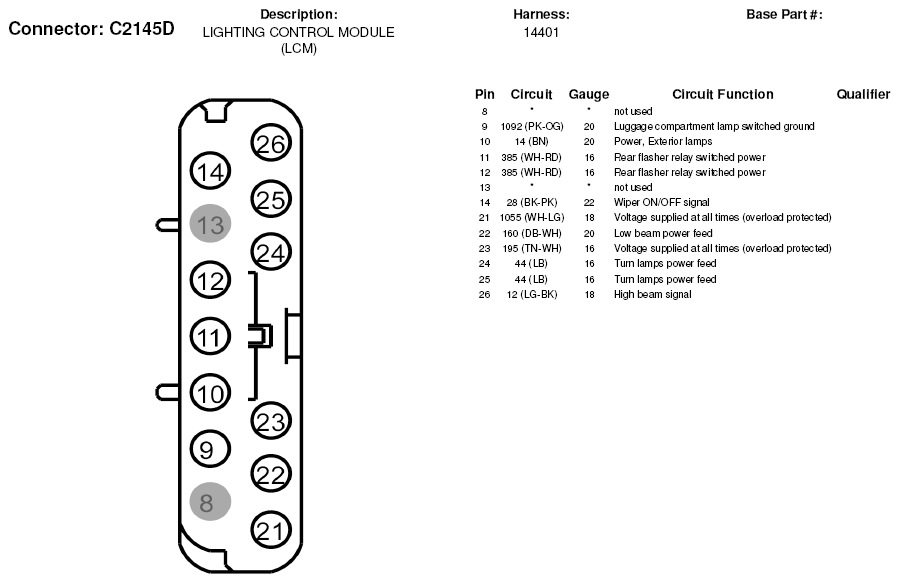

Fig 4: Lighting Control Module Connector End View (C2145D)
G05600457Courtesy of FORD MOTOR CO.
