Powertrain Control Module Connector

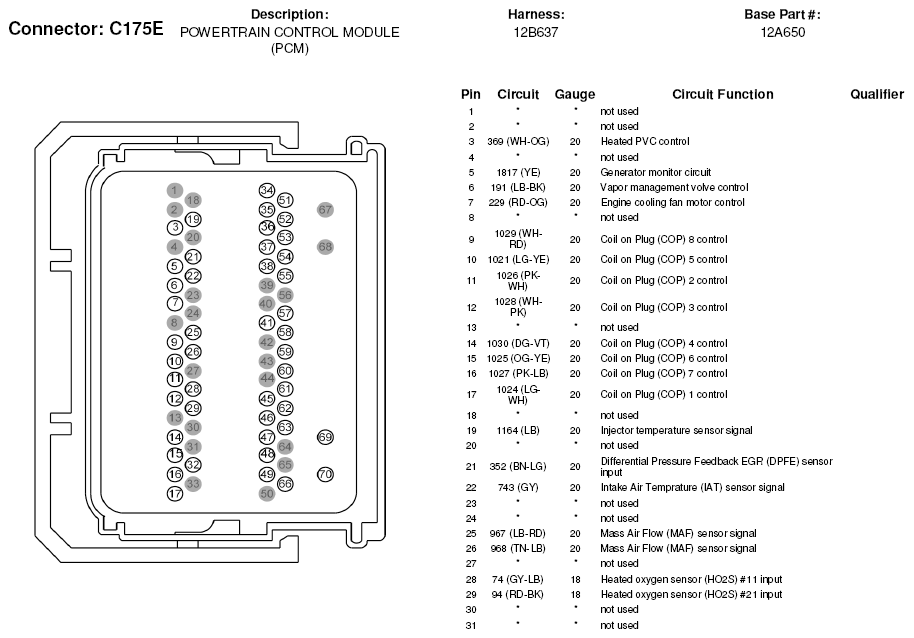

Fig 1: Powertrain Control Module (1 Of 2) Connector End View (C175E) (1 Of 2)
G05600225Courtesy of FORD MOTOR CO.

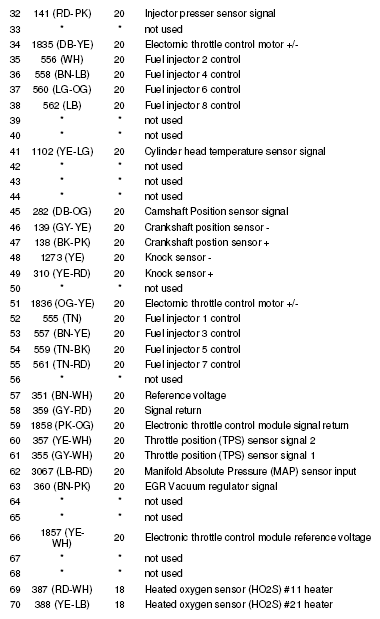

Fig 2: Powertrain Control Module (2 Of 2) Connector End View (C175E) (2 Of 2)
G05600226Courtesy of FORD MOTOR CO.
