Strobe Control Module Connectors

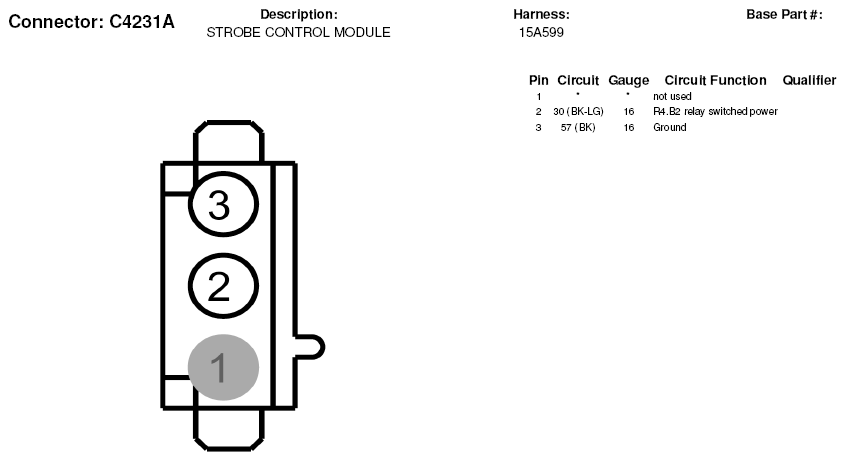

Fig 1: Strobe Control Module Connector End View (C4231A)

Courtesy of FORD MOTOR CO.

Fig 2: Strobe Control Module Connector End View (C4231B)

Courtesy of FORD MOTOR CO.

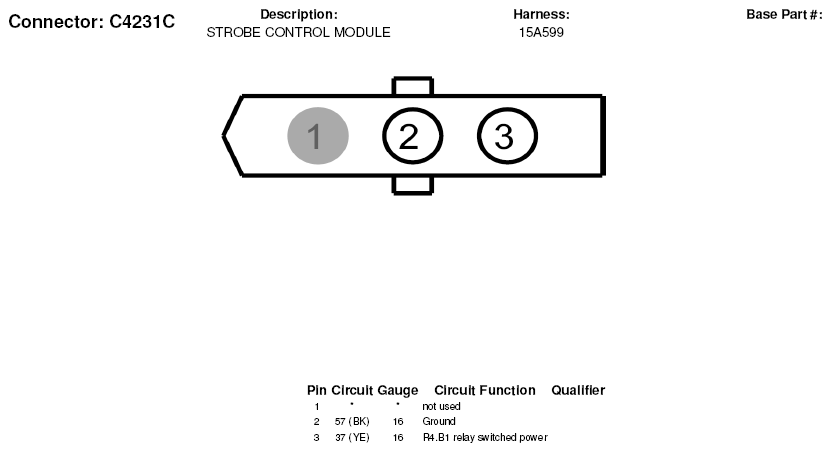

Fig 3: Strobe Control Module Connector End View (C4231C)

Courtesy of FORD MOTOR CO.

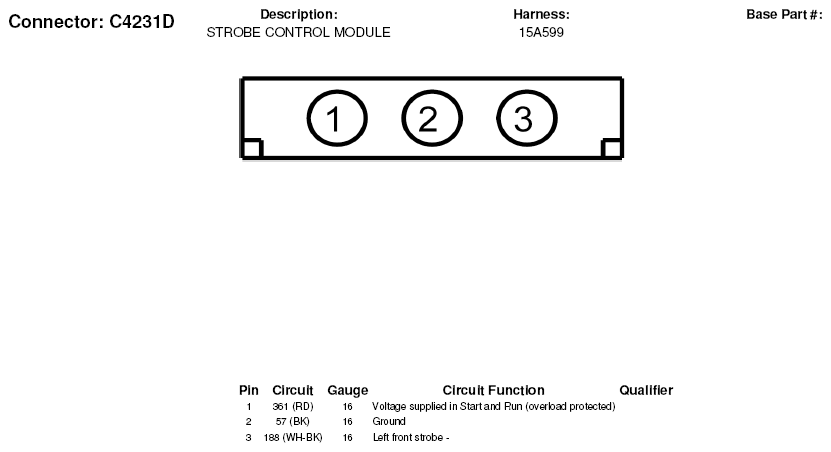

Fig 4: Strobe Control Module Connector End View (C4231D)

Courtesy of FORD MOTOR CO.

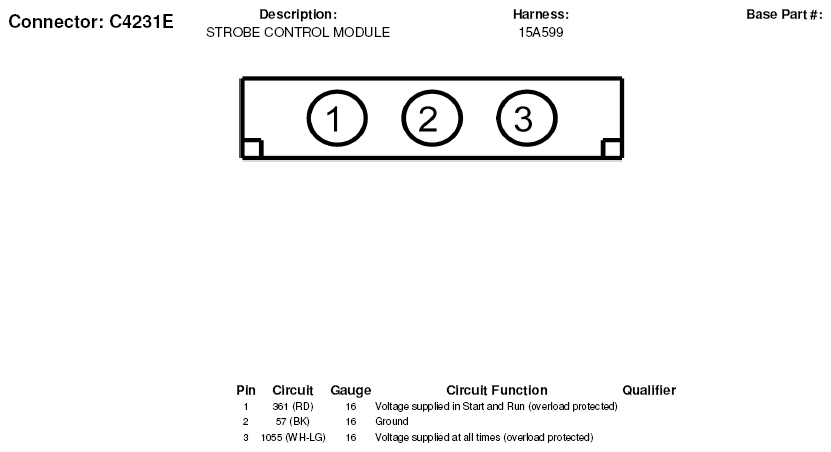

Fig 5: Strobe Control Module Connector End View (C4231E)

Courtesy of FORD MOTOR CO.

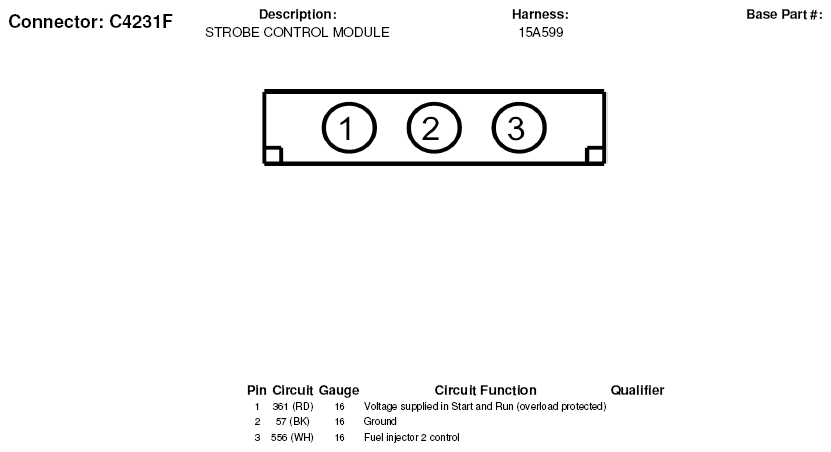

Fig 6: Strobe Control Module Connector End View (C4231F)

Courtesy of FORD MOTOR CO.

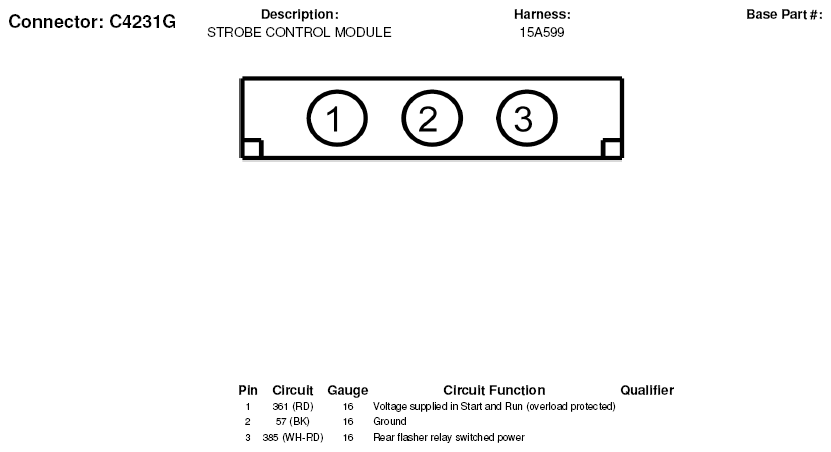

Fig 7: Strobe Control Module Connector End View (C4231G)

Courtesy of FORD MOTOR CO.

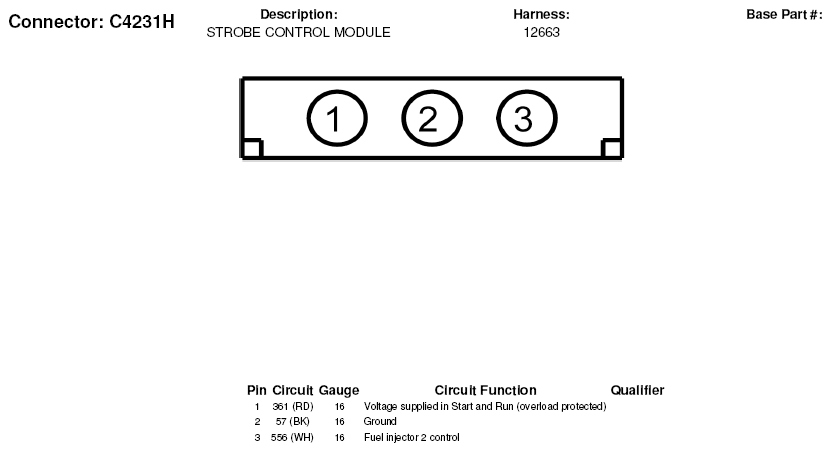

Fig 8: Strobe Control Module Connector End View (C4231H)

Courtesy of FORD MOTOR CO.

Fig 9: Strobe Control Module Connector End View (C4231J)

Courtesy of FORD MOTOR CO.
