Compass Display and Module

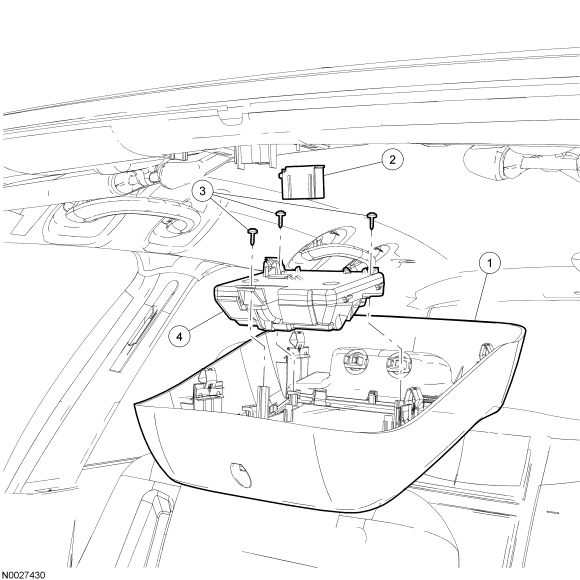

| Item | Part Number | Description |
|---|---|---|
| 1 | 54519A70 | Overhead console |
| 2 | - | Console electrical connector (part of 14334) |
| 3 | - | Compass display and module screws (3 required) |
| 4 | 19A333 | Compass display and module |
- Remove the overhead console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.
- Remove the 3 screws and the compass display and module.
- To install, reverse the removal procedure.
