Engine Front Cover: Notes
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31-A |
- |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
| Item | Part Number | Description |
|---|---|---|
| 1 | W500315 | Power steering pump bolt (3 required) |
| 2 | 3A674 | Power steering pump assembly |
| 3 | 6730 | Oil pan drain plug |
| 4 | W701605 | Oil pan bolt (4 required) |
| 5 | W701725 | Shield bolt |
| 6 | 9G609 | Shield |
| 7 | N808102 | Accessory drive idler pulley bolt |
| 8 | 19A216 | Accessory drive idler pulley |

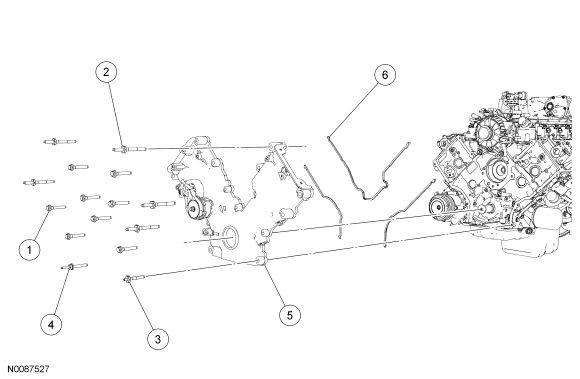

| Item | Part Number | Description |
|---|---|---|
| 1 | N806177 | Engine front cover bolt (8 required) |
| 2 | N806300 | Engine front cover stud bolt (5 required) |
| 3 | W706508 | Engine front cover bolt |
| 4 | N808586 | Engine front cover bolt |
| 5 | 6D080 | Engine front cover |
| 6 | 6D081 | Engine front cover gasket (3 required) |
