Intake Manifold: Notes

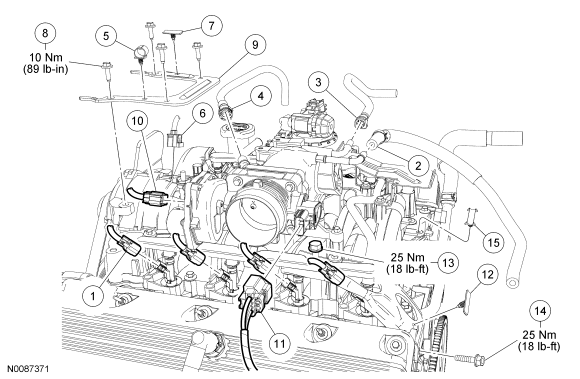

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Fuel injector electrical connector (4 required) (part of 12B637) |
| 2 | 9C490 | Brake booster vacuum hose |
| 3 | 9D289 | Evaporative Emission (EVAP) canister purge valve tube |
| 4 | 6K817 | PCV tube |
| 5 | - | Generator wiring harness retainer |
| 6 | 14A464 | Generator electrical connector (part of 12B637) |
| 7 | - | Generator B+ wiring harness retainer |
| 8 | N807309 | Generator bracket bolt (4 required) |
| 9 | 10153 | Generator bracket |
| 10 | 14A464 | Throttle control electrical connector (part of 12B637) |
| 11 | 14A464 | Throttle Position (TP) sensor electrical connector (part of 12B637) |
| 12 | 13A506 | Wire harness retainer |
| 13 | W705793 | Intake manifold crash bracket bolt |
| 14 | W701725 | Intake manifold crash bracket bolt |
| 15 | 13A506 | Wire harness retainer |

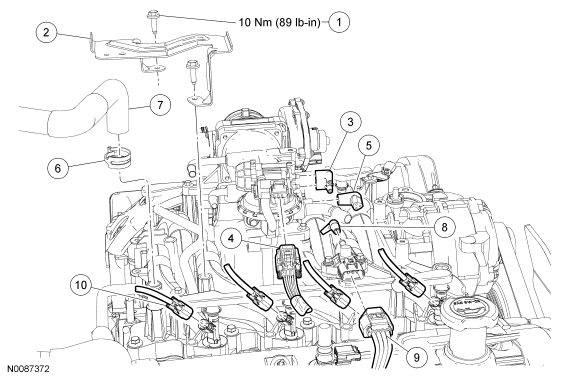

| Item | Part Number | Description |
|---|---|---|
| 1 | N807309 | Intake manifold shield bolt (2 required) |
| 2 | 9F460 | Intake manifold shield |
| 3 | 9E489 | EGR system module vacuum connector |
| 4 | 14A464 | EGR system module electrical connector (part of 12B637) |
| 5 | 9E499 | Intake manifold vacuum hose connector |
| 6 | 15161 | Heater hose spring clamp |
| 7 | 18D334 | Heater hose |
| 8 | 9E489 | Fuel rail pressure and temperature sensor vacuum connector |
| 9 | 14A464 | Fuel rail pressure and temperature sensor electrical connector (part of 12B637) |
| 10 | 14A464 | Fuel injector electrical connector (4 required) (part of 12B637) |

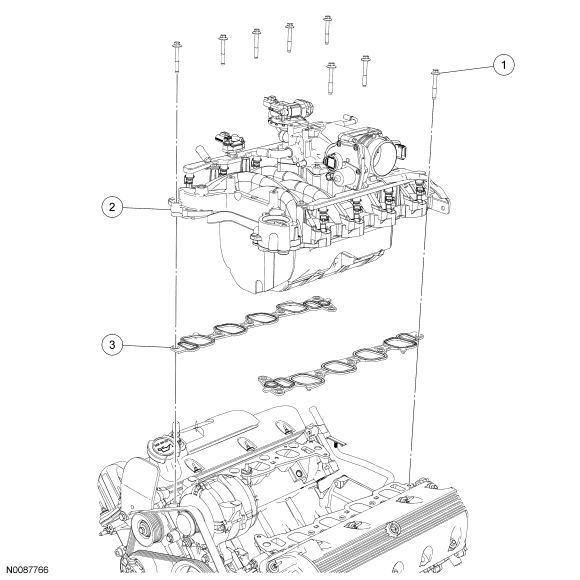

| Item | Part Number | Description |
|---|---|---|
| 1 | W503301 | Intake manifold bolt (8 required) |
| 2 | 9424 | Intake manifold |
| 3 | 9439 | Intake manifold gasket (2 required) |
