System Specifications

Timing Chain Hydraulic Tensioner Bolts 25 Nm (18 lb-ft).

Crankshaft Pulley Bolt
Discard the bolt.

Stage 1 120 Nm (89 lb-ft).
Stage 2 Loosen one full turn
Stage 3 50 Nm (37 lb-ft).
Stage 4 Tighten an additional 90°

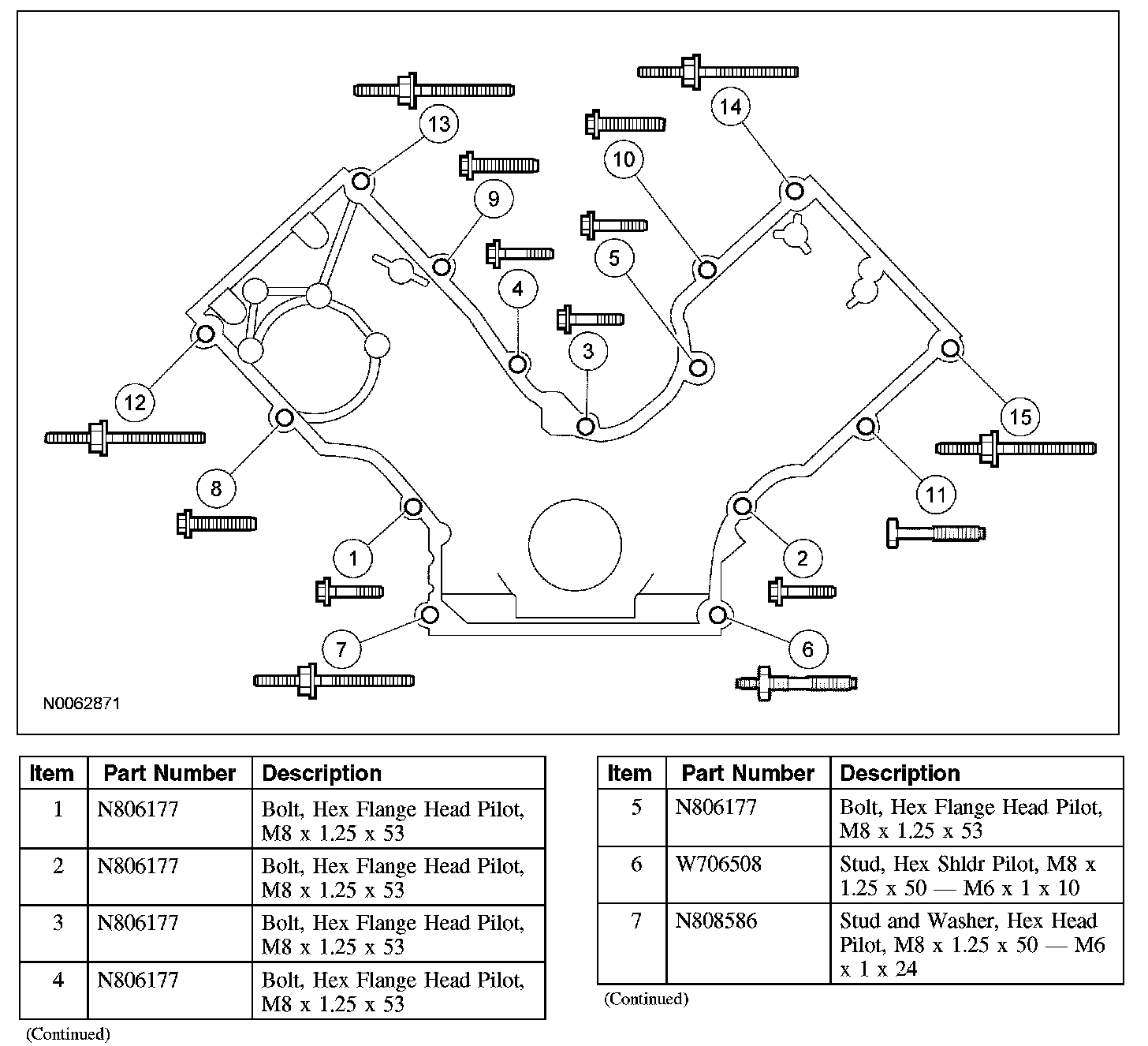

Engine Front Cover Front Fasteners 25 Nm (18 lb-ft).








Engine Front Cover Lower Fasteners
Stage 1 20 Nm (15 lb-ft).
Stage 2 Tighten an additional 60°
