Test C: Speed Control Switch Stuck Or Circuit Failure

PINPOINT TEST C: SPEED CONTROL SWITCH STUCK OR CIRCUIT FAILURE

Normal Operation
The PCM sends a signal through circuit 151 (LB/BK) to the speed control switches, which passes through the clockspring. The return signal is sent through circuit 848 (DG/OG) and the clockspring.







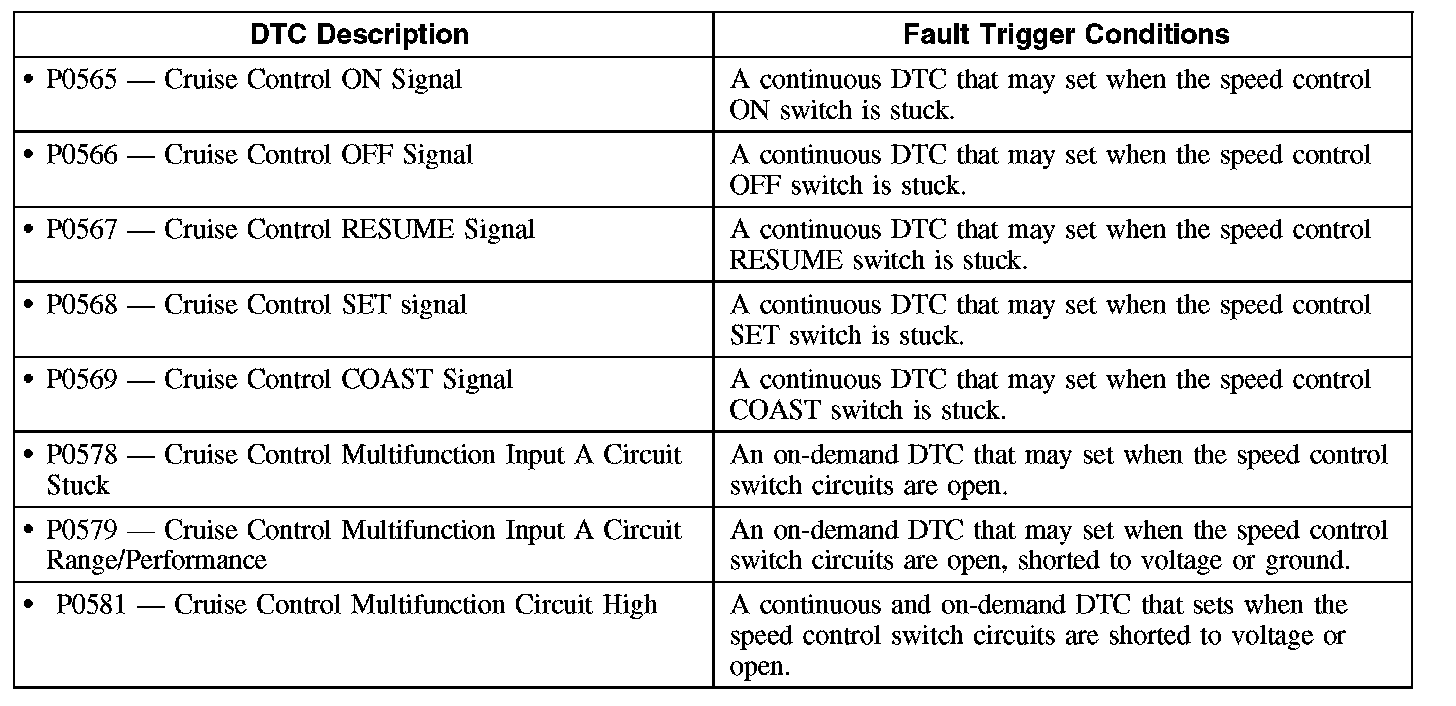

This pinpoint test is intended to diagnose the following:
- Wiring, terminals, or connectors
- Clockspring
- Speed control switch
- PCM

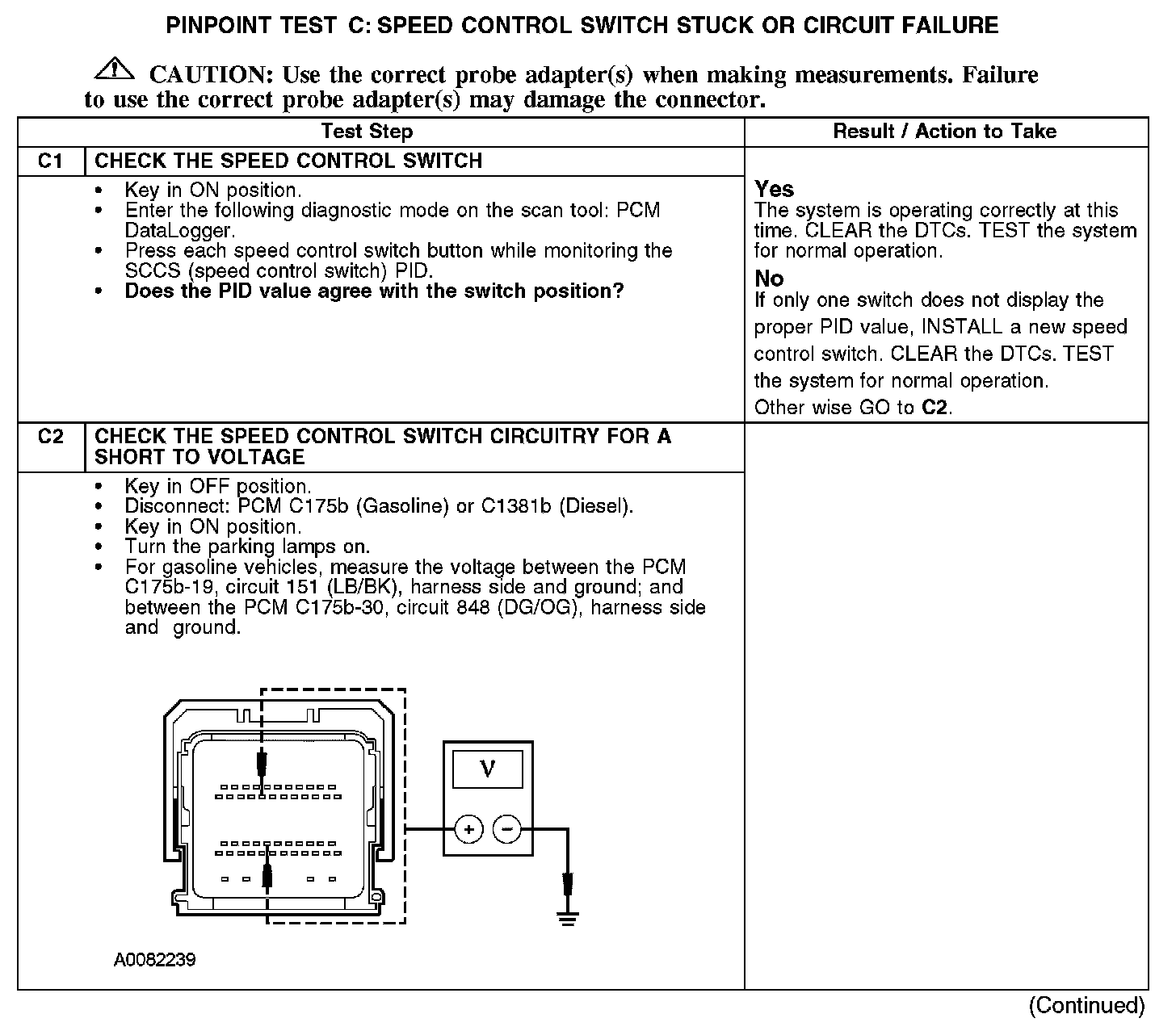

C1-C2:

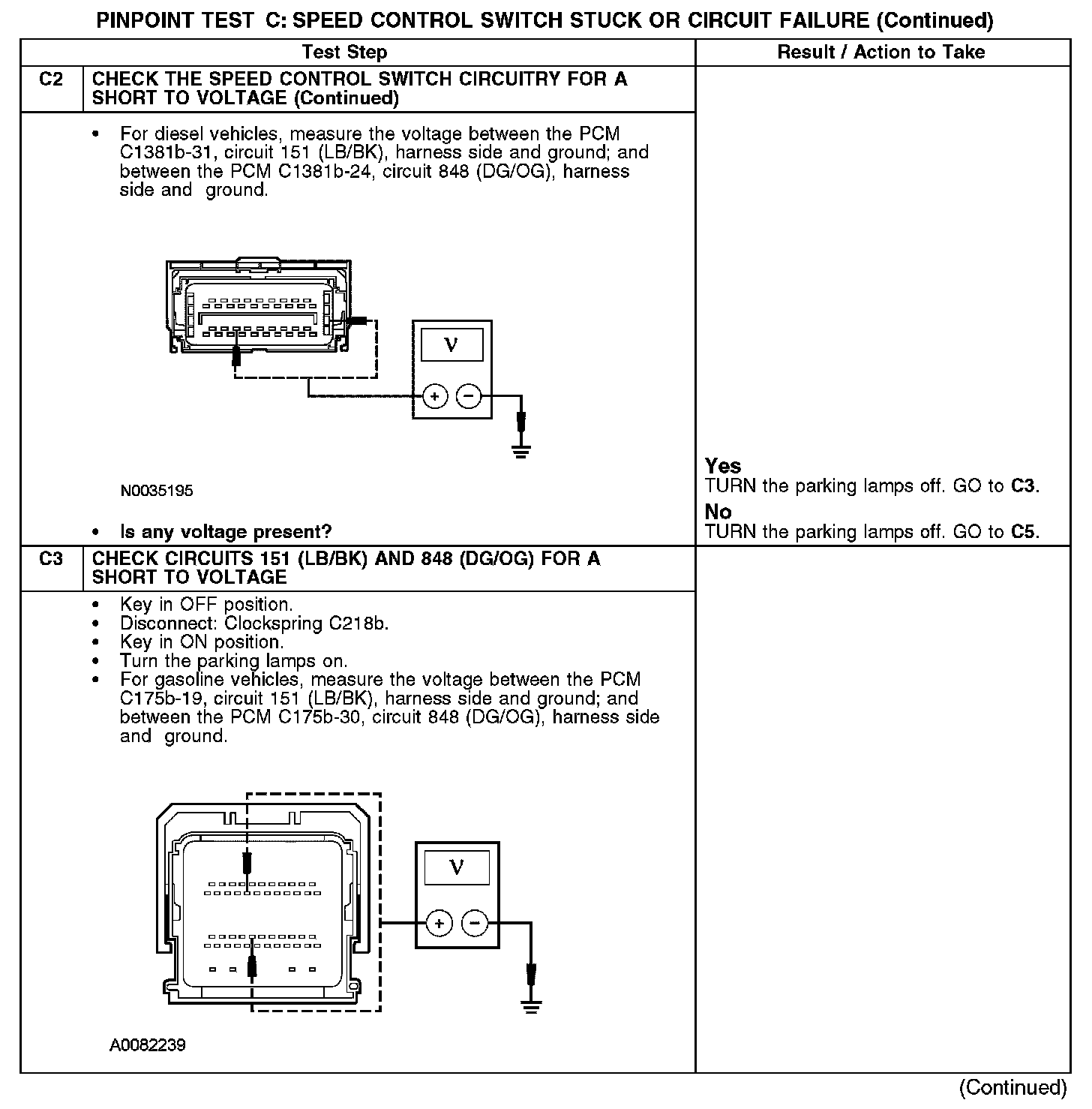

C2-C3:

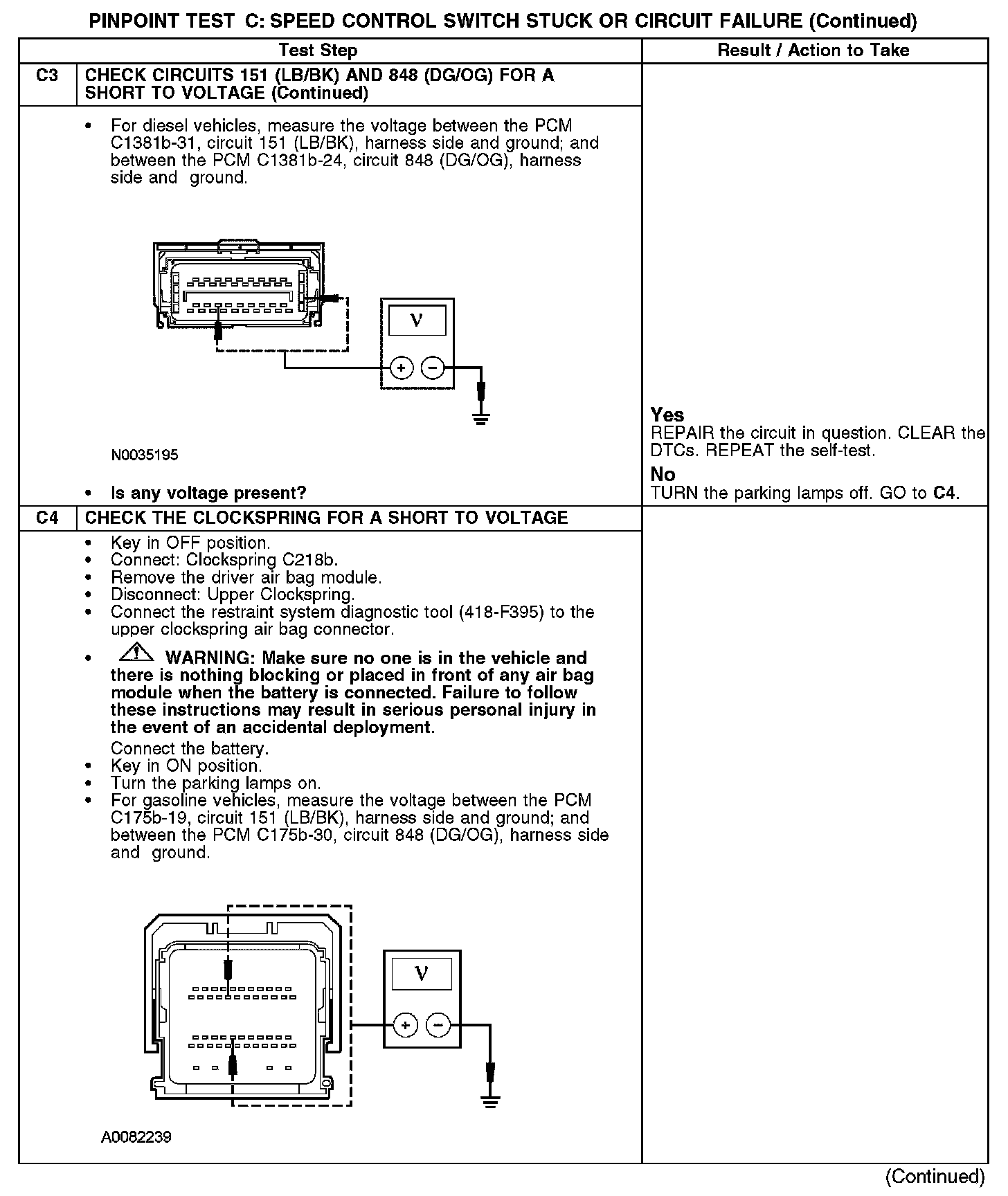

C3-C4:

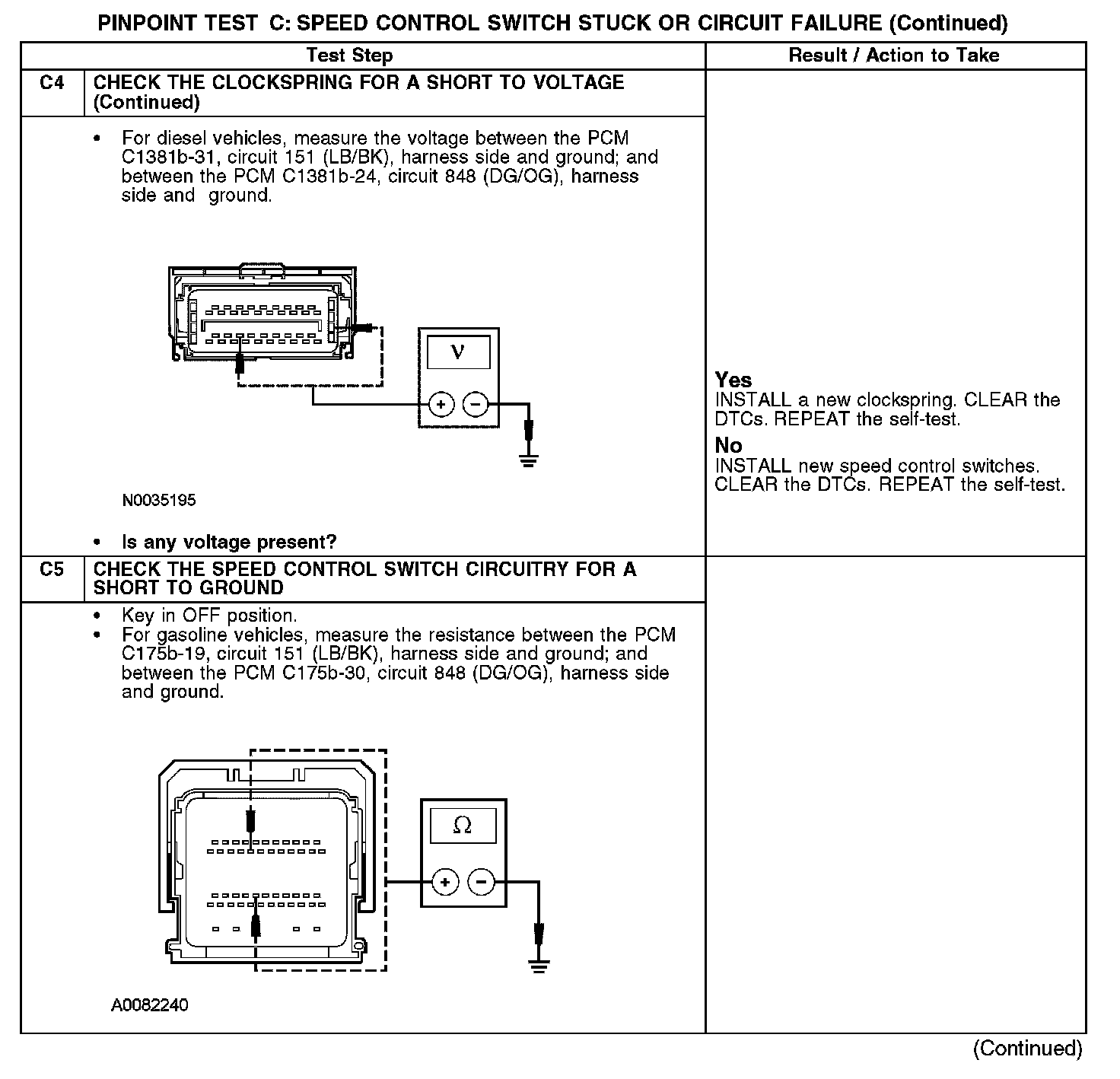

C4-C5:

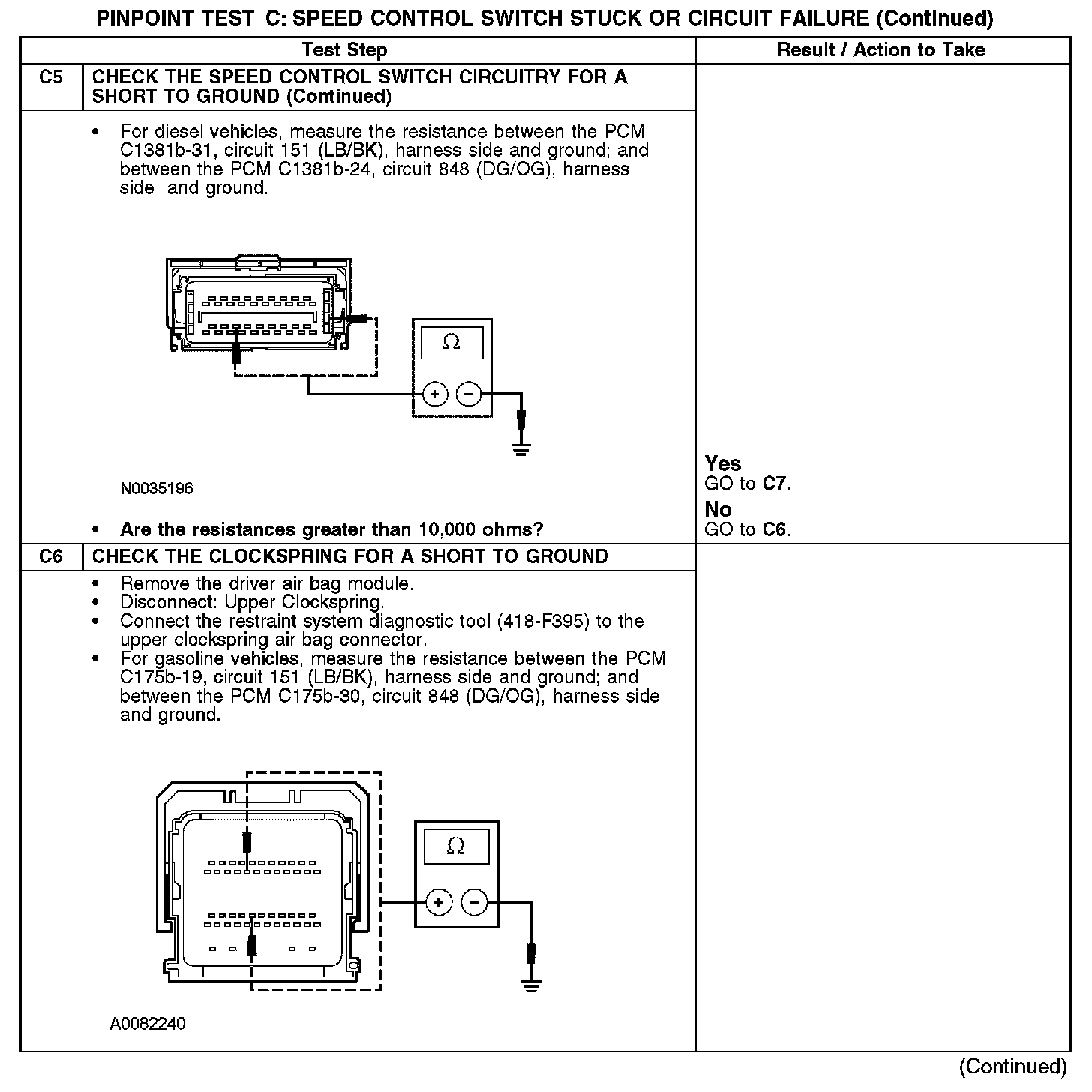

C5-C6:






C6-C7:

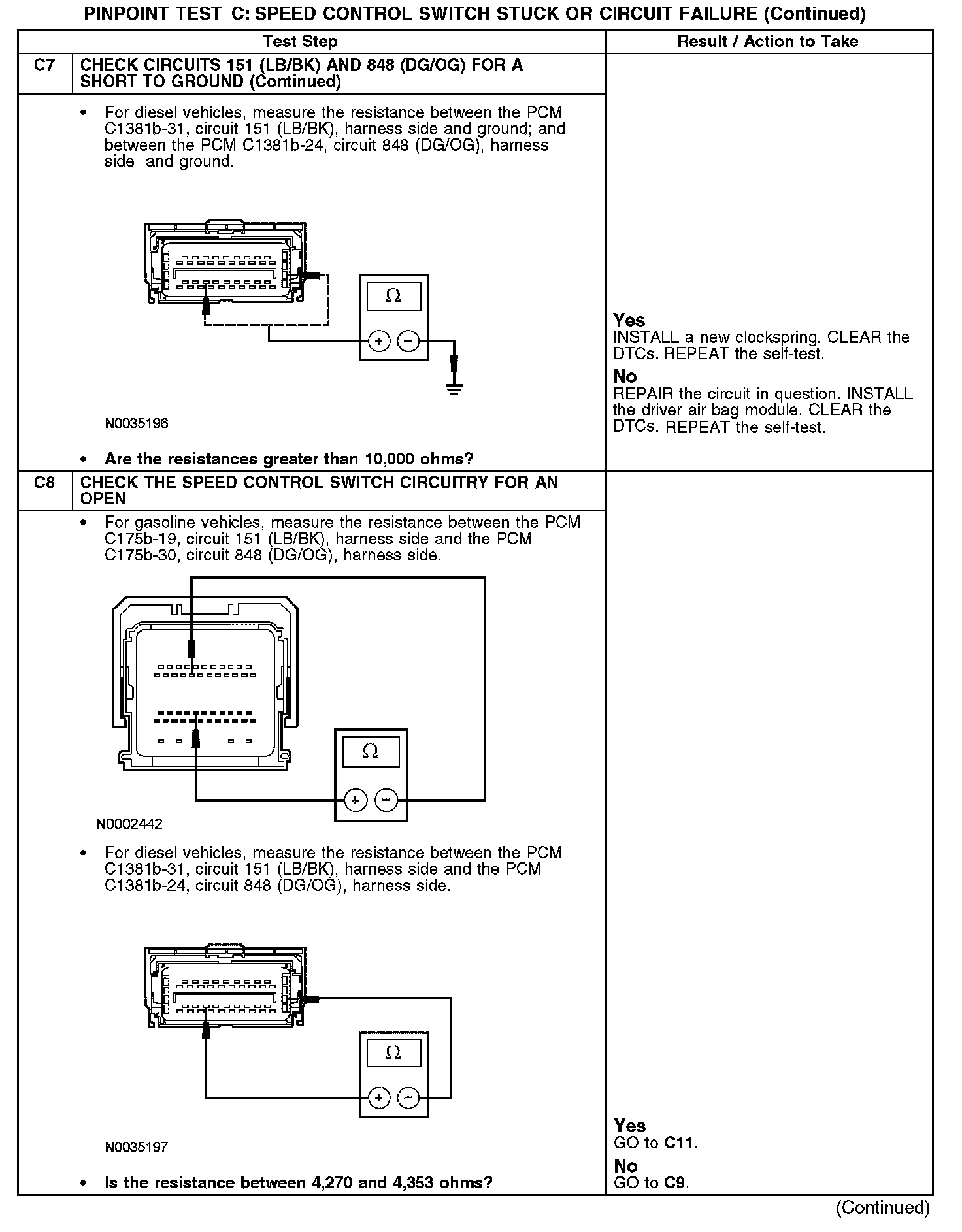

C7-C8:

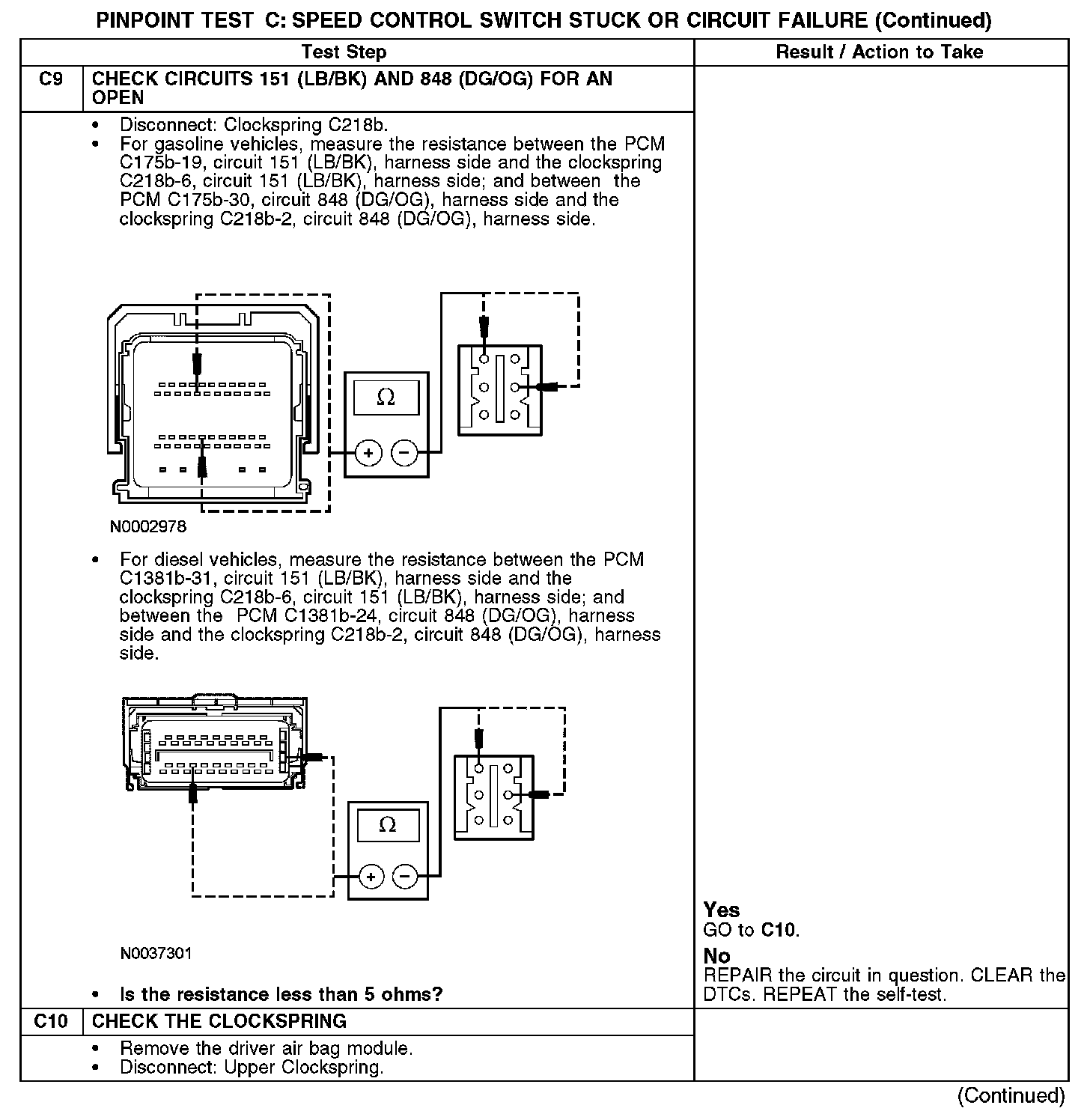

C9-C10:

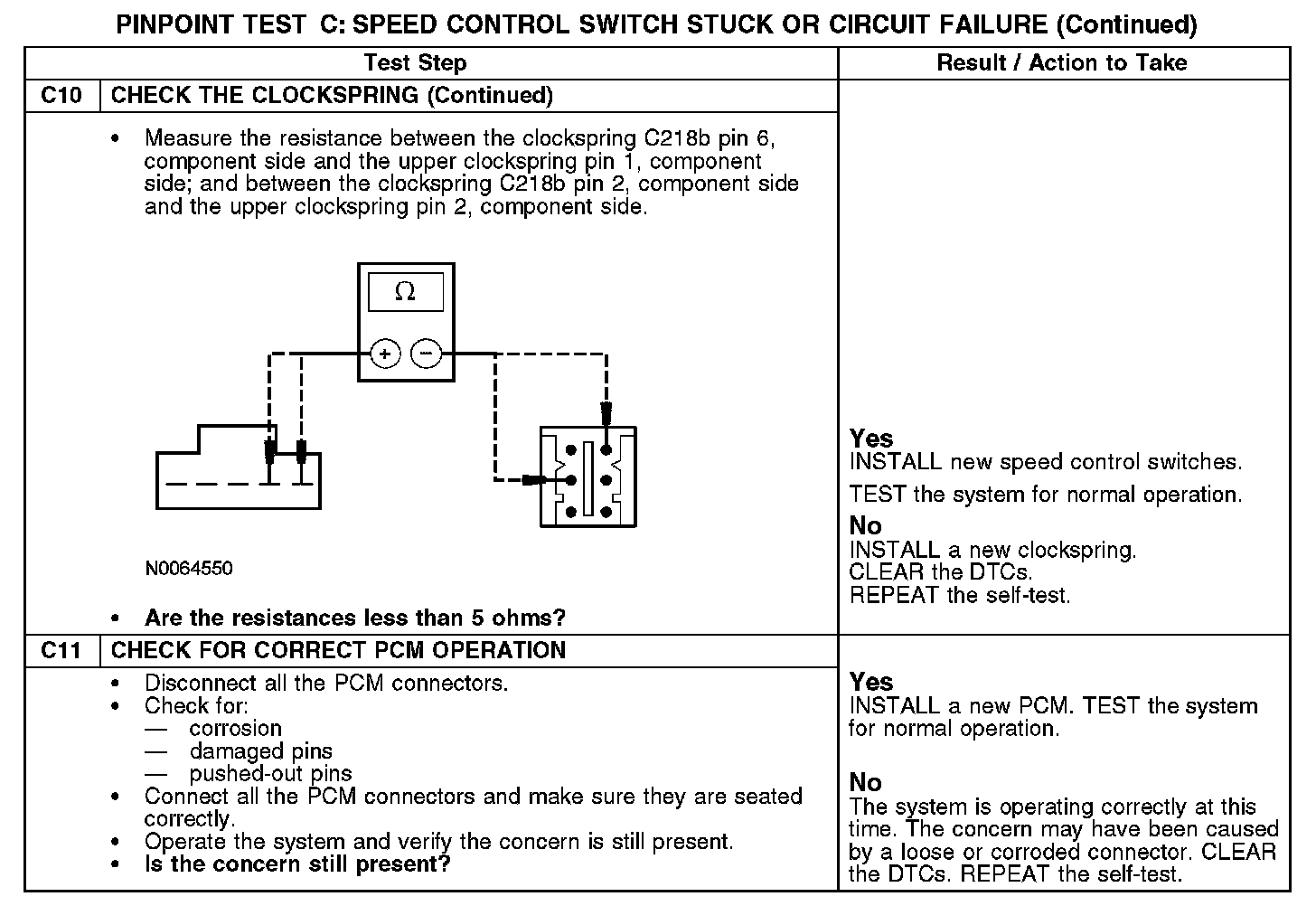

C10-C11:
