Intake Manifold

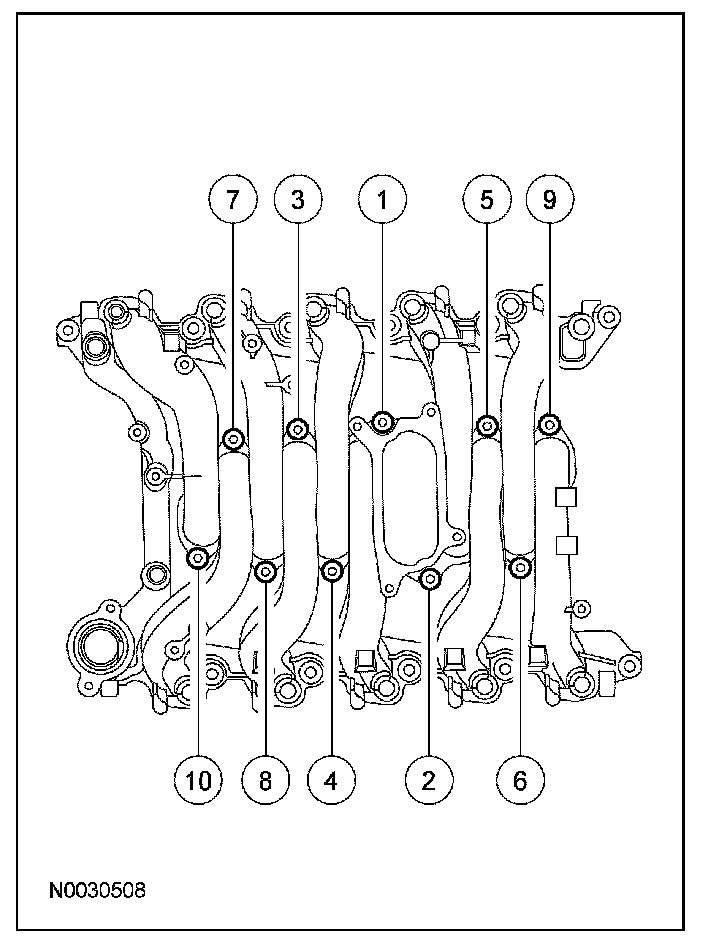

Intake Manifold Bolts
Stage 1 2 Nm (18 lb-in).
Stage 2 25 Nm (18 lb-ft).

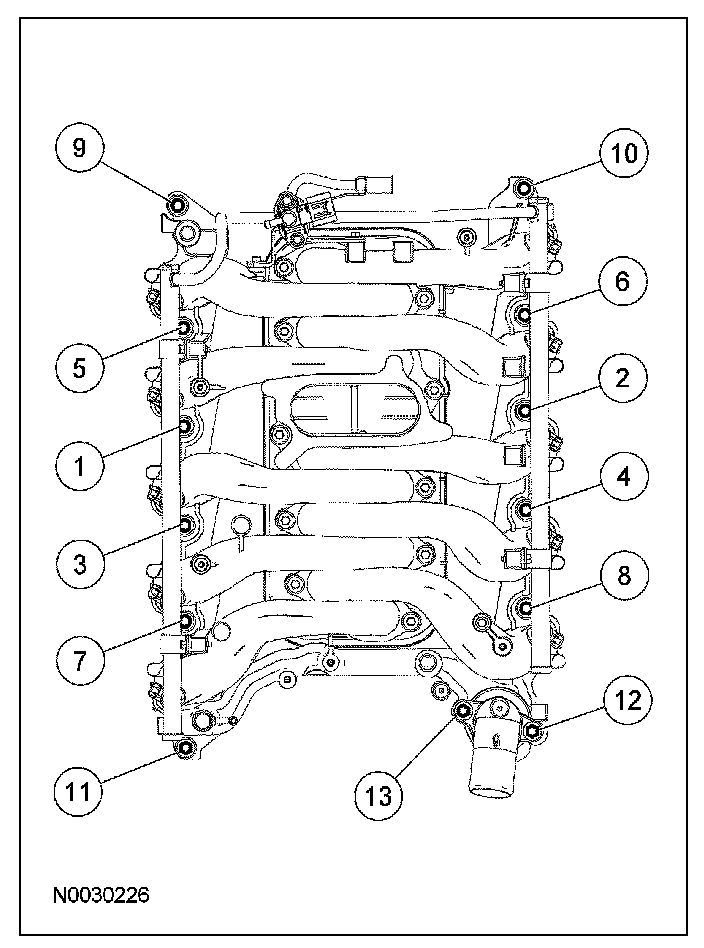

Upper To Lower Intake Manifold Bolts
Stage 1 2 Nm (18 lb-in).
Stage 2 10 Nm (89 lb-in).





TB & TB Adapter Assembly Bolts
Stage 1 9 Nm (80 lb-in).
Stage 2 Tighten an additional 90°
