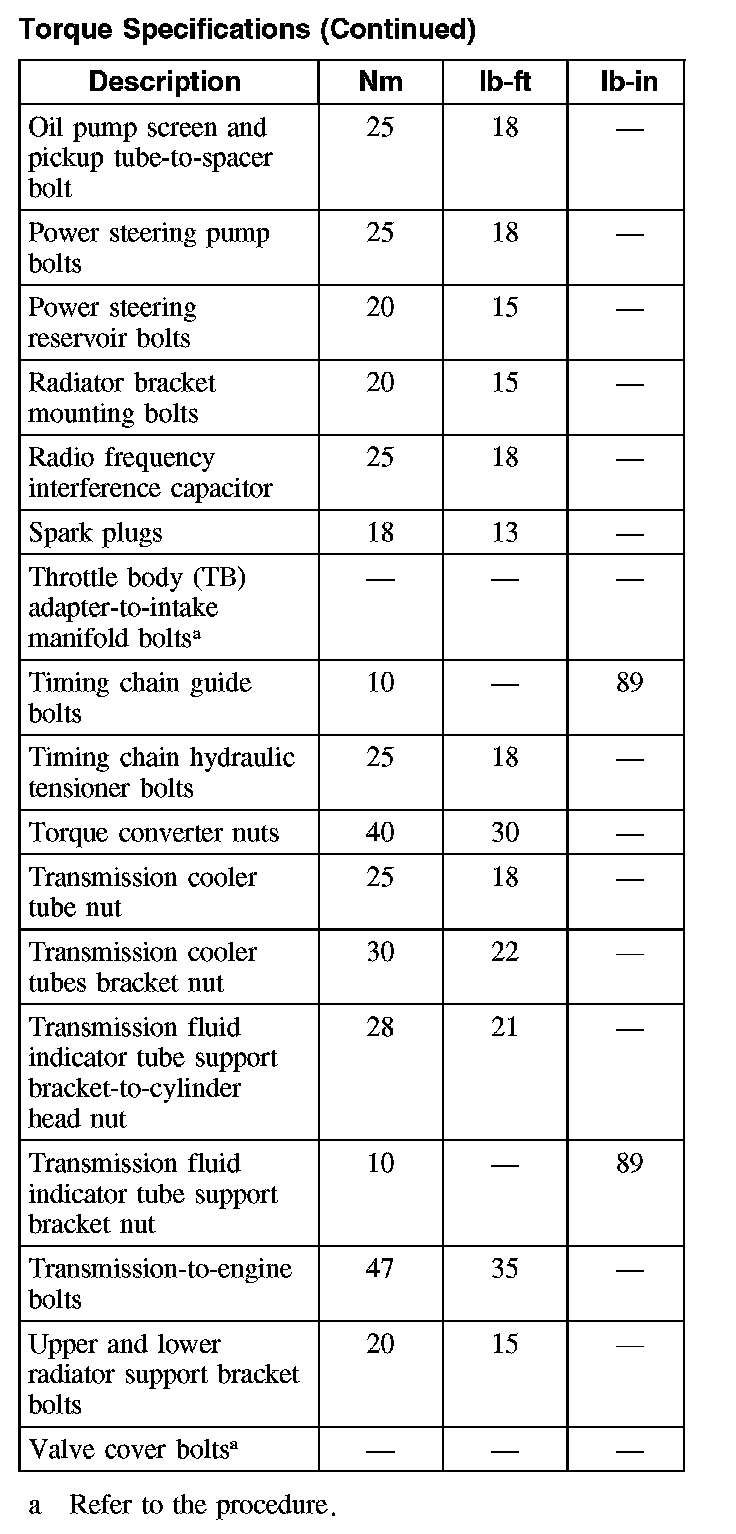

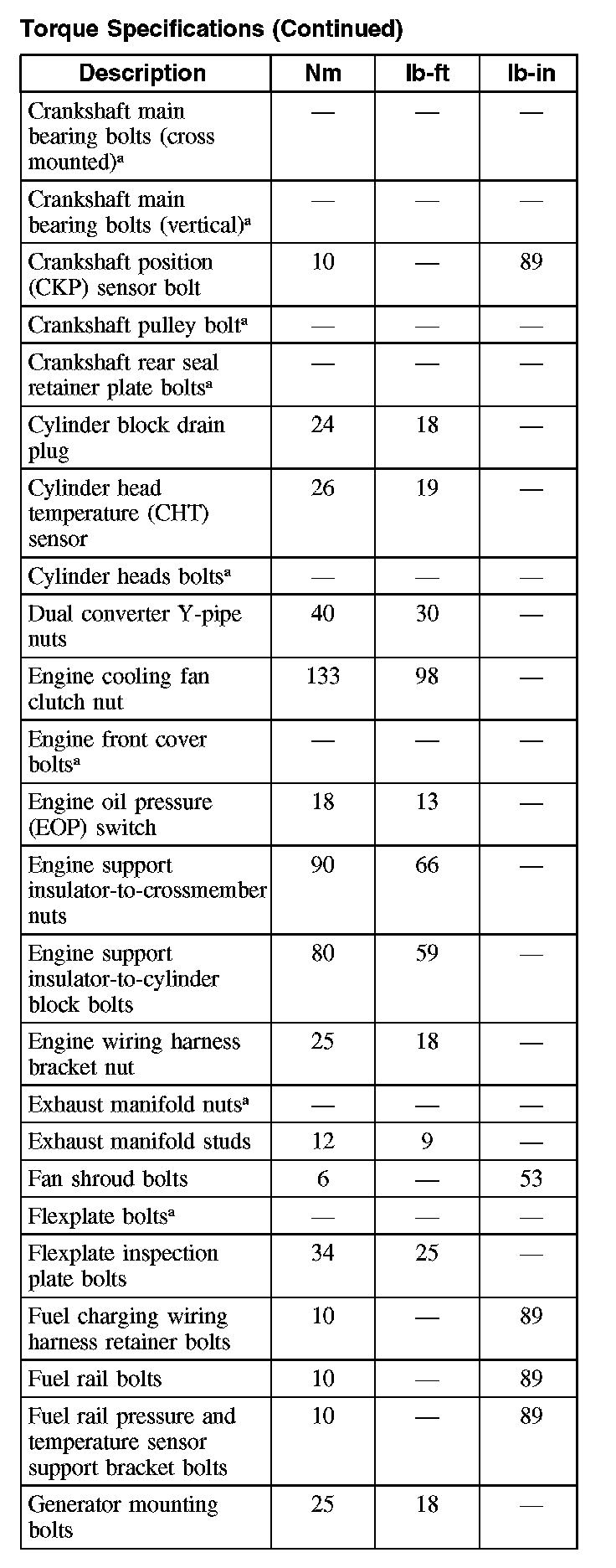

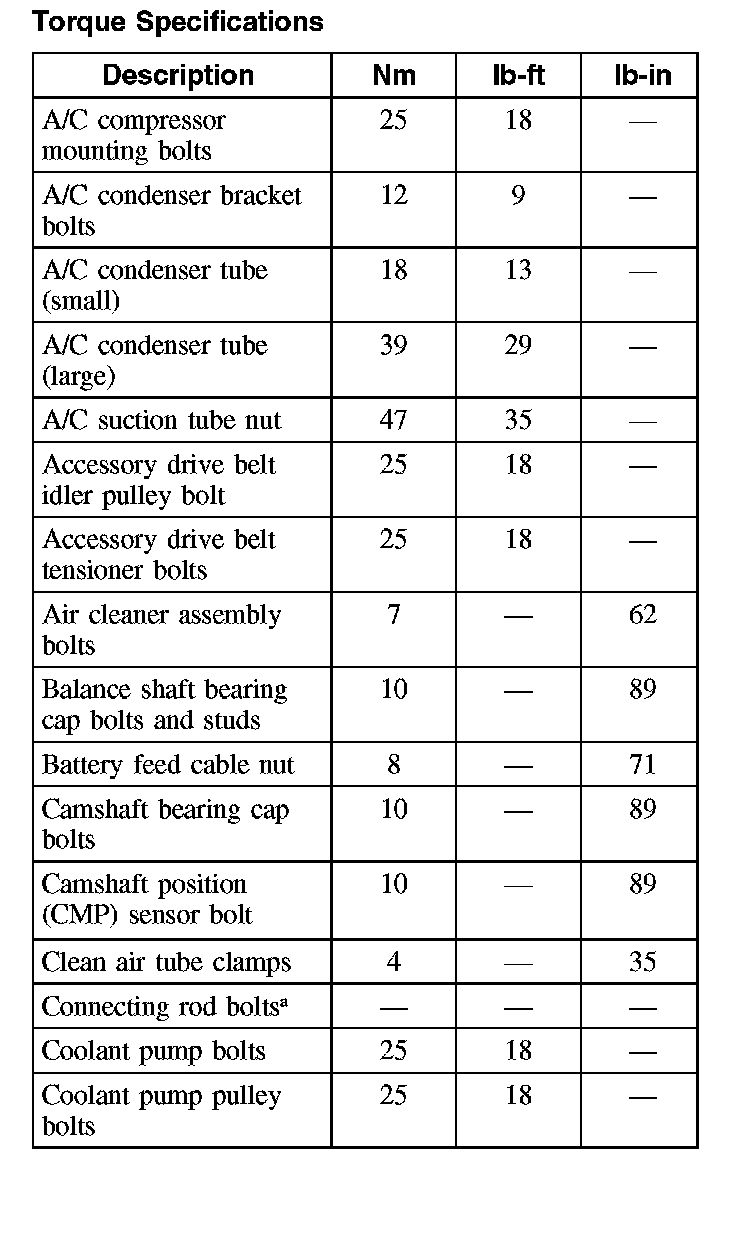

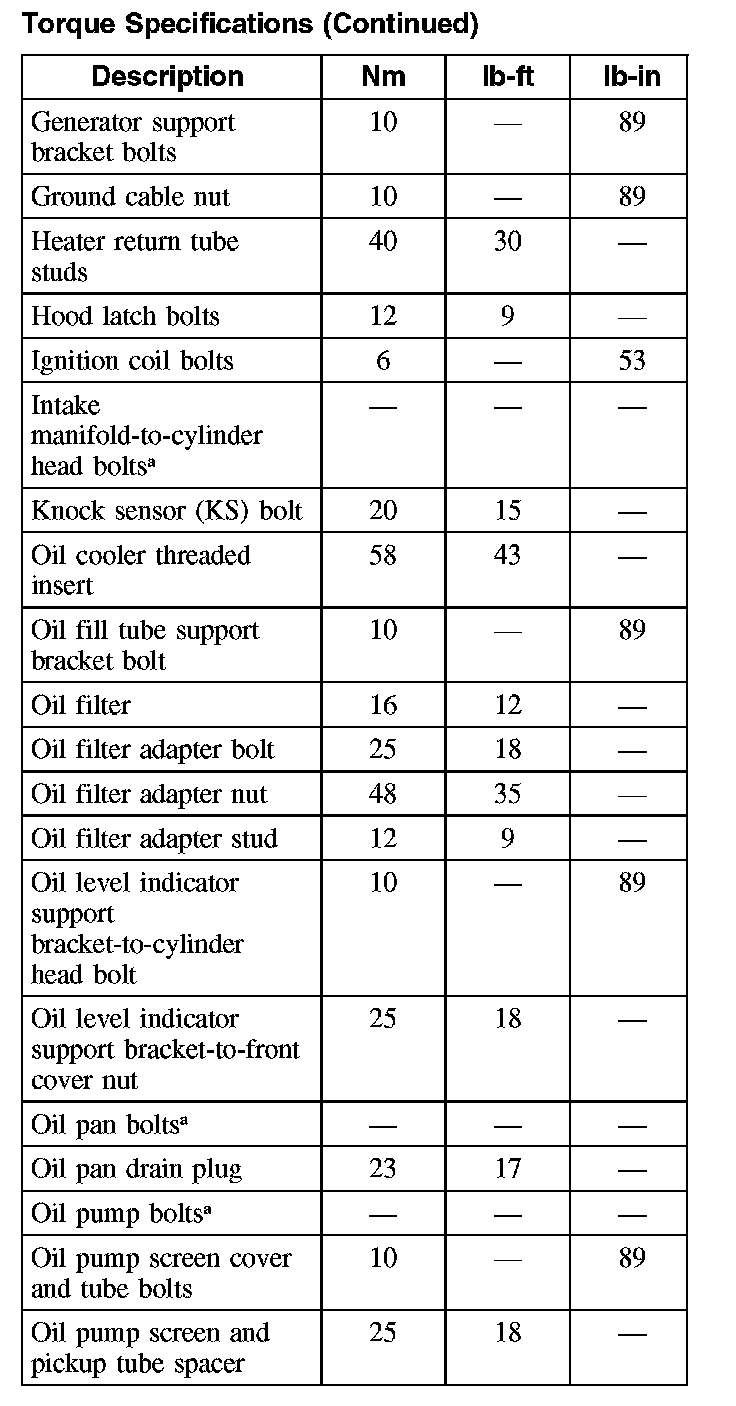

Torque Specifications

Torque Specifications














Cylinder Head Bolts
The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused. Failure to follow these instructions may result in engine damage.
