Rear Window Defrost Grid Connector

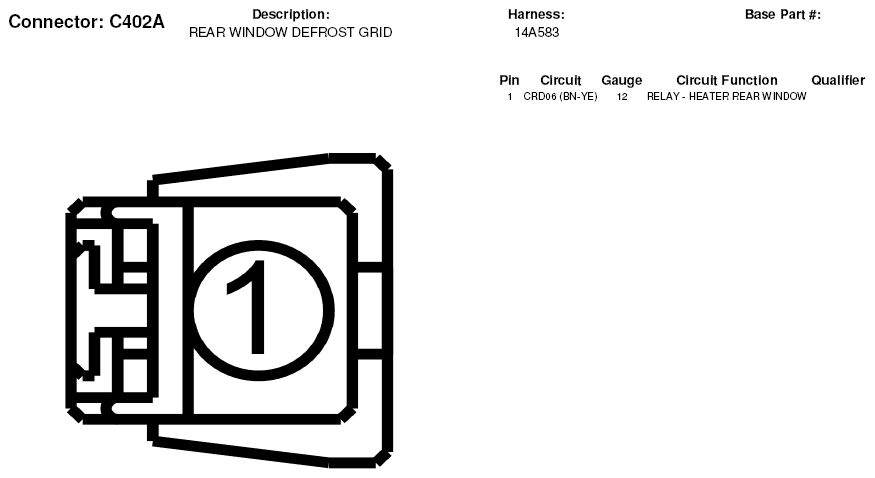

Fig 1: Rear Window Defrost Grid Connector End View (C402A)
G05598890

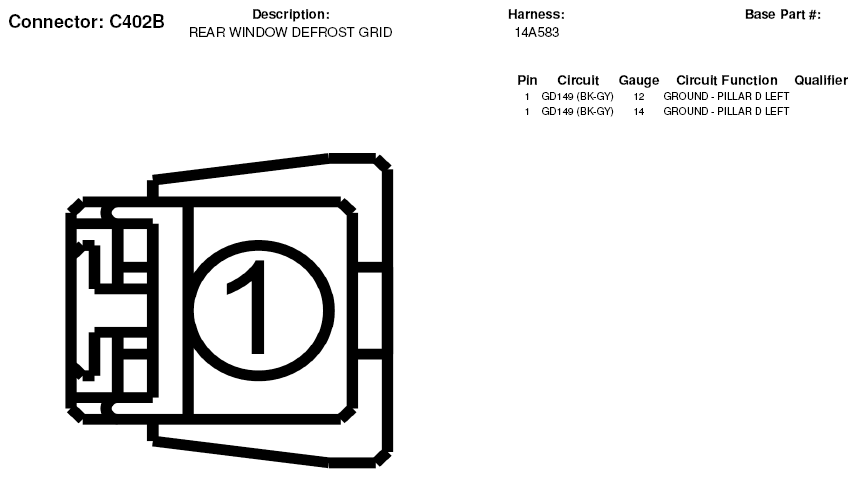

Fig 2: Rear Window Defrost Grid Connector End View (C402B)
G05598891
