Audio Input Jack: Notes

NOTE: Vehicle equipped with SYNC shown, others similar.

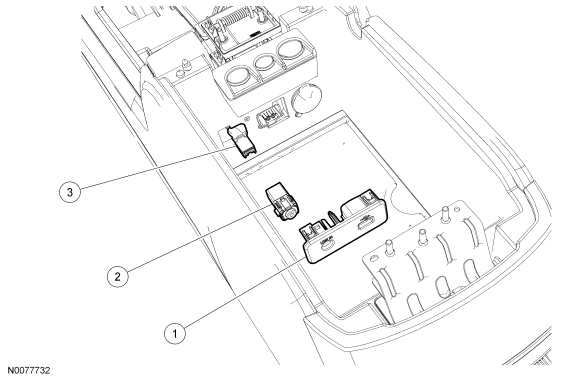

Fig 1: Identifying Audio Input Jack Connectors
GF0044373Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Audio input jack bezel (part of 78045A06)
2 19A164 Audio input jack
3 - Audio input jack electrical connector (part of 14B079)
