Satellite Digital Audio Receiver System (SDARS) Module: Notes

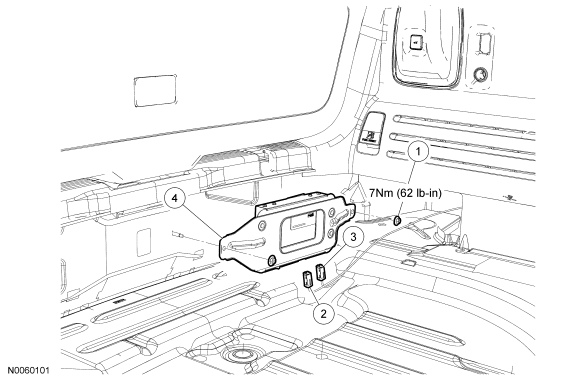

Fig 1: Exploded View Of Satellite Radio Receiver With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707293-S	Satellite digital audio receiver system (SDARS) module nuts (2 required)
2	19A397	Satellite radio antenna connector
3	-	SDARS module electrical connector (part of 14A005)
4	18C960	SDARS module
