Left Front Heated Seat Element Connector

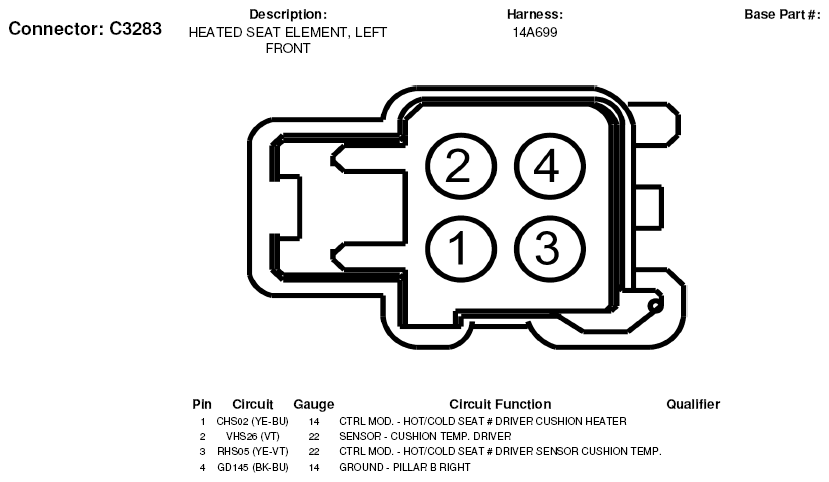

Fig 1: Left Front Heated Seat Element Connector End View (C3283)
