Driver Side Climate Controlled Seat Backrest Module Connector

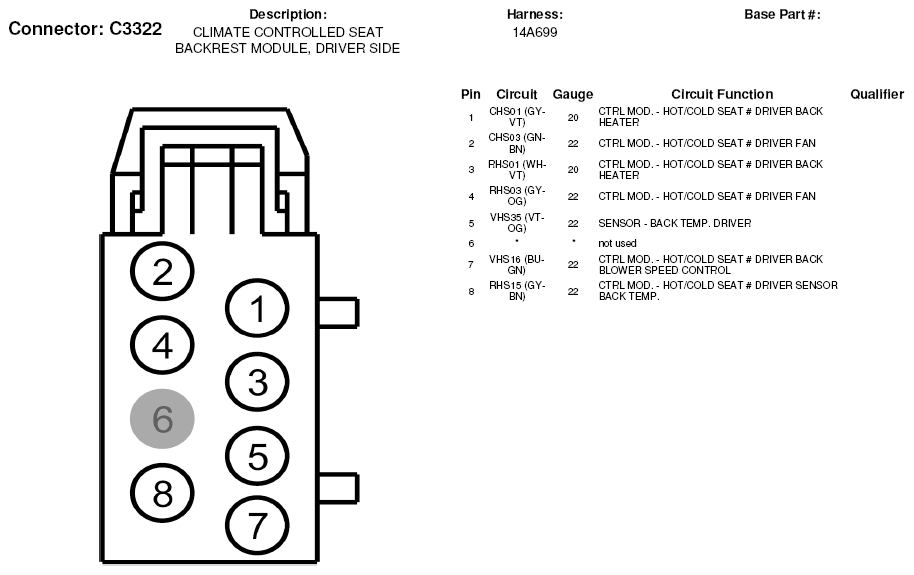

Fig 1: Driver Side Climate Controlled Seat Backrest Module Connector End View (C3322)
G05599059
