Dual Climate Controlled Seat Module Connector

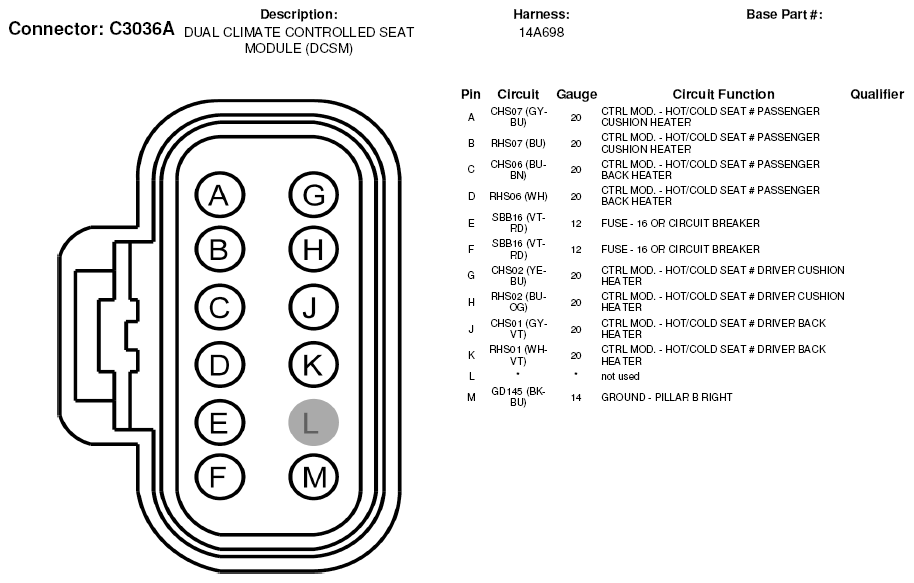

Fig 1: Dual Climate Controlled Seat Module Connector End View (C3036A)
G05599028
Fig 2: Dual Climate Controlled Seat Module Connector End View (C3036B)
G05599029

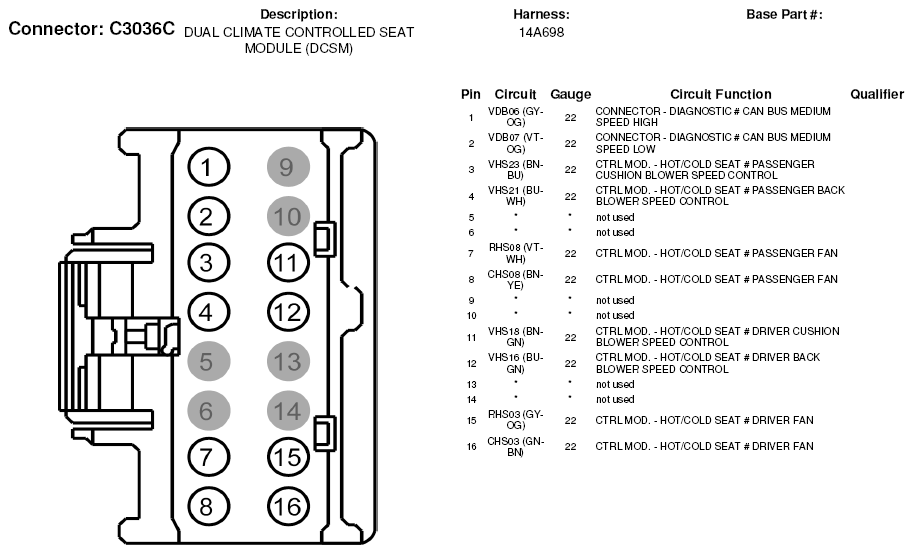

Fig 3: Dual Climate Controlled Seat Module Connector End View (C3036C)
G05599030
