EMTC HVAC Module Connector

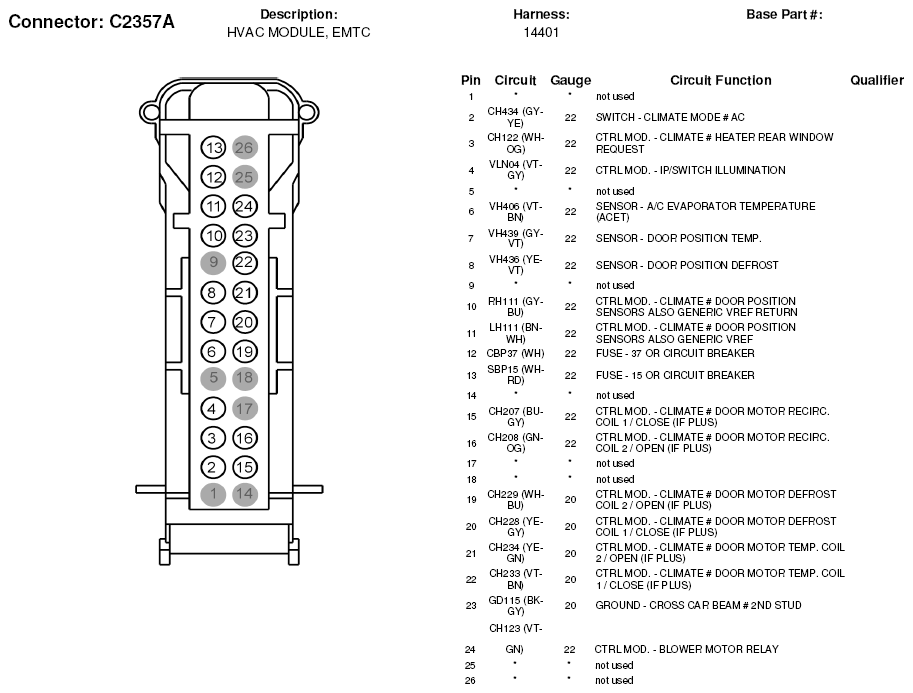

Fig 1: EMTC HVAC Module Connector End View (C2357A)

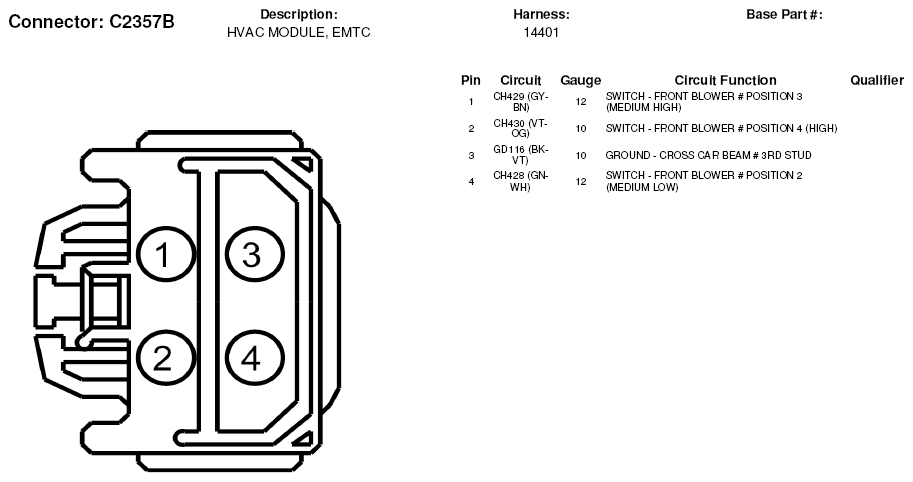

Fig 2: EMTC HVAC Module Connector End View (C2357B)
