Generator Connectors

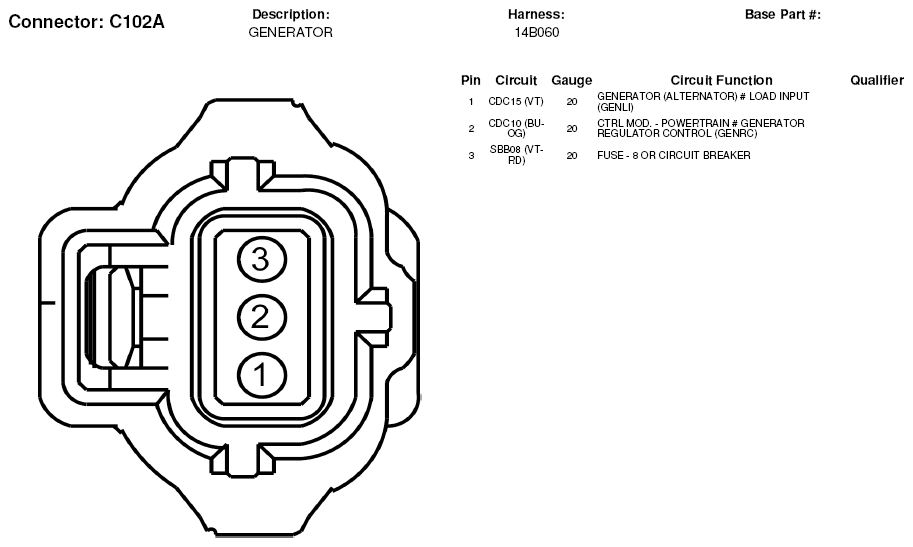

Fig 1: Generator Connector End View (C102A)

G05598775

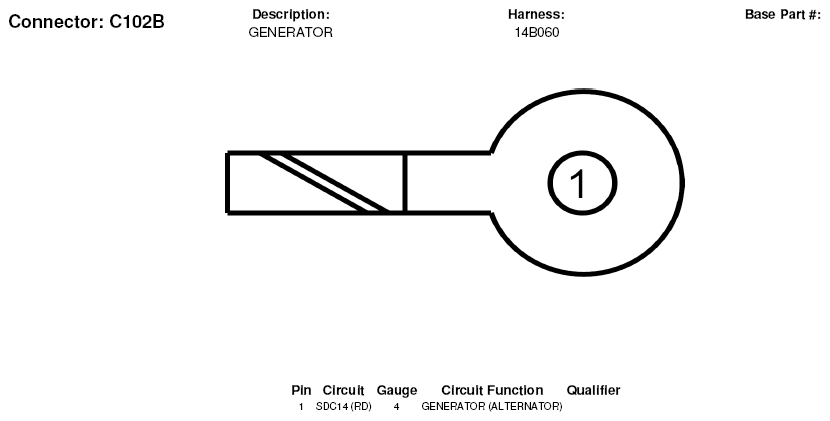

Fig 2: Generator Connector End View (C102B)

G05598776
