Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector Views
>>
Inline Connector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Inline Connector

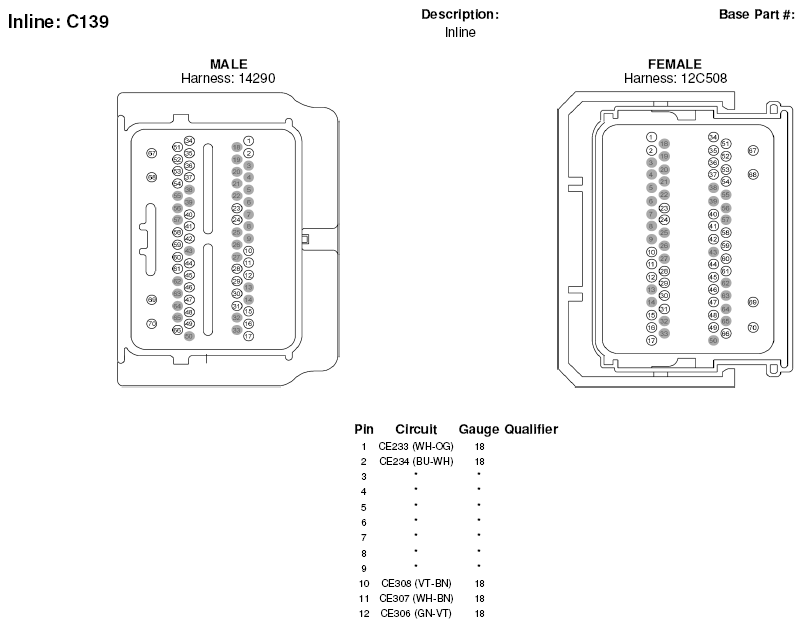

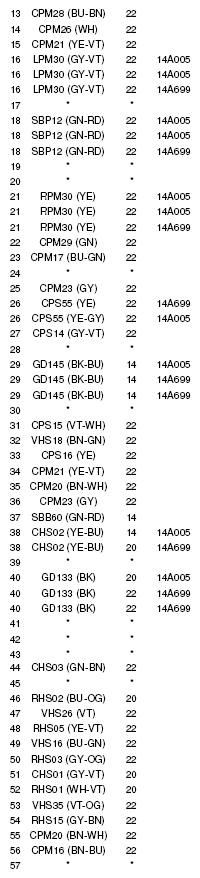

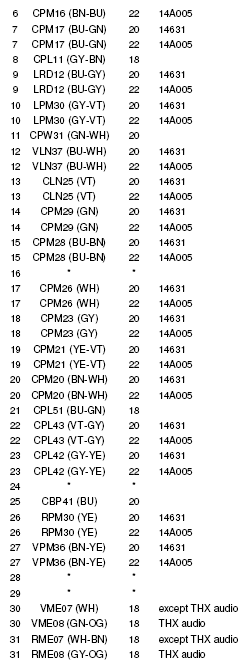

Fig 1: Inline (1 Of 2) Connector End View (C139) (1 Of 2)

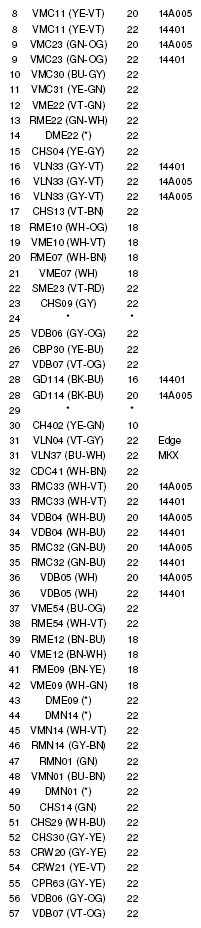

Fig 2: Inline (2 Of 2) Connector End View (C139) (2 Of 2)

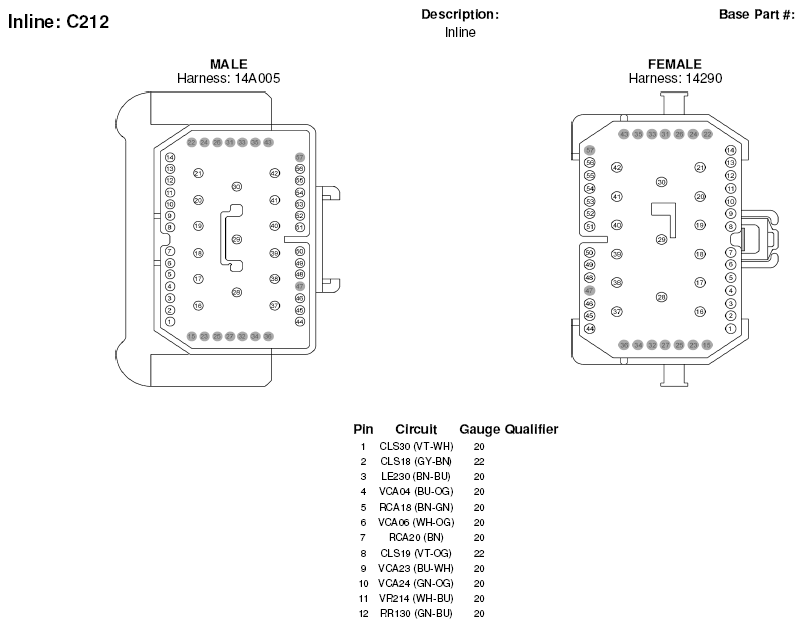

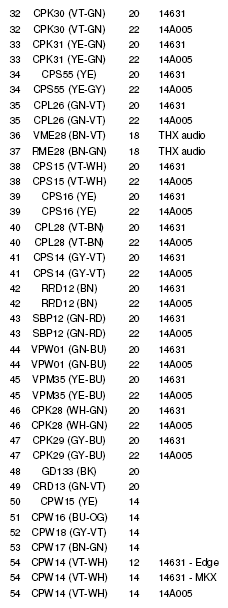

Fig 3: Inline (1 Of 2) Connector End View (C212) (1 Of 2)
Fig 4: Inline (2 Of 2) Connector End View (C212) (2 Of 2)

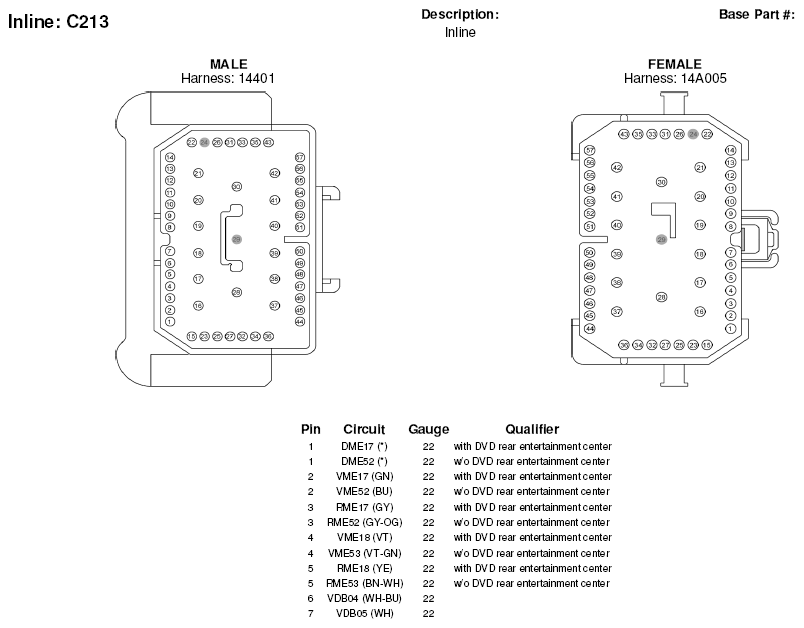

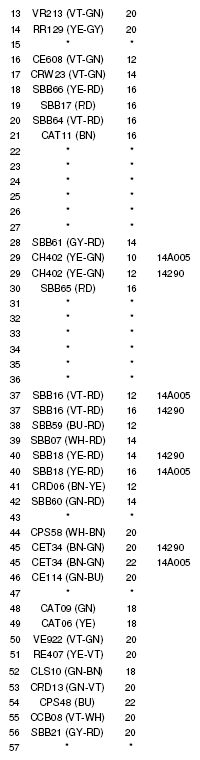

Fig 5: Inline (1 Of 2) Connector End View (C213) (1 Of 2)
Fig 6: Inline (2 Of 2) Connector End View (C213) (2 Of 2)

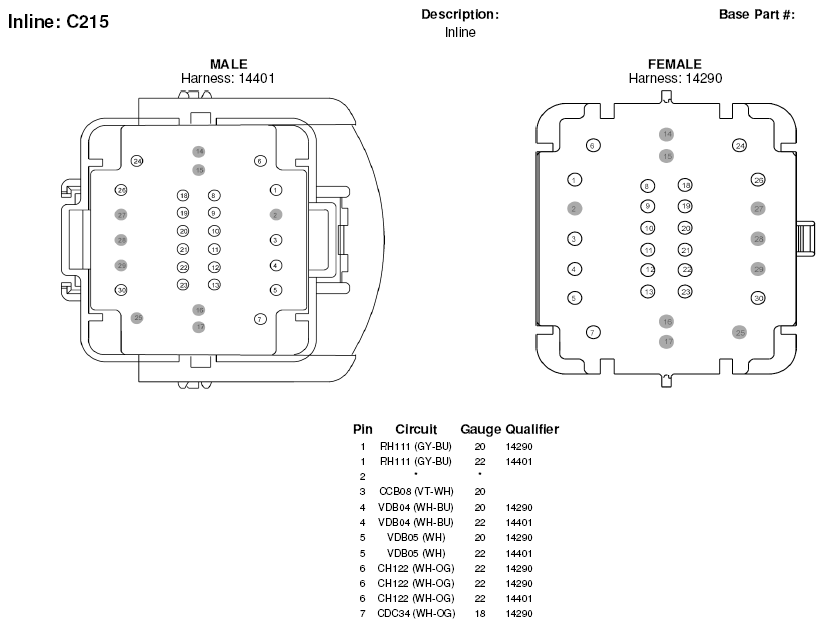

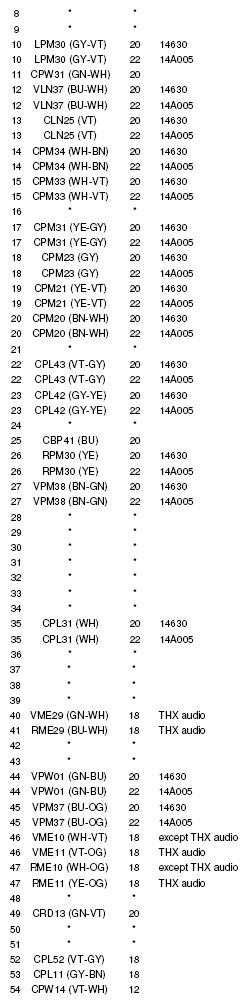

Fig 7: Inline (1 Of 2) Connector End View (C215) (1 Of 2)
Fig 8: Inline (2 Of 2) Connector End View (C215) (2 Of 2)

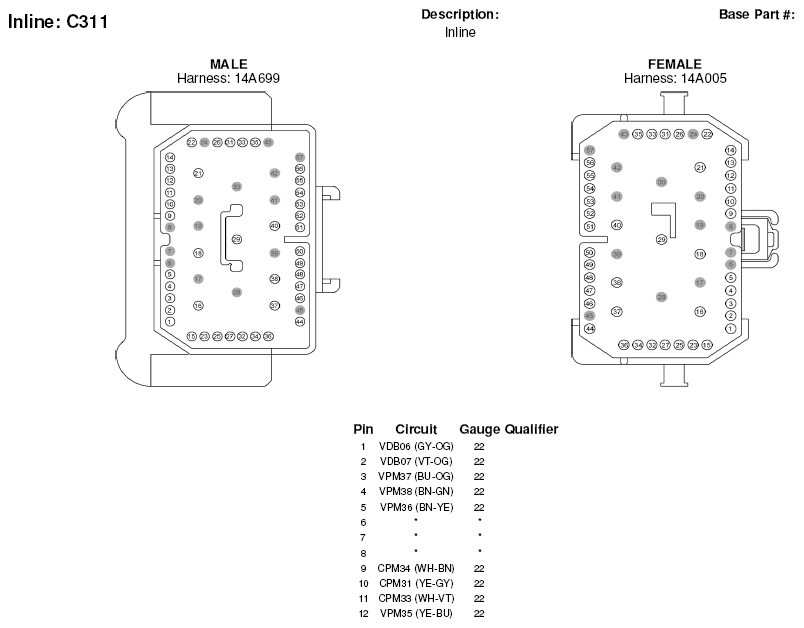

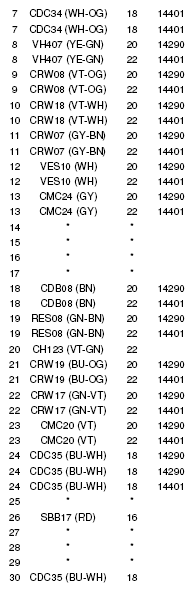

Fig 9: Inline (1 Of 2) Connector End View (C311) (1 Of 2)

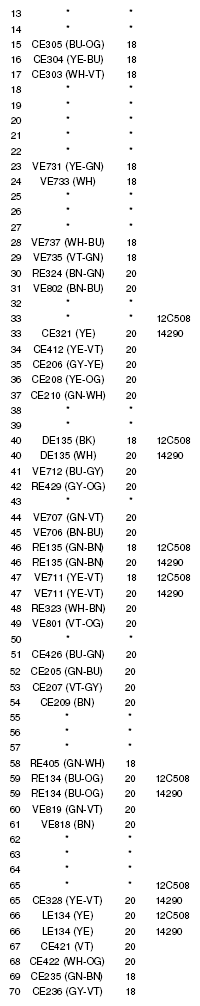

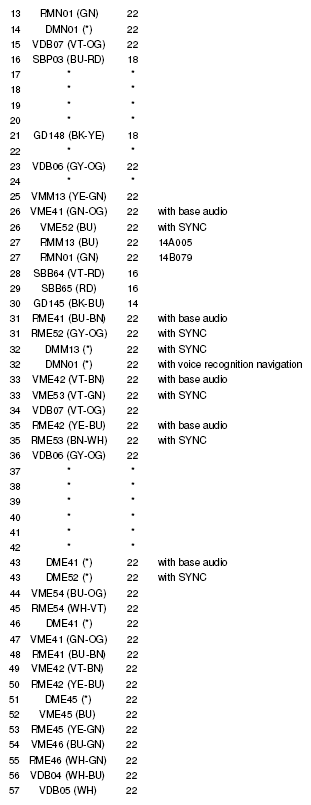

Fig 10: Inline (2 Of 2) Connector End View (C311) (2 Of 2)

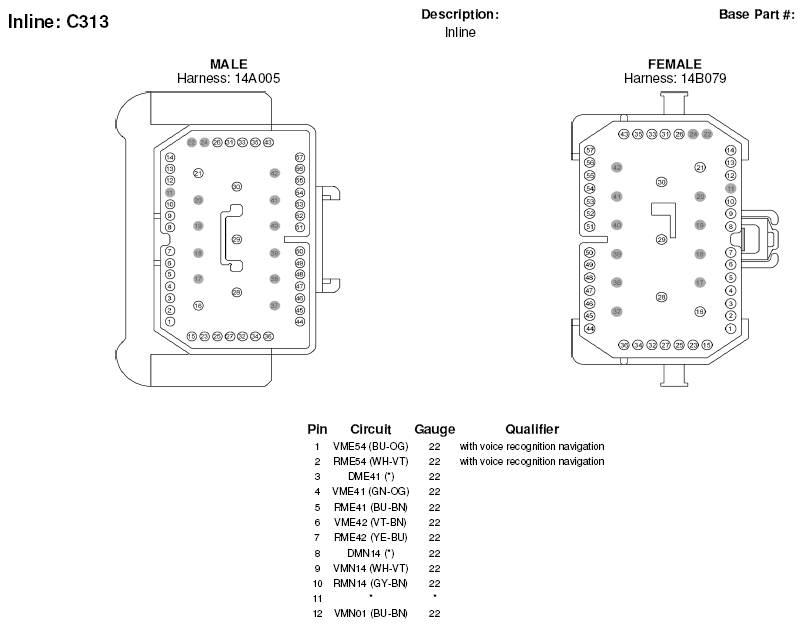

Fig 11: Inline (1 Of 2) Connector End View (C313) (1 Of 2)
Fig 12: Inline (2 Of 2) Connector End View (C313) (2 Of 2)

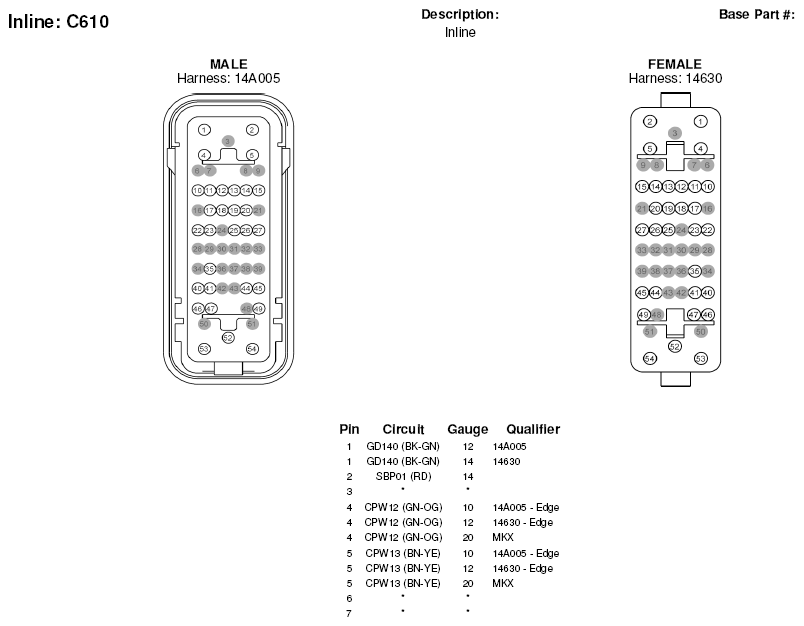

Fig 13: Inline (1 Of 2) Connector End View (C610) (1 Of 2)
Fig 14: Inline (2 Of 2) Connector End View (C610) (2 Of 2)

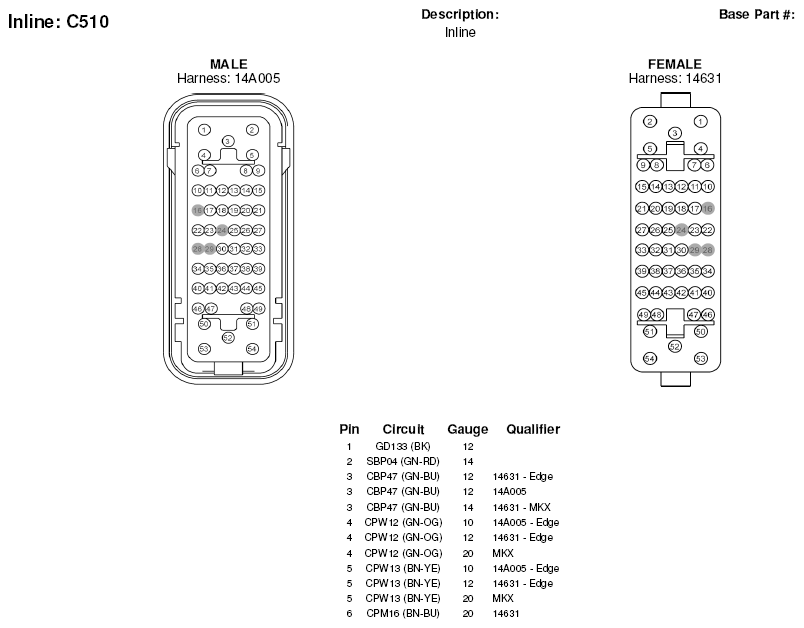

Fig 1: Inline (1 Of 3) Connector End View (C510) (1 Of 3)
Fig 2: Inline (2 Of 3) Connector End View (C510) (2 Of 3)
Fig 3: Inline (3 Of 3) Connector End View (C510) (3 Of 3)
