Oil Pan, Engine

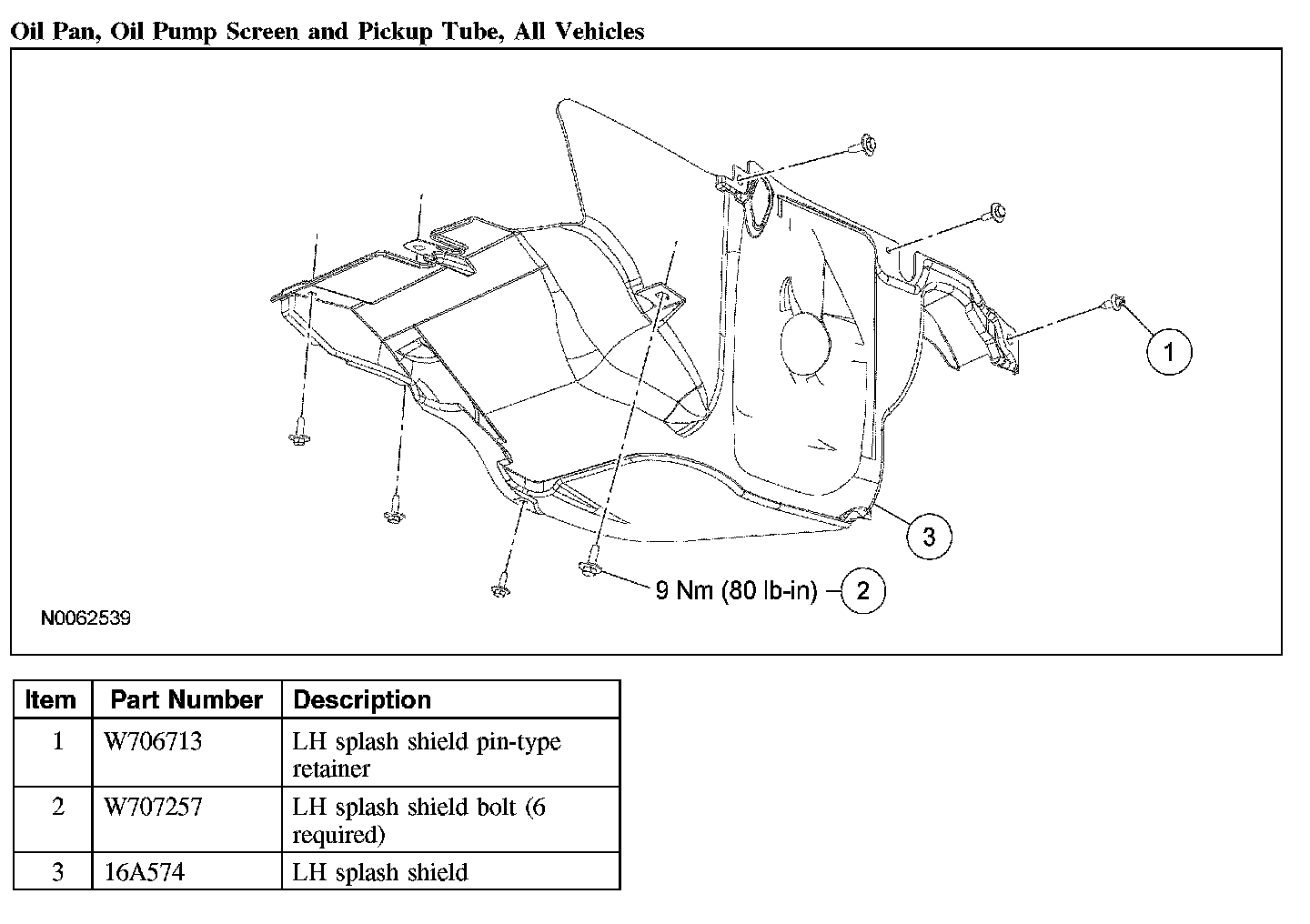

Oil Pan, Oil Pump Screen and Pickup Tube, All Vehicles:

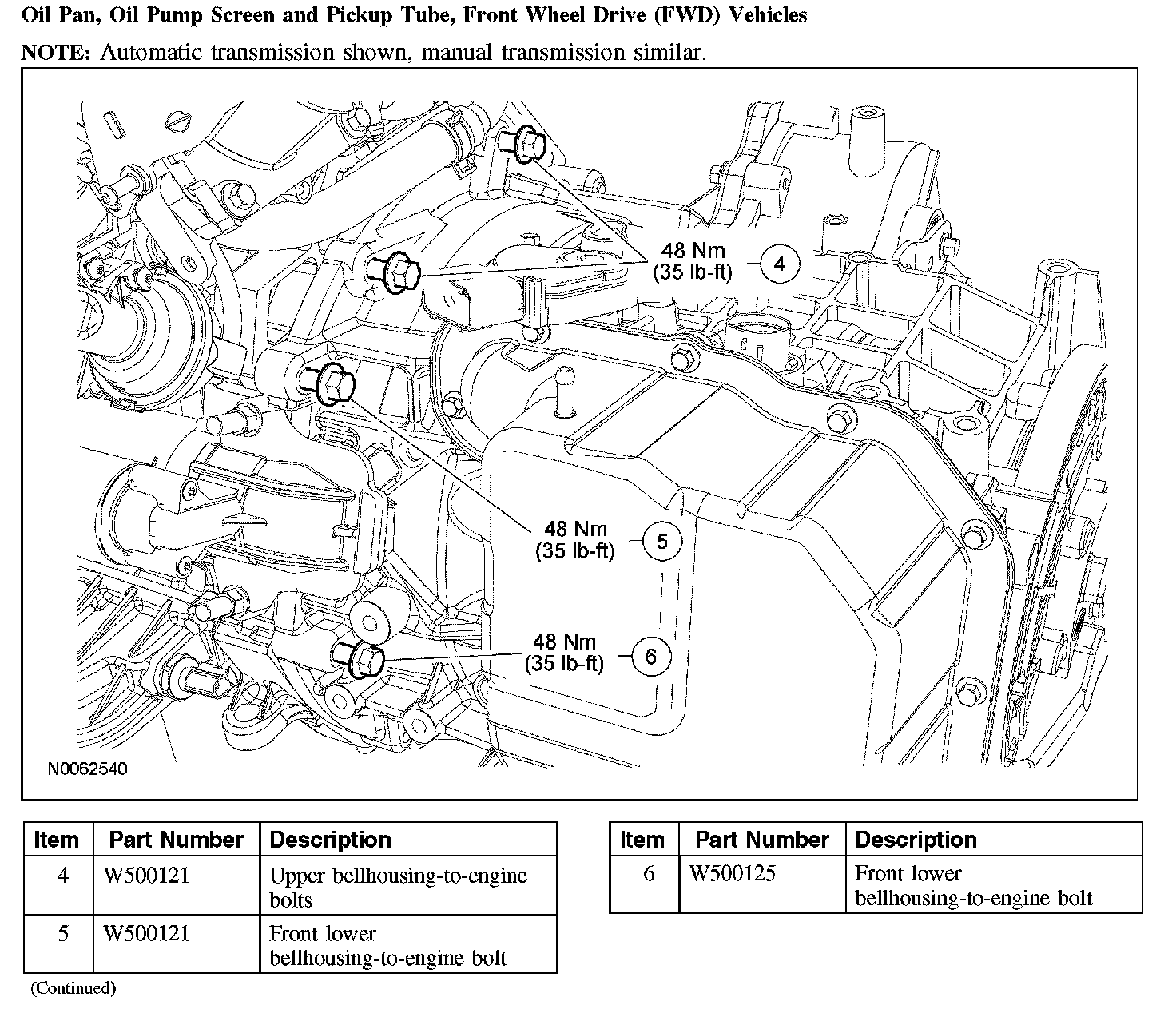

Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheel Drive (FWD) Vehicles:

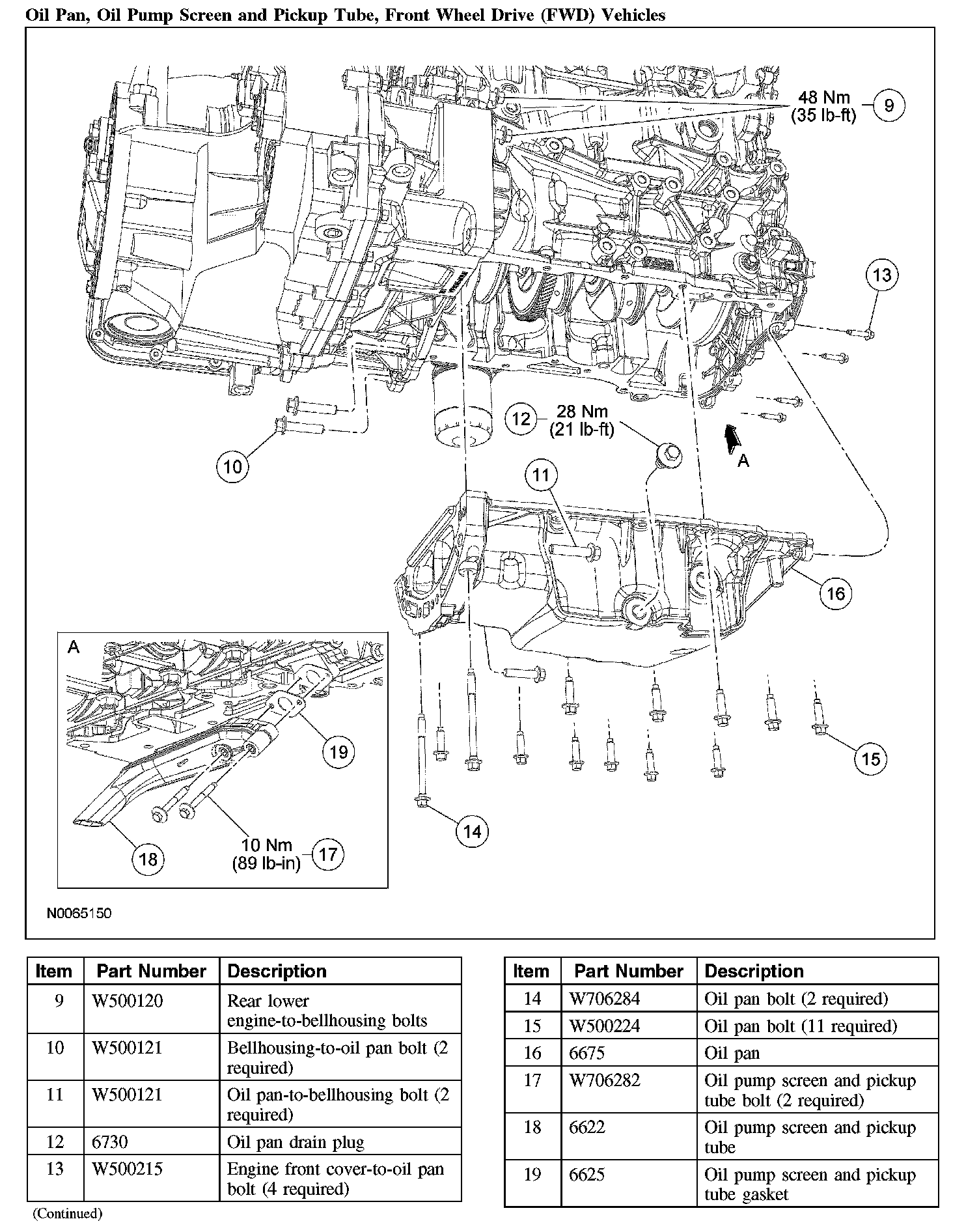

Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheel Drive (FWD) Vehicles:
