Drive Belt

Front End Accessory Drive (FEAD) - Exploded View

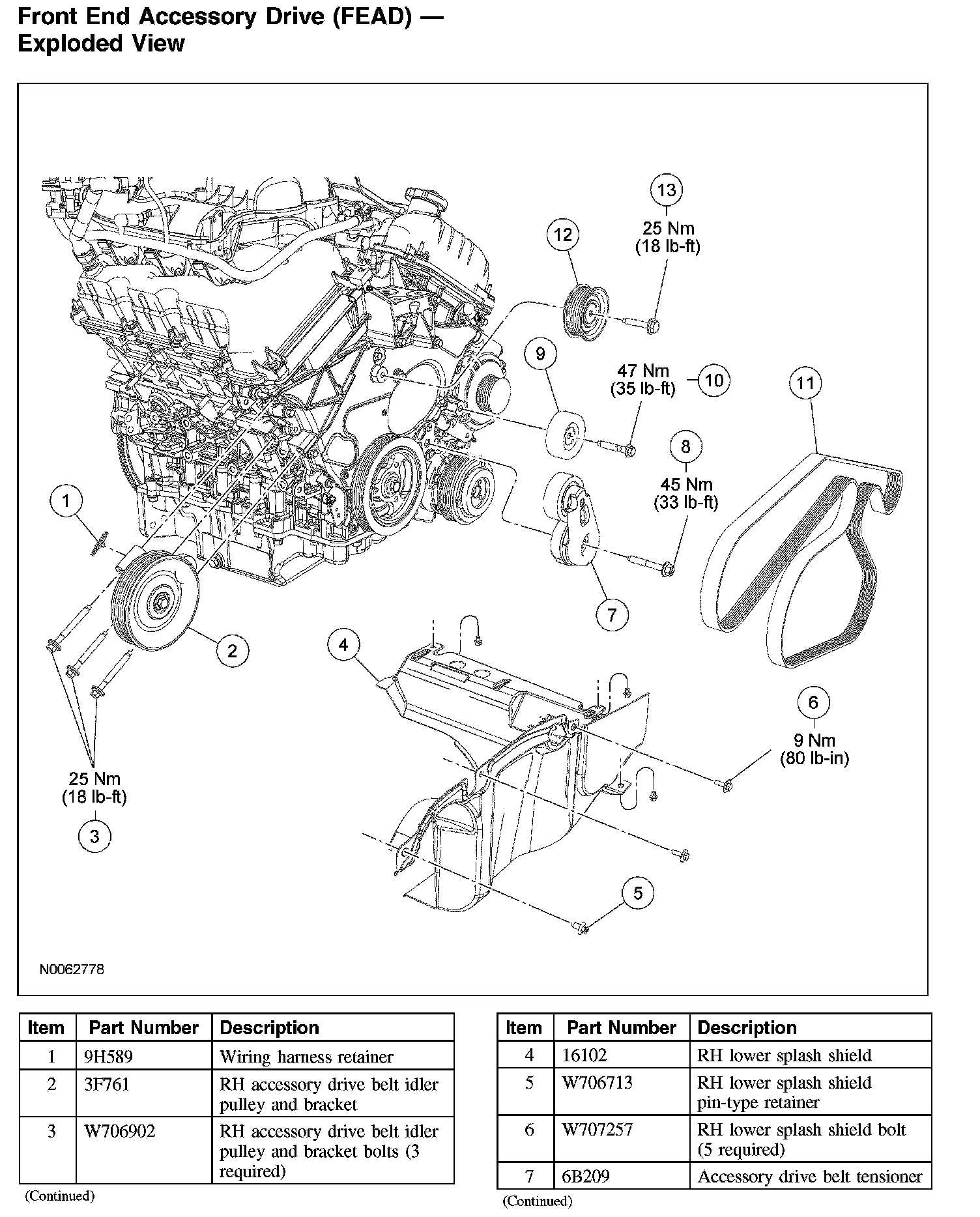

Front End Accessory Drive (FEAD) - Exploded View (Part 1):

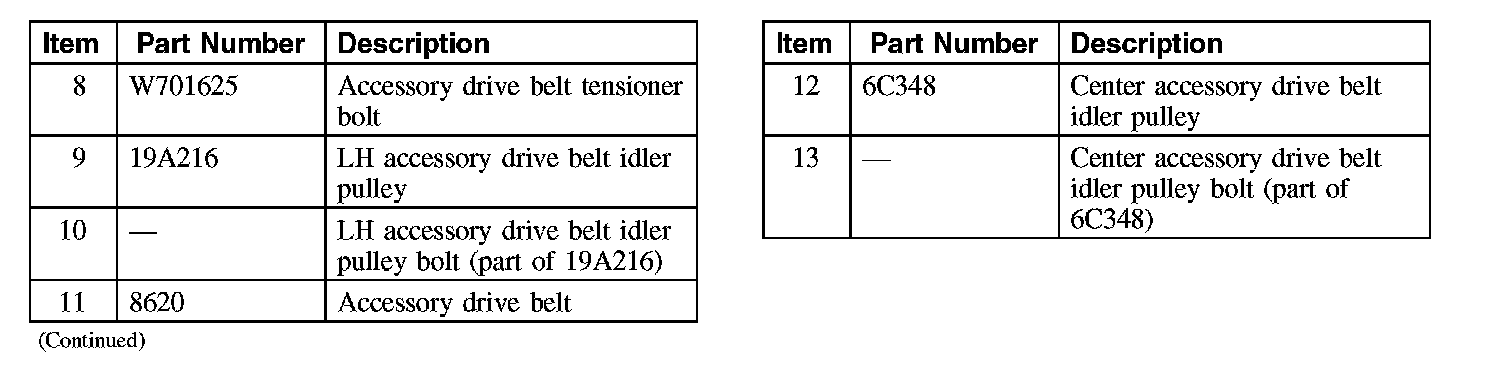

Front End Accessory Drive (FEAD) - Exploded View (Part 2):
