Brake Switch (Cruise Control): Service and Repair

SPEED CONTROL DEACTIVATOR SWITCH







Removal and Installation

CAUTION: Do not service the brake pedal, brake booster, or master cylinder without first removing the speed control deactivator switch. Do not press or pull on the brake pedal when installing or removing the speed control deactivator switch otherwise misadjustment or damage to the switch may occur. Do not install the speed control deactivator switch without the brake pedal arm secured to the brake booster push rod.

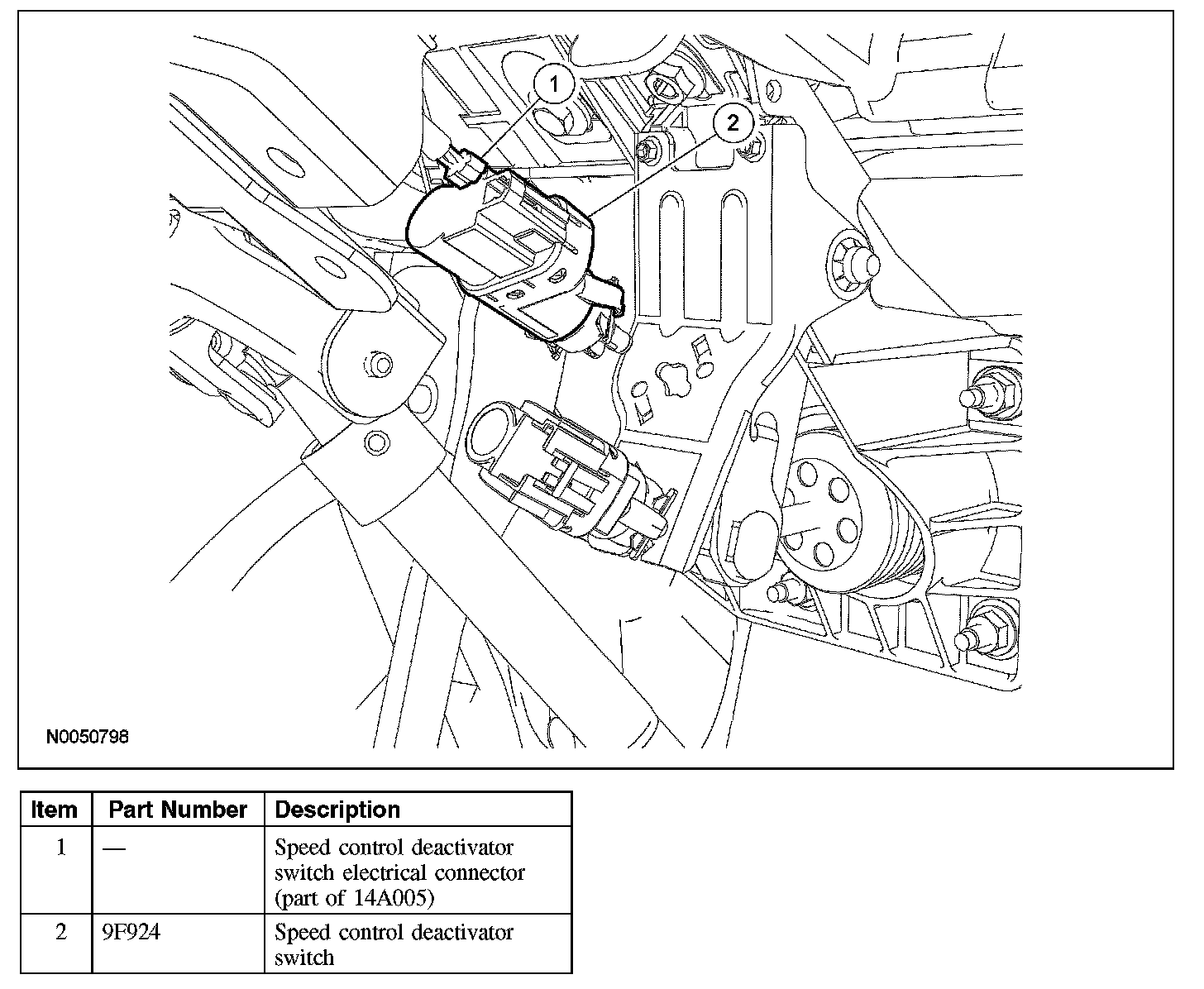

1. Disconnect the electrical connector.
2. Rotate the speed control deactivator switch 45 degrees counterclockwise to disengage it from the bracket.
3. To install, reverse the removal procedure.
