Power Steering Control Module Connector End View (C2231A)

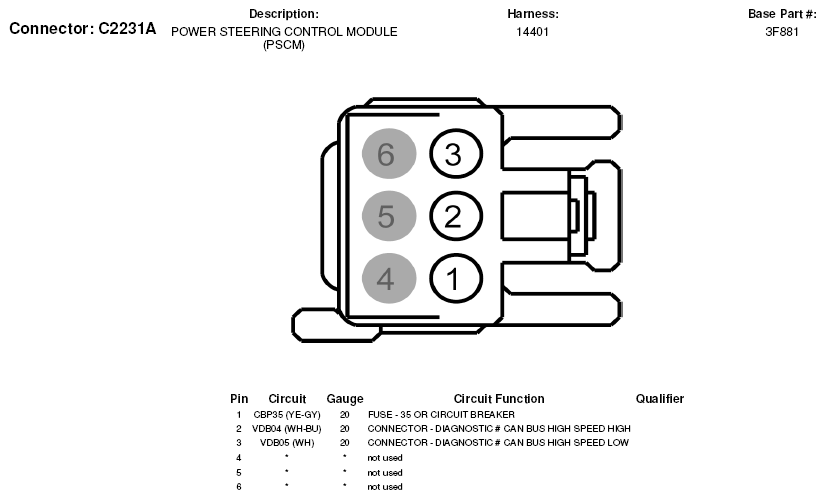

Fig 1: Power Steering Control Module Connector End View (C2231A)
