Camshaft Position (CMP) Sensor

The CMP sensor detects the position of the camshaft. The CMP sensor identifies when piston number 1 is on its compression stroke. A signal is then sent to the PCM and used for synchronizing the sequential firing of the fuel injectors. Coil on plug (COP) ignition applications use the CMP signal to select the correct ignition coil to fire.

Vehicles with 2 CMP sensors are equipped with variable camshaft timing (VCT). They use the second sensor to identify the position of the camshaft on bank 2 as an input to the PCM.

There are 2 types of CMP sensors: the 3-pin connector Hall-effect type sensor and the 2-pin connector variable reluctance type sensor.

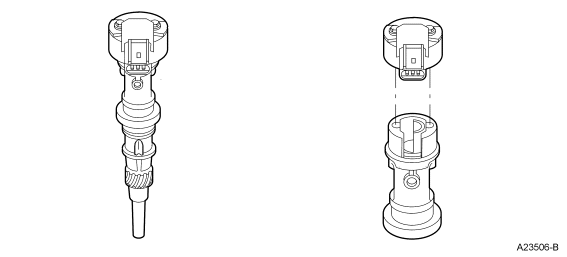

Fig 1: Typical Synchronizer Hall-Effect CMP Sensor
